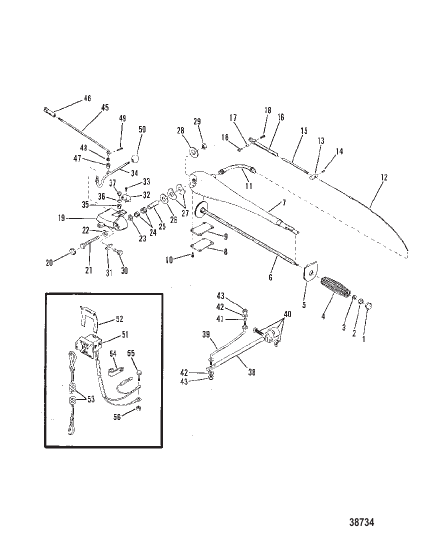

STEERING HANDLE
Parts (61)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 48416 |
ПРОБКА STEERING HANDLE GRIP CAP STEERING HANDLE GRIP |
1 | |
| 10 | 28192 |
ВИНТ (№10-24 x 0.50) DRIVE WHEEL SCREW (#10-24 x .50) DRIVE WHEEL |
3 | superseded |
| 11 | 785512 |
КАБЕЛЕПРОВОД CABLE CONDUIT CABLE |
1 | superseded |
| 12 | 48520 |
КАБЕЛЬ Дроссельная заслонка CABLE Throttle |
1 | |
| 13 | 89578 |
ДИФФУЗОР CONTROL LINKAGE BARREL CONTROL LINKAGE |
1 | |
| 14 | 89601 |
ВИНТ SET-THROTTLE CABLE GUIDE TUBE SCREW SET-THROTTLE CABLE GUIDE TUBE |
1 | superseded |
| 15 | 895661 |
НАПРАВЛЯЮЩАЯ ТРУБКА THROTTLE CABLE GUIDE GUIDE TUBE THROTTLE CABLE GUIDE |
1 | superseded |
| 16 | 43433 |
НАПРАВЛЯЮЩАЯ THROTTLE CABLE GUIDE THROTTLE CABLE |
1 | superseded |
| 17 | 20007 |
АНКЕР THROTTLE CABLE ANCHOR THROTTLE CABLE |
1 | |
| 18 | 20518 |
УСТАНОВОЧНЫЙ ВИНТ (№8-32) THROTTLE CABLE ANCHOR SET SCREW (#8-32) THROTTLE CABLE ANCHOR |
2 | superseded |
| 19 | 48404T1 |
BRACKET STEERING HANDLE BRACKET STEERING HANDLE |
1 | superseded |
| 2 | 35045 |
ГАЙКА (0.250-28) STEERING HANDLE ARM NUT (.250-28) STEERING HANDLE ARM |
1 | superseded |
| 20 | 48416 |
ПРОБКА STEERING HANDLE BRACKET CAP STEERING HANDLE BRACKET |
1 | |
| 21 | 48476 |
ВИНТ STEERING HANDLE BRACKET SCREW STEERING HANDLE BRACKET |
1 | superseded |
| 22 | 48477 |
ШАЙБА STEERING HANDLE BRACKET (.505 I.D.) WASHER STEERING HANDLE BRACKET (.505 I.D.) |
1 | discontinued |
| 23 | 48526 |
ШАЙБА NYLON-HANDLE BRACKET (.630-I.D.) WASHER NYLON-HANDLE BRACKET (.630-I.D.) |
1 | discontinued |
| 24 | 28919 |
ВТУЛКА NYLON-HANDLE BRACKET (5/8" I.D.) BUSHING NYLON-HANDLE BRACKET (5/8" I.D.) |
2 | discontinued |
| 25 | 48525 |
ПРОСТАВКА STEERING HANDLE BRACKET SPACER STEERING HANDLE BRACKET |
1 | discontinued |
| 26 | 48527 |
ШАЙБА NYLON (1-35/64" O.D.) WASHER NYLON (1-35/64" O.D.) |
1 | superseded |
| 27 | 48478 |
ВОЛНИСТАЯ ШАЙБА STEERING HANDLE BRACKET WAVE WASHER STEERING HANDLE BRACKET |
2 | discontinued |
| 28 | 49636 |
ШАЙБА NYLON-HANDLE BRACKET (1-3/4" O.D.) WASHER NYLON-HANDLE BRACKET (1-3/4" O.D.) |
1 | discontinued |
| 29 | 20220 |
ГАЙКА (.500-20) STEERING HANDLE BRACKET SCREW NUT (.500-20) STEERING HANDLE BRACKET SCREW |
1 | superseded |
| 3 | 21631 |
ШАЙБА (0.255 x 0.625 x 0.0312) STEERING HANDLE ARM WASHER (.255 x .625 x .0312) STEERING HANDLE ARM |
1 | superseded |
| 30 | 35786 |
ВИНТ (0.375-24 x 1.00) BRACKET TO ENGINE SCREW (.375-24 x 1.00) BRACKET TO ENGINE |
2 | |
| 31 | 43589 |
ЛЕПЕСТКОВАЯ ШАЙБА BRACKET SCREW TAB WASHER BRACKET SCREW |
2 | discontinued |
| 32 | 78812A1 |
ФИКСАТОР SHIFT LEVER DETENT SHIFT LEVER |
1 | discontinued |
| 33 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
2 | |
| 34 | 485681 |
РЫЧАГ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT LEVVER |
1 | discontinued |
| 35 | 48237 |
ВТУЛКА NYLON-SHIFT LEVER (3/8" I.D.) BUSHING NYLON-SHIFT LEVER (3/8" I.D.) |
1 | |
| 36 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь SHIFT LEVER WASHER (.406 x .734 x .063) Stainless Steel SHIFT LEVER |
1 | |
| 37 | 34863 |
ГАЙКА (.375-24) SHIFT LEVER NUT (.375-24) SHIFT LEVER |
1 | superseded |
| 38 | 52148 |
НАПРАВЛЯЮЩИЙ ШТОК (SHORT SHAFT) PILOT ROD (SHORT SHAFT) |
1 | discontinued |
| 38 | 52148 |
НАПРАВЛЯЮЩИЙ ШТОК (LONG SHAFT) [0C159200] & Up PILOT ROD (LONG SHAFT) [0C159200] & Up |
1 | discontinued |
| 39 | 87349 |
СТЕРЖЕНЬ ТЯГИ (SHORT SHAFT) LINK ROD (SHORT SHAFT) |
1 | discontinued |
| 39 | 52150 |
ШТОК (LONG SHAFT) [0C159200] & Up ROD (LONG SHAFT) [0C159200] & Up |
1 | discontinued |
| 4 | 58192A1 |
РУКОЯТКА STEERING HANDLE ARM GRIP STEERING HANDLE ARM |
1 | discontinued |
| 40 | 52155A1 |
ГАЙКА В СБОРЕ (SHORT SHAFT) NUT ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| 40 | 52155A1 |
ГАЙКА В СБОРЕ (LONG SHAFT) [0C159200] & Up NUT ASSEMBLY (LONG SHAFT) [0C159200] & Up |
1 | discontinued |
| 41 | 52151 |
ВТУЛКА (SHORT SHAFT) BUSHING (SHORT SHAFT) |
1 | superseded |
| 41 | 52151 |
ВТУЛКА (LONG SHAFT) [0C159200] & Up BUSHING (LONG SHAFT) [0C159200] & Up |
1 | superseded |
| 42 | 20722 |
ШАЙБА (0.328 x 0.625 x 0.060) (SHORT SHAFT) WASHER (.328 x .625 x .060) (SHORT SHAFT) |
2 | discontinued |
| 42 | 20722 |
ШАЙБА (0.328 x 0.625 x 0.060) (LONG SHAFT) [0C159200] & Up WASHER (.328 x .625 x .060) (LONG SHAFT) [0C159200] & Up |
2 | discontinued |
| 43 | 45592 |
ГАЙКА (0.312-24) (SHORT SHAFT) NUT (.312-24) (SHORT SHAFT) |
2 | superseded |
| 43 | 45592 |
ГАЙКА (0.312-24) (LONG SHAFT) [0C159200] & Up NUT (.312-24) (LONG SHAFT) [0C159200] & Up |
2 | superseded |
| 45 | 49563 |
ШТОК ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT ROD |
1 | superseded |
| 46 | 48419 |
КОНЦЕВАЯ ЧАСТЬ ТЯГИ SHIFT ROD ROD END SHIFT ROD |
1 | superseded |
| 47 | 48475 |
ВТУЛКА (1/4" I.D.) BUSHING (1/4" I.D.) |
1 | |
| 48 | 35950 |
ШАЙБА (0.273 x 0.437 x 0.031), нержавеющая сталь WASHER (.273 x .437 x .031) Stainless Steel |
1 | |
| 49 | 25191 |
ШПЛИНТ COTTER PIN |
1 | |
| 5 | 48414 |
КОРПУС DRIVE WHEEL-STEERING ARM HANDLE HOUSING DRIVE WHEEL-STEERING ARM HANDLE |
1 | |
| 50 | 98530 |
РУЧКА KNOB |
1 | discontinued |
| 51 | 11083A10 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп USE WITH TOGGLE SWITCH SWITCH ASSEMBLY Stop USE WITH TOGGLE SWITCH |
1 | discontinued |
| 52 | 12044 |
ФИКСАТОР USE WITH TOGGLE SWITCH RETANER USE WITH TOGGLE SWITCH |
1 | superseded |
| 53 | 15920A54 |
ТАЛРЕП В СБОРЕ USE WITH TOGGLE SWITCH LANYARD ASSEMBLY USE WITH TOGGLE SWITCH |
1 | superseded |
| 54 | 64855 |
ЗАЖИМ USE WITH TOGGLE SWITCH CLAMP USE WITH TOGGLE SWITCH |
1 | superseded |
| 55 | 22654 |
ВИНТ (0.190-32 x 0.38) USE WITH TOGGLE SWITCH SCREW (.190-32 x .38) USE WITH TOGGLE SWITCH |
1 | discontinued |
| 56 | 27165 |
ВИНТ (0.375-16 x 0.75) USE WITH TOGGLE SWITCH SCREW (.375-16 x .75) USE WITH TOGGLE SWITCH |
1 | superseded |
| 6 | 48516A1 |
ВЕДУЩЕЕ КОЛЕСО / ШТОК В СБОРЕ DRIVE WHEEL/ROD ASSEMBLY |
1 | discontinued |
| 7 | 48405A2 |
РЫЧАГ В СБОРЕ ARM ASSEMBLY |
1 | discontinued |
| 8 | 48519 |
ПЛАСТИНА COVER-DRIVE WHEEL PLATE COVER-DRIVE WHEEL |
1 | |
| 9 | 48518 |
ПРОКЛАДКА COVER PLATE GASKET COVER PLATE |
1 |
