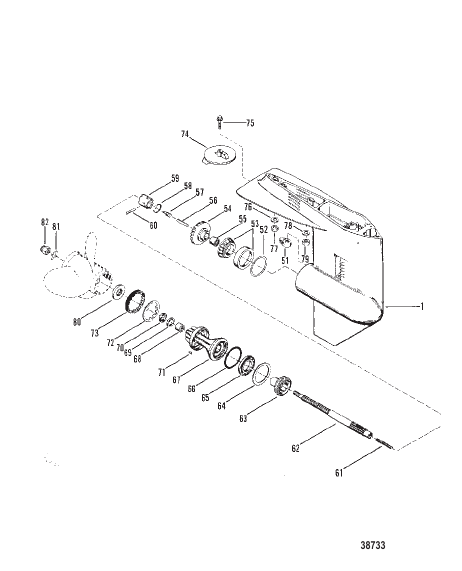

GEAR HOUSING (PROPELLER SHAFT)
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9539A4 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT SHAFT) GEAR HOUSING ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| - | 9539A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG SHAFT) GEAR HOUSING ASSEMBLY (LONG SHAFT) |
1 | discontinued |
| - | 79831A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| 1 | 9539A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | superseded |
| 51 | 76039 |
КУЛАЧОК Управление реверсом CAM Shift Control |
1 | superseded |
| 52 | 38374A1 |
НАБОР ПРОКЛАДОК (.002-3-5-10) SHIM SET (.002-3-5-10) |
AR | discontinued |
| 53 | 38356A1 |
НАБОР ПОДШИПНИКОВ BEARING SET |
1 | |
| 54 | 55608A4 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | superseded |
| 55 | 21739 |
ПОДШИПНИК Ролик FORWARD GEAR BEARING Roller FORWARD GEAR |
1 | |
| 56 | 38441 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | |
| 57 | 20843 |
ПОЛЗУН CROSS PIN SLIDE CROSS PIN |
1 | |
| 58 | 38114 |
ПРУЖИНА RETAINING-CROSS PIN SPRING RETAINING-CROSS PIN |
1 | |
| 59 | 92911 |
ХРАПОВИК SLIDING CLUTCH RATCHET SLIDING CLUTCH |
1 | superseded |
| 60 | 38113 |
ШТИФТ Разрез RATCHET TO PROPELLER SHAFT PIN Cross RATCHET TO PROPELLER SHAFT |
1 | superseded |
| 61 | 39845 |
ПРУЖИНА (PROP SHAFT I.D. IS .310") SPRING (PROP SHAFT I.D. IS .310") |
1 | discontinued |
| 61 | 815418 |
ПРУЖИНА (PROP SHAFT I.D. IS .373") SPRING (PROP SHAFT I.D. IS .373") |
1 | |
| 62 | 75365 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
| 63 | 79158 |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | superseded |
| 64 | 32004 |
ШАЙБА THRUST-REVERSE GEAR WASHER THRUST-REVERSE GEAR |
1 | discontinued |
| 65 | 20839 |
ПОДШИПНИК Шарик REVERSE GEAR BEARING Ball REVERSE GEAR |
1 | superseded |
| 66 | 31986 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BEARING CARRIER O-RING BEARING CARRIER |
1 | |
| 67 | 69386A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 68 | 21700 |
ПОДШИПНИК Игла BEARING CARRIER BEARING Needle BEARING CARRIER |
1 | |
| 69 | 69188 |
УПЛОТНЕНИЕ Масло BEARING CARRIER SEAL Oil BEARING CARRIER |
1 | superseded |
| 70 | 69189 |
УПЛОТНЕНИЕ Масло BEARING CARRIER SEAL Oil BEARING CARRIER |
1 | superseded |
| 71 | 30281 |
КЛЮЧ LOCATING-BEARING CARRIER KEY LOCATING-BEARING CARRIER |
1 | |
| 72 | 53012 |
ЛЕПЕСТКОВАЯ ШАЙБА GEAR HOUSING COVER TAB WASHER GEAR HOUSING COVER |
1 | |
| 73 | 87763 |
ГАЙКА GEAR HOUSING NUT GEAR HOUSING |
1 | |
| 74 | 31640A1 |
ТРАНЦЕВАЯ ПЛИТА В СБОРЕ GEAR HOUSING TRIM TAB ASSEMBLY GEAR HOUSING |
1 | superseded |
| 75 | 66024 |
ВИНТ (0.437-14 x 1.75) TRIM TAB TO GEAR HOUSING SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING |
1 | |
| 76 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) DRIVE SHAFT HOUSING STUD (3/8") WASHER (.406 x .750 x .104) DRIVE SHAFT HOUSING STUD (3/8") |
1 | superseded |
| 77 | 34863 |
ГАЙКА (.375-24) DRIVE SHAFT HOUSING STUD NUT (.375-24) DRIVE SHAFT HOUSING STUD |
1 | superseded |
| 78 | 65791 |
ШАЙБА HOUSING TO STUD WASHER HOUSING TO STUD |
1 | discontinued |
| 79 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
1 | superseded |
| 80 | 73345A1 |
УПОРНАЯ ВТУЛКА FRONT THRUST WASHER FRONT |
1 | |
| 81 | 76281 |
ЛЕПЕСТКОВАЯ ШАЙБА PROPELLER NUT TAB WASHER PROPELLER NUT |
1 | superseded |
| 82 | 69578A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА PROP NUT KIT |
1 | superseded |
