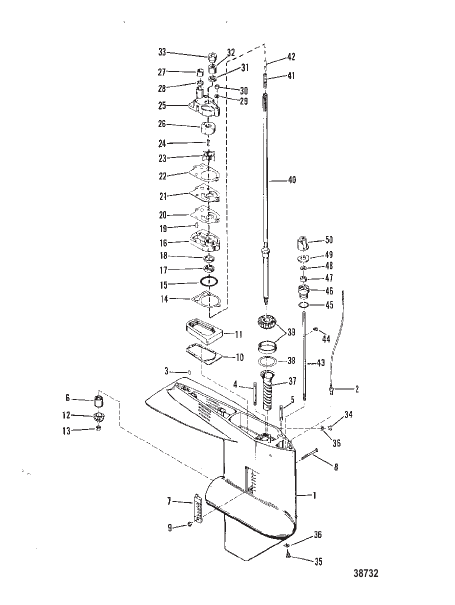

GEAR HOUSING (DRIVESHAFT)
Parts (56)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9539A4 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT SHAFT) GEAR HOUSING ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| - | 9539A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG SHAFT) GEAR HOUSING ASSEMBLY (LONG SHAFT) |
1 | discontinued |
| - | 77177A3 |
КОМПЛЕКТ ВОДЯНОГО НАСОСА WATER PUMP KIT |
1 | |
| - | 79831A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| 1 | 9539A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | superseded |
| 10 | 92815 |
ПЛАСТИНА SUPPORT-EXHAUST TUBE PLATE SUPPORT-EXHAUST TUBE |
1 | |
| 11 | 37721 |
УПЛОТНЕНИЕ EXHAUST TUBE SEAL EXHAUST TUBE |
1 | superseded |
| 12 | 98097 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | superseded |
| 13 | 55910 |
ГАЙКА (0.437-20) NUT (.437-20) |
1 | |
| 14 | 19552 |
ПРОКЛАДКА GASKET |
1 | |
| 15 | 26722 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 16 | 77177A1 |
БАЗА В СБОРЕ Водяной насос BASE ASSEMBLY Water Pump |
1 | |
| 17 | 79831 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 18 | 90562 |
УПЛОТНЕНИЕ (1.254 x 0.312) SEAL (1.254 x .312) |
1 | |
| 19 | 35973 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 2 | 85822A1 |
СОЕДИНИТЕЛЬ В СБОРЕ SPEEDOMETER CONNECTOR ASSEMBLY SPEEDOMETER |
1 | superseded |
| 20 | 19553 |
ПРОКЛАДКА LOWER GASKET LOWER |
1 | |
| 21 | 54705 |
ЦИФЕРБЛАТ FACE PLATE |
1 | superseded |
| 22 | 19551 |
ПРОКЛАДКА UPPER GASKET UPPER |
1 | |
| 23 | 89983 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 24 | 56662 |
КЛЮЧ KEY |
1 | superseded |
| 25 | 77822A1 |
КОРПУС В СБОРЕ Водяной насос BODY ASSEMBLY Water Pump |
1 | |
| 26 | 48753 |
ВСТАВКА INSERT |
1 | |
| 27 | 38452 |
УПЛОТНЕНИЕ RUBBER SEAL RUBBER |
1 | |
| 28 | 38453 |
ШАЙБА NYLON WASHER NYLON |
1 | |
| 29 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь BODY AND BASE STUDS WASHER (.281 x .500 x .060) Stainless Steel BODY AND BASE STUDS |
3 | superseded |
| 3 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) GEAR HOUSING PIN Dowel (.187 x .530) GEAR HOUSING |
2 | superseded |
| 30 | 13438 |
ГАЙКА (0.250-28) BODY AND BASE STUDS NUT (.250-28) BODY AND BASE STUDS |
3 | superseded |
| 31 | 20273 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER O-RING RUBBER |
1 | |
| 32 | 88868A1 |
СИДЕНЬЕ В СБОРЕ SEAT ASSEMBLY |
1 | |
| 33 | 86304 |
УПЛОТНЕНИЕ SPLINED SEAL SPLINED |
1 | |
| 34 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 35 | 67892 |
ВИНТ Магнитный DRAIN SCREW Magnetic DRAIN |
1 | superseded |
| 36 | 19183 |
ШАЙБА Волокна FILLER/DRAIN SCREW WASHER Fiber FILLER/DRAIN SCREW |
2 | superseded |
| 37 | 88181 |
РУКАВ LUBRICATION - DRIVESHAFT SLEEVE LUBRICATION - DRIVESHAFT |
1 | discontinued |
| 38 | 92881A1 |
НАБОР ПРОКЛАДОК (.002-3-5-10-20) SHIM SET (.002-3-5-10-20) |
AR | |
| 39 | 77420A1 |
БЛОК ПОДШИПНИКА Ролик DRIVESHAFT BEARING ASSEMBLY Roller DRIVESHAFT |
1 | superseded |
| 4 | 33778 |
ШПИЛЬКА WATER PUMP/BASE (2-5/8") STUD WATER PUMP/BASE (2-5/8") |
3 | |
| 40 | 88025A2 |
ВЕДУЩИЙ ВАЛ В СБОРЕ (SHORT SHAFT) DRIVESHAFT ASSEMLBY (SHORT SHAFT) |
1 | superseded |
| 40 | 98180 |
ВЕДУЩИЙ ВАЛ (LONG SHAFT) DRIVESHAFT (LONG SHAFT) |
1 | discontinued |
| 41 | 20254 |
ПРУЖИНА COMPRESSION - DRIVESHAFT SPRING COMPRESSION - DRIVESHAFT |
1 | discontinued |
| 42 | 30545 |
ШТИФТ DRIVESHAFT PIN DRIVESHAFT |
1 | discontinued |
| 43 | 76063A1 |
ВАЛ В СБОРЕ SHAFT ASSEMBLY |
1 | discontinued |
| 44 | 29641 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 45 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) O-RING (.862 x .103) |
1 | |
| 46 | 77631A2 |
ВТУЛКА В СБОРЕ BUSHING ASSEMBLY |
1 | |
| 47 | 816464 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 48 | 77674 |
ШАЙБА RUBBER WASHER (.35 x .75 x .12) RUBBER |
1 | |
| 49 | 78036 |
БАЗА REVERSE LOCKING (SHORT SHAFT) BASE REVERSE LOCKING (SHORT SHAFT) |
1 | discontinued |
| 5 | 57933 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.190) GEAR HOUSING STUD (.437-14/.437-20 x 2.190) GEAR HOUSING |
2 | superseded |
| 50 | 433081 |
КУЛАЧОК REVERSE LOCKING (SHORT SHAFT) CAM REVERSE LOCKING (SHORT SHAFT) |
1 | superseded |
| 6 | 62091 |
ПОДШИПНИК Ролик DRIVESHAFT BEARING Roller DRIVESHAFT |
1 | superseded |
| 7 | 72849A1 |
ЭКРАН В СБОРЕ WATER INTAKE SCREEN ASSEMBLY WATER INTAKE |
1 | discontinued |
| 8 | 36070 |
ВИНТ (№10-32 x 1.250) WATER INTAKE SCREEN SCREW (#10-32 x 1.250) WATER INTAKE SCREEN |
1 | discontinued |
| 9 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь WATER INTAKE SCREEN SCREW NUT (#10-32) Stainless Steel WATER INTAKE SCREEN SCREW |
1 | superseded |
