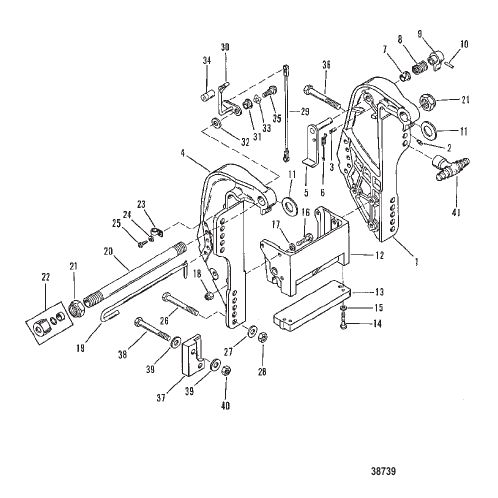

TRANSOM BRACKET (LONG SHAFT)(0C159200 AND UP)
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9751A1 |
КРОНШТЕЙН В СБОРЕ Транец ( PORT ) BRACKET ASSEMBLY Transom ( PORT ) |
1 | discontinued |
| 10 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486T |
КРОНШТЕЙН Анкер BRACKET Anchor |
1 | superseded |
| 13 | 43396A2 |
АНОД В СБОРЕ ANODE ASSEMBLY |
1 | superseded |
| 14 | 4000332 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
2 | |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
5 | |
| 16 | 4000355 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
1 | |
| 17 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
4 | |
| 18 | 400635 |
ГАЙКА (M8) NUT (M8) |
2 | superseded |
| 19 | 19613A1 |
ПАЛЕЦ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | discontinued |
| 2 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 20 | 19614 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 21 | 56041 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | superseded |
| 22 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 23 | 22740 |
ЗАЖИМ (POWER TRIM) CLIP (POWER TRIM) |
1 | |
| 24 | 69205 |
C-ШАЙБА (POWER TRIM) C WASHER (POWER TRIM) |
1 | superseded |
| 25 | 812832 |
ВИНТ (№10-16 x 0.500) (POWER TRIM) SCREW (#10-16 x .500) (POWER TRIM) |
1 | superseded |
| 26 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 27 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 28 | 35000 |
ГАЙКА (0.500-20), нержавеющая сталь NUT (.500-20) Stainless Steel |
4 | |
| 29 | 1938521 |
СОЕДИНИТЕЛЬ (NON-POWER TRIM) LINK (NON-POWER TRIM) |
1 | superseded |
| 3 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 30 | 19615A4 |
РЫЧАГ В СБОРЕ Наклон (NON-POWER TRIM) LEVER ASSEMBLY Tilt (NON-POWER TRIM) |
1 | superseded |
| 31 | 812707 |
ВТУЛКА BUSHING |
1 | |
| 32 | 815796 |
ШАЙБА ( .030" ) (NON-POWER TRIM) WASHER ( .030" ) (NON-POWER TRIM) |
1 | discontinued |
| 32 | 19605 |
ШАЙБА (0.520 x 0.850 x 0.060), нейлон – черный (NON-POWER TRIM) WASHER (.520 x .850 x .060) Nylon - Black (NON-POWER TRIM) |
1 | superseded |
| 33 | 99611 |
ВОЛНИСТАЯ ШАЙБА (NON-POWER TRIM) WAVE WASHER (NON-POWER TRIM) |
1 | |
| 34 | 19621 |
РУЧКА НАКЛОНА (NON-POWER TRIM) TILT KNOB (NON-POWER TRIM) |
1 | superseded |
| 35 | 19611 |
ВИНТ (0.375-16 x 0.62) (NON-POWER TRIM) SCREW (.375-16 x .62) (NON-POWER TRIM) |
1 | |
| 36 | 76841 |
ВИНТ (0.500-20 x 3.500) (NON-POWER TRIM) SCREW (.500-20 x 3.500) (NON-POWER TRIM) |
2 | discontinued |
| 37 | 812432T |
КРОНШТЕЙН Крепление (STARBOARD) NON-POWER TRIM BRACKET Mounting (STARBOARD) NON-POWER TRIM |
1 | superseded |
| 37 | 812433T |
КРОНШТЕЙН Крепление (PORT) NON-POWER TRIM BRACKET Mounting (PORT) NON-POWER TRIM |
1 | superseded |
| 38 | 88432 |
ВИНТ (0.375-24 x 4.00) NON-POWER TRIM SCREW (.375-24 x 4.00) NON-POWER TRIM |
4 | |
| 39 | 29395 |
ШАЙБА (0.390 x 1.00 x 0.06) NON-POWER TRIM WASHER (.390 x 1.00 x .06) NON-POWER TRIM |
8 | superseded |
| 4 | 9750T |
КРОНШТЕЙН Транец ( STARBOARD ) BRACKET Transom ( STARBOARD ) |
1 | discontinued |
| 40 | 134371 |
ГАЙКА (.375-24) NON-POWER TRIM NUT (.375-24) NON-POWER TRIM |
4 | superseded |
| 41 | 812434A2 |
ГАЙКА Т-образная рукоятка NON-POWER TRIM NUT T Handle NON-POWER TRIM |
2 | discontinued |
| 5 | 19618A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона LEVER ASSEMBLY Tilt Lock |
1 | superseded |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 812709T |
РУЧКА KNOB |
1 | superseded |
