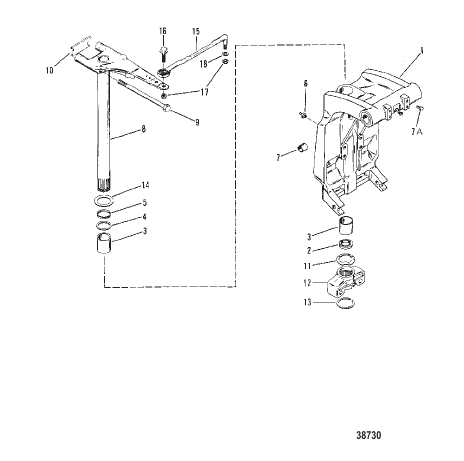

SWIVEL BRACKET (POWER TRIM)(0C159199 AND BELOW)
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| 1 | 8710A20 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | superseded |
| 10 | 28203 |
УПОР BUMPER |
1 | discontinued |
| 11 | 78854 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 12 | 42961T |
ВИЛКА Нижняя часть YOKE Bottom |
1 | discontinued |
| 13 | 67684 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 14 | 67670 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 92876A1 |
СОЕДИНИТЕЛЬ В СБОРЕ Рулевой механизм LINK ASSEMBLY Steering |
1 | superseded |
| 16 | 14000 |
ВИНТ (0.375-24 x 1.25) SCREW (.375-24 x 1.25) |
1 | superseded |
| 17 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
2 | superseded |
| 18 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь WASHER (.406 x .734 x .063) Stainless Steel |
2 | |
| 2 | 87735 |
УПЛОТНЕНИЕ Масло (LOWER) SEAL Oil (LOWER) |
1 | |
| 3 | 67669 |
ВТУЛКА LOWER AND UPPER BUSHING LOWER AND UPPER |
2 | superseded |
| 4 | 33466 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО UPPER O-RING UPPER |
1 | |
| 5 | 67668 |
ПРОСТАВКА UPPER SPACER UPPER |
1 | discontinued |
| 6 | 74036 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 7 | 99608 |
ВТУЛКА BUSHING |
2 | superseded |
| 7 | 64014 |
ВИНТ (0.250-28 x 0.500) SCREW (.250-28 x .500) |
2 | |
| 8 | 99661A2 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ SWIVEL PIN ASSEMBLY |
1 | discontinued |
| 9 | 99621 |
ВИНТ (0.437-20 x 6.620) SCREW (.437-20 x 6.620) |
2 | discontinued |
