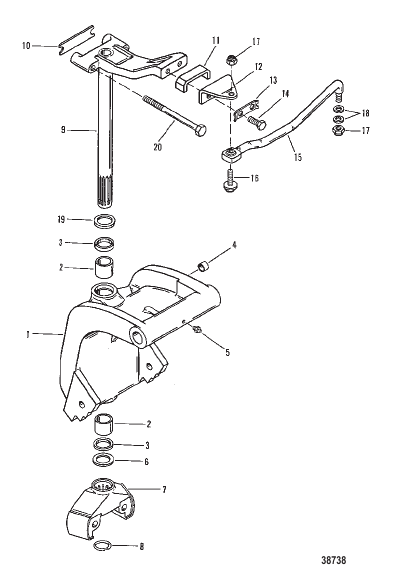

SWIVEL BRACKET (LONG SHAFT)(0C159200 AND UP)
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9749A2 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | discontinued |
| 10 | 30711 |
УПОР BUMPER |
1 | discontinued |
| 11 | 62297 |
УПОР BUMPER |
1 | discontinued |
| 12 | 19616T |
КРОНШТЕЙН (NON-HANDLE) BRACKET (NON-HANDLE) |
1 | superseded |
| 13 | 76533 |
СКОБА (NON-HANDLE) STRAP (NON-HANDLE) |
1 | discontinued |
| 14 | 34352 |
ВИНТ (0.375-24 x 0.875) (NON-HANDLE) SCREW (.375-24 x .875) (NON-HANDLE) |
2 | |
| 15 | 19608 |
СТЕРЖЕНЬ ТЯГИ (STARBOARD) (NON-HANDLE) LINK ROD (STARBOARD) (NON-HANDLE) |
1 | superseded |
| 15 | 19609 |
СТЕРЖЕНЬ ТЯГИ (PORT)(NON-HANDLE) LINK ROD (PORT)(NON-HANDLE) |
1 | superseded |
| 16 | 14000 |
ВИНТ (0.375-24 x 1.25) (NON-HANDLE) SCREW (.375-24 x 1.25) (NON-HANDLE) |
1 | superseded |
| 17 | 34863 |
ГАЙКА (.375-24) (NON-HANDLE) NUT (.375-24) (NON-HANDLE) |
2 | superseded |
| 18 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь (NON-HANDLE) WASHER (.406 x .734 x .063) Stainless Steel (NON-HANDLE) |
2 | |
| 19 | 52865 |
ШАЙБА WASHER |
1 | |
| 2 | 19622 |
ПОДШИПНИК BEARING |
2 | superseded |
| 20 | 66897 |
БОЛТ (0.437-20 x 5.250) BOLT (.437-20 x 5.250) |
2 | |
| 3 | 32911 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 4 | 19606 |
ПОДШИПНИК BEARING |
2 | |
| 5 | 74036 |
ФИТИНГ Смазка FITTING Grease |
3 | superseded |
| 6 | 25176 |
ШАЙБА WASHER |
1 | discontinued |
| 7 | 77416T |
ВИЛКА Нижняя часть YOKE Bottom |
1 | superseded |
| 8 | 77415 |
СТОПОРНОЕ КОЛЬЦО RETAINING RING |
1 | |
| 9 | 19459A3 |
РЫЧАГ В СБОРЕ Рулевой механизм ARM ASSEMBLY Steering |
1 | superseded |
