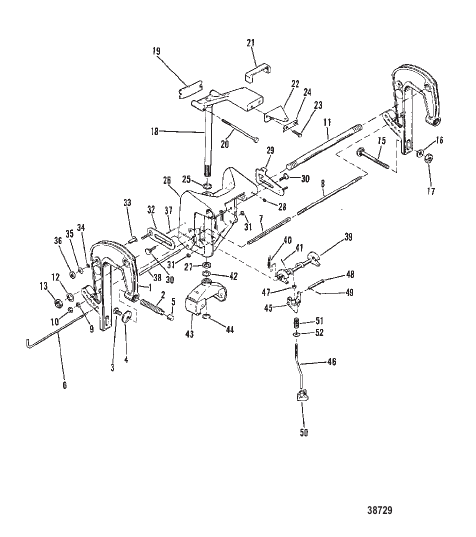

Clamp/Swivel Bracket (Short)(Long-0C159199 and Below(NPT)
Parts (56)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 5611A5 |
КРОНШТЕЙН ФИКСАТОРА В СБОРЕ (MANUAL)) CLAMP BRACKET ASSEMBLY (MANUAL)) |
2 | discontinued |
| 1 | 5611A4 |
КРОНШТЕЙН ФИКСАТОРА В СБОРЕ (ELECTRIC) CLAMP BRACKET ASSEMBLY (ELECTRIC) |
2 | discontinued |
| 10 | 28770 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
2 | |
| 11 | 74528 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 12 | 52864 |
ШАЙБА WASHER |
6 | discontinued |
| 13 | 56041 |
ГАЙКА (0.875-14) TILT TUBE NUT (.875-14) TILT TUBE |
2 | superseded |
| 15 | 68298 |
БОЛТ (0.375-16 x 3.250) (LOWER) BOLT (.375-16 x 3.250) (LOWER) |
2 | discontinued |
| 16 | 68410 |
ШАЙБА (LOWER) WASHER (LOWER) |
2 | discontinued |
| 17 | 99405 |
ГАЙКА NUT |
2 | superseded |
| 18 | 88798A19 |
ARM ASSEMBLY Steering (SHORT SHAFT) ARM ASSEMBLY Steering (SHORT SHAFT) |
1 | superseded |
| 18 | 88798A20 |
ARM ASSEMBLY Steering (LONG SHAFT) ARM ASSEMBLY Steering (LONG SHAFT) |
1 | superseded |
| 19 | 30711 |
УПОР BUMPER |
1 | discontinued |
| 2 | 90470A3 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (MANUAL) THUMB SCREW ASSEMBLY (MANUAL) |
2 | discontinued |
| 2 | 78492A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (ELECTRIC) THUMB SCREW ASSEMBLY (ELECTRIC) |
2 | discontinued |
| 20 | 66897 |
БОЛТ (0.437-20 x 5.250) BOLT (.437-20 x 5.250) |
2 | |
| 21 | 62297 |
УПОР BUMPER |
1 | discontinued |
| 22 | 76535 |
КРОНШТЕЙН W/O TILLER HANDLER BRACKET W/O TILLER HANDLER |
1 | superseded |
| 23 | 34352 |
ВИНТ (0.375-24 x 0.875) W/O TILLER HANDLER SCREW (.375-24 x .875) W/O TILLER HANDLER |
2 | |
| 24 | 76533 |
СКОБА W/O TILLER HANDLER STRAP W/O TILLER HANDLER |
1 | discontinued |
| 25 | 52865 |
ШАЙБА WASHER |
1 | |
| 26 | 7656A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН (SHORT SHAFT) SWIVEL BRACKET (SHORT SHAFT) |
1 | discontinued |
| 26 | 7655A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН (LONG SHAFT) SWIVEL BRACKET (LONG SHAFT) |
1 | discontinued |
| 27 | 32911 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 28 | 74036 |
ФИТИНГ Смазка FITTING Grease |
3 | superseded |
| 29 | 47913A2 |
РЫЧАГ В СБОРЕ (PORT) LEVER ASSEMBLY (PORT) |
1 | discontinued |
| 3 | 784951 |
ВИНТ WASHER TO THUMB SCREW SCREW WASHER TO THUMB SCREW |
2 | superseded |
| 30 | 69087 |
ВИНТ (0.312-24 x 0.880) SCREW (.312-24 x .880) |
2 | discontinued |
| 31 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
2 | |
| 32 | 47912A2 |
РЫЧАГ В СБОРЕ (STARBOARD) LEVER ASSEMBLY (STARBOARD) |
1 | discontinued |
| 33 | 47911 |
ВТУЛКА BUSHING |
2 | discontinued |
| 34 | 3462 |
WAVE WASHER WAVE WASHER |
2 | superseded |
| 35 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь WASHER (.330 x .750 x .060) Stainless Steel |
2 | |
| 36 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
2 | |
| 37 | 25598 |
ШТИФТ PIN |
1 | discontinued |
| 38 | 56349 |
ВАЛ SHAFT |
1 | discontinued |
| 39 | 14664A3 |
ФИКСАТОР РЕВЕРСА REVERESE LOCK |
1 | discontinued |
| 4 | 78493 |
ШАЙБА THUMB SCREW WASHER THUMB SCREW |
2 | discontinued |
| 40 | 29821 |
ПРУЖИНА SPRING |
1 | discontinued |
| 41 | 45882 |
ШПЛИНТ COTTER PIN |
1 | |
| 42 | 25176 |
ШАЙБА (.060) WASHER (.060) |
1 | discontinued |
| 43 | 77416T |
ВИЛКА Нижняя часть YOKE Bottom |
1 | superseded |
| 44 | 77415 |
СТОПОРНОЕ КОЛЬЦО RETAINING RING |
1 | |
| 45 | 89813 |
КОНЦЕВАЯ ЧАСТЬ ТЯГИ ROD END |
1 | discontinued |
| 46 | 43412 |
ШТОК PUSH (SHORT SHAFT) ROD PUSH (SHORT SHAFT) |
1 | discontinued |
| 46 | 43413 |
ШТОК PUSH (LONG SHAFT) ROD PUSH (LONG SHAFT) |
1 | discontinued |
| 47 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
1 | superseded |
| 48 | 72524 |
ШТИФТ PIN |
1 | discontinued |
| 49 | 25191 |
ШПЛИНТ COTTER PIN |
1 | |
| 5 | 75043 |
ПРОБКА (ELECTRIC) CAP (ELECTRIC) |
2 | discontinued |
| 50 | 93336 |
НАПРАВЛЯЮЩАЯ GUIDE |
1 | superseded |
| 51 | 44297 |
ПРУЖИНА SPRING |
1 | discontinued |
| 52 | 70132 |
ШАЙБА (0.323 x 0.563 x 0.063), нержавеющая сталь WASHER (.323 x .563 x .063) Stainless Steel |
1 | superseded |
| 6 | 49930A1 |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона PIN ASSEMBLY Tilt Lock |
1 | superseded |
| 7 | 59623 |
ПРОСТАВКА CLAMP BRACKET STUD SPACER CLAMP BRACKET STUD |
1 | discontinued |
| 8 | 59625 |
ШПИЛЬКА CLAMP BRACKET STUD CLAMP BRACKET |
1 | discontinued |
| 9 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
2 | superseded |
