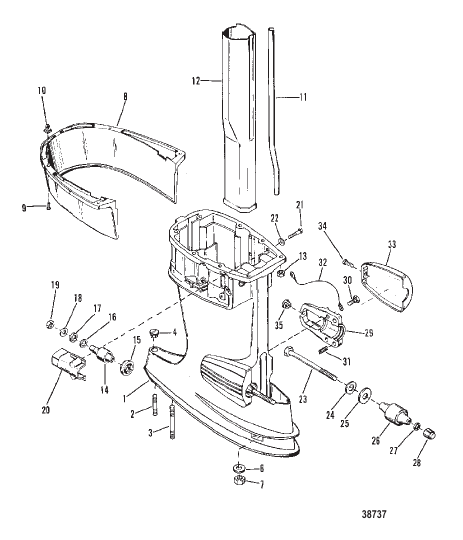

DRIVESHAFT HOUSING (LONG SHAFT)(0C159200 AND UP)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8189A12 |
КОРПУС В СБОРЕ Карданный вал HOUSING ASSEMBLY Driveshaft |
1 | discontinued |
| 10 | 92012 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TRIM COVER SCREW GROMMET TRIM COVER SCREW |
4 | discontinued |
| 11 | 45679 |
ТРУБА WATER OUTLET TUBE WATER OUTLET |
1 | discontinued |
| 12 | 695441 |
ТРУБА EXHAUST TUBE EXHAUST |
1 | discontinued |
| 13 | 64809 |
ГАЙКА POWERHEAD STUDS NUT POWERHEAD STUDS |
8 | discontinued |
| 14 | 93904 |
КРЕПЛЕНИЕ RUBBER-UPPER MOUNT RUBBER-UPPER |
2 | superseded |
| 15 | 96401 |
УПЛОТНЕНИЕ BELLOWS-UPPER MOUNT SEAL BELLOWS-UPPER MOUNT |
2 | |
| 16 | 27727 |
ШАЙБА UPPER MOUNT BOLT (37-64 I.D.) WASHER UPPER MOUNT BOLT (37-64 I.D.) |
2 | |
| 17 | 66966 |
ШАЙБА RUBBER-UPPER MOUNT BOLT WASHER RUBBER-UPPER MOUNT BOLT |
2 | |
| 18 | 30514 |
ШАЙБА UPPER MOUNT BOLT WASHER UPPER MOUNT BOLT |
2 | discontinued |
| 19 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь UPPER MONT BOLT NUT (.437-20) Stainless Steel UPPER MONT BOLT |
2 | superseded |
| 2 | 57932 |
ШПИЛЬКА (0.375-16/0.375-24 x 1.750) DRIVESHAFT HOUSING STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING |
1 | superseded |
| 20 | 87883T |
КРЫШКА UPPER MOUNT COVER UPPER MOUNT |
2 | superseded |
| 21 | 75284 |
ВИНТ (0.500-20 x 5.500) UPPER MOUNT COVER SCREW (.500-20 x 5.500) UPPER MOUNT COVER |
4 | |
| 22 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь UPPER MOUNT COVER SCREW WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW |
4 | superseded |
| 23 | 75284 |
ВИНТ (0.500-20 x 5.500) LOWER MOUNT SCREW SCREW (.500-20 x 5.500) LOWER MOUNT SCREW |
2 | |
| 24 | 28051 |
ШАЙБА LOWER MOUNT SCREW (Use where applicable) WASHER LOWER MOUNT SCREW (Use where applicable) |
2 | |
| 25 | 28053 |
ШАЙБА RUBBER (Use where applicable) WASHER RUBBER (Use where applicable) |
2 | |
| 26 | 75302 |
КРЕПЛЕНИЕ RUBBER-LOWER MOUNT RUBBER-LOWER |
2 | superseded |
| 27 | 30119 |
ШАЙБА (Наружный диаметр 0.875") LOWER MOUNT SCREW WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW |
2 | |
| 28 | 25096 |
ГАЙКА LOWER MOUNT SCREW NUT LOWER MOUNT SCREW |
2 | discontinued |
| 29 | 69592T |
ЗАЖИМ LOWER MOUNT TO DRIVESHAFT HOUSING CLAMP LOWER MOUNT TO DRIVESHAFT HOUSING |
2 | superseded |
| 3 | 57935 |
ШПИЛЬКА DRIVESHAFT HOUSING (3") STUD DRIVESHAFT HOUSING (3") |
1 | discontinued |
| 30 | 29256 |
ВИНТ (0.312-18 x 0.875) LOWER MOUNT CLAMP SCREW (.312-18 x .875) LOWER MOUNT CLAMP |
4 | discontinued |
| 31 | 35522 |
ПРУЖИНА TENSION -LOWER MOUNT CLAMP SPRING TENSION -LOWER MOUNT CLAMP |
4 | discontinued |
| 32 | 88238A2 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 33 | 35474T |
КРЫШКА LOWER MOUNT CLAMP COVER LOWER MOUNT CLAMP |
2 | discontinued |
| 34 | 87884 |
ВИНТ (№12-14 x 0.920) COVER TO LOWER CLAMP SCREW (#12-14 x .920) COVER TO LOWER CLAMP |
2 | discontinued |
| 35 | 35521 |
ГАЙКА LOWER MOUNT CLAMP COVER NUT LOWER MOUNT CLAMP COVER |
2 | |
| 4 | 64649 |
ПРОБКА PLASTIC- WATER PICK-UP HOLE PLUG PLASTIC- WATER PICK-UP HOLE |
1 | |
| 6 | 65791 |
ШАЙБА GEAR HOUSING STUDS WASHER GEAR HOUSING STUDS |
2 | discontinued |
| 7 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь GEAR HOUSING STUDS NUT (.437-20) Stainless Steel GEAR HOUSING STUDS |
2 | superseded |
| 8 | 60769 |
КРЫШКА TRIM-DRIVESHAFT HOUSING COVER TRIM-DRIVESHAFT HOUSING |
1 | discontinued |
| 9 | 57807 |
ВИНТ (№10-16 x 0.750), нержавеющая сталь TRIM COVER TO DRIVE SHAFT HOUSING SCREW (#10-16 x .750) Stainless Steel TRIM COVER TO DRIVE SHAFT HOUSING |
4 |
