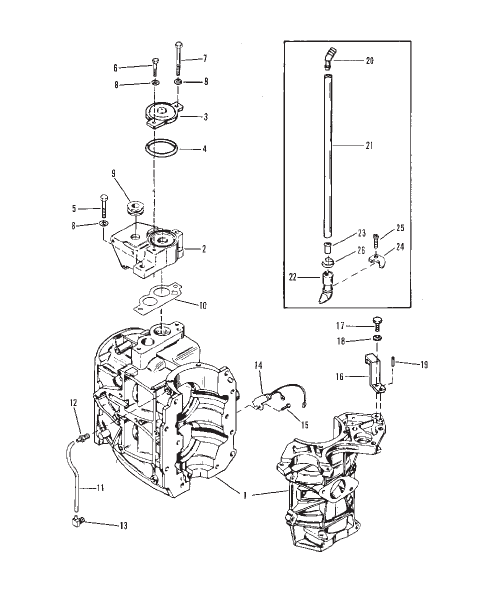

CYLINDER BLOCK AND THERMOSTAT
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| 1 | 7940A6 |
CYLINDER BLOCK/CRANKCASE CYLINDER BLOCK/CRANKCASE |
1 | discontinued |
| 10 | 66847 |
ПРОКЛАДКА COIL MOUNTING BRACKET TO BLOCK GASKET COIL MOUNTING BRACKET TO BLOCK |
1 | |
| 11 | 9938779 |
РУКАВ CYLINDER BLEED (8") HOSE CYLINDER BLEED (8") |
1 | |
| 12 | 42866 |
ОБРАТНЫЙ КЛАПАН CYLINDER BLEED (TOP) CHECK VALVE CYLINDER BLEED (TOP) |
1 | discontinued |
| 13 | 42863 |
ОБРАТНЫЙ КЛАПАН CYLINDER BLEED (BOTTOM) CHECK VALVE CYLINDER BLEED (BOTTOM) |
1 | discontinued |
| 14 | 58124A27 |
ПЕРЕКЛЮЧАТЕЛЬ (BULLET CONNECTORS) SWITCH (BULLET CONNECTORS) |
1 | discontinued |
| 15 | 62568 |
ВИНТ (№10-16 x 0.375) MERCURY SWITCH TO EXHAUST COVER SCREW (#10-16 x .375) MERCURY SWITCH TO EXHAUST COVER |
1 | |
| 16 | 76184 |
ИНДИКАТОР TIMING (ELECTRIC) INDICATOR TIMING (ELECTRIC) |
1 | discontinued |
| 17 | 25299 |
ВИНТ (0.312-18 x 0.75) (ELECTRIC) SCREW (.312-18 x .75) (ELECTRIC) |
1 | discontinued |
| 18 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) (ELECTRIC) WASHER (.328 x .562 x .062) (ELECTRIC) |
1 | |
| 19 | 29908 |
ШТИФТ (ELECTRIC) PIN (ELECTRIC) |
1 | discontinued |
| 2 | 66843T |
BRACKET COIL MOUNTING BRACKET COIL MOUNTING |
1 | discontinued |
| 20 | 78279 |
КОЛЕНЧАТЫЙ TELL TALE HOSE TO BLOCK ELBOW TELL TALE HOSE TO BLOCK |
1 | superseded |
| 21 | 7568058 |
РУКАВ (15.00") TELL TALE (6") HOSE (15.00 Inches) TELL TALE (6") |
1 | |
| 22 | 69791 |
ШТУЦЕР TELL TALE HOSE TO COWL NOZZLE TELL TALE HOSE TO COWL |
1 | |
| 23 | 90882 |
РУКАВ NOZZLE SLEEVE NOZZLE |
1 | |
| 24 | 66849 |
ЗАЖИМ NOZZLE CLAMP NOZZLE |
1 | discontinued |
| 25 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь CLAMP/SWITCH SCREW (#10-16 x .625) Stainless Steel CLAMP/SWITCH |
2 | |
| 26 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 3 | 99436A1 |
КРЫШКА В СБОРЕ COIL BRACKET COVER ASSEMBLY COIL BRACKET |
1 | discontinued |
| 4 | 64067 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COVER O-RING COVER |
1 | superseded |
| 5 | 31984 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
1 | |
| 6 | 69034 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 1.00) SCREW AND LOCKWASHER (.312-18 x 1.00) |
1 | superseded |
| 7 | 58414 |
ВИНТ (2-1/2") SCREW (2-1/2") |
1 | discontinued |
| 8 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
2 | superseded |
| 9 | 39597 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COIL MOUNTING BRACKET GROMMET COIL MOUNTING BRACKET |
1 | discontinued |
