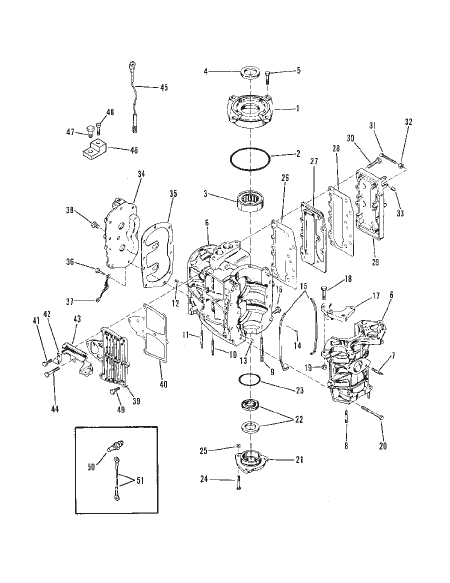

CYLINDER BLOCK CRANKCASE AND COVERS
Parts (57)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| - | 61779A87 |
POWERHEAD ASSEMBLY POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 8277A1 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ Верхняя часть END CAP ASSEMBLY Upper |
1 | discontinued |
| 10 | 68166 |
ШПИЛЬКА (0.312 x 2.125) STUD (.312 x 2.125) |
2 | |
| 11 | 68167 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.560) STUD (.312-18/.312-24 x 2.560) |
2 | discontinued |
| 12 | 66517 |
ОГРАНИЧИТЕЛЬ RESTRICTOR |
1 | |
| 13 | 23784 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 14 | 20323 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 15 | 55158 |
ПРОКЛАДКА GASKET |
2 | |
| 16 | 32802 |
ПРОБКА Труба (0.125-27) PLUG Pipe (.125-27) |
1 | superseded |
| 17 | 62064T |
BRACKET BRACKET |
1 | superseded |
| 18 | 21339 |
ВИНТ (0.312-24 x 1.375) SCREW (.312-24 x 1.375) |
2 | discontinued |
| 19 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
2 | |
| 2 | 47254 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 20 | 73657 |
ВИНТ (0.312-18 x 1.50) SCREW (.312-18 x 1.50) |
6 | |
| 20 | 63328 |
ВИНТ (0.312-18 x 3.00) SCREW (.312-18 x 3.00) |
2 | discontinued |
| 20 | 74824 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
2 | |
| 21 | 7267A1 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ Нижняя часть END CAP ASSEMBLY Lower |
1 | discontinued |
| 22 | 41953 |
УПЛОТНЕНИЕ SEAL |
2 | |
| 23 | 64067 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 24 | 63365 |
ВИНТ (1-1/2") SCREW (1-1/2") |
3 | discontinued |
| 25 | 64068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
3 | |
| 26 | 854892 |
GASKET GASKET |
1 | |
| 27 | 55190 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 28 | 854882 |
GASKET GASKET |
1 | |
| 29 | 55157T |
COVER COVER |
1 | superseded |
| 3 | 62066 |
ПОДШИПНИК Ролик BEARING Roller |
1 | superseded |
| 30 | 69092 |
ВИНТ (1.25) SCREW (1.25) |
1 | superseded |
| 30 | 31984 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
7 | |
| 31 | 64021 |
ВИНТ (1-7/8") SCREW (1-7/8") |
2 | discontinued |
| 32 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 33 | 26852 |
ПРОБКА Нейлон CAP Nylon |
2 | |
| 34 | 9110T |
COVER COVER |
1 | superseded |
| 35 | 854902 |
GASKET GASKET |
1 | superseded |
| 36 | 76213 |
ВИНТ (0.250-20 x 1.120) SCREW (.250-20 x 1.120) |
10 | |
| 37 | 46933A3 |
СКОБА В СБОРЕ Заземление STRAP ASEMBLY Ground |
2 | discontinued |
| 38 | 32802 |
ПРОБКА Труба (0.125-27) PLUG Pipe (.125-27) |
1 | superseded |
| 39 | 14427T |
COVER (FUEL PUMP CREW ARE 6MM) COVER (FUEL PUMP CREW ARE 6MM) |
1 | superseded |
| 39 | 14427A1 |
COVER (FUEL PUMP CREW ARE 12-24) COVER (FUEL PUMP CREW ARE 12-24) |
1 | discontinued |
| 4 | 41953 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 40 | 552791 |
GASKET GASKET |
1 | |
| 41 | 49668 |
ВИНТ (0.250-20 x 0.750) (QTY. OF 6 ON ELECTRIC) SCREW (.250-20 x .750) (QTY. OF 6 ON ELECTRIC) |
8 | |
| 42 | 47483 |
J-ЗАЖИМ J CLIP |
1 | |
| 43 | 92059T |
BRACKET (Electric) BRACKET (Electric) |
1 | discontinued |
| 44 | 78036 |
БАЗА (Electric) BASE (Electric) |
2 | discontinued |
| 45 | 96829A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Температура (Electric) SWITCH ASSEMBLY Temperature (Electric) |
1 | |
| 46 | 45915 |
КЛЕММНАЯ КОЛОДКА (Electric) TERMINAL BLOCK (Electric) |
1 | |
| 47 | 28192 |
ВИНТ (№10-24 x 0.50) (Electric) SCREW (#10-24 x .50) (Electric) |
1 | superseded |
| 48 | 69079 |
ВИНТ (№10-16 x 0.440) (Electric) SCREW (#10-16 x .440) (Electric) |
1 | |
| 49 | 70602 |
ВИНТ (0.250-20 x 2.00) (Electric) SCREW (.250-20 x 2.00) (Electric) |
1 | discontinued |
| 5 | 69034 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 1.00) SCREW AND LOCKWASHER (.312-18 x 1.00) |
4 | superseded |
| 50 | 12415 |
ДАТЧИК Температура (Powerboat) SENDER Temperature (Powerboat) |
1 | |
| 51 | 88824A6 |
КАБЕЛЬ В СБОРЕ (Powerboat) CABLE ASSEMBLY (Powerboat) |
1 | |
| 6 | 7940A6 |
CYLINDER BLOCK/CRANKCASE CYLINDER BLOCK/CRANKCASE |
1 | discontinued |
| 7 | 68164 |
ШПИЛЬКА (1-1/4") STUD (1-1/4") |
2 | superseded |
| 8 | 68165 |
ШПИЛЬКА (1-5/8") STUD (1-5/8") |
2 | discontinued |
| 9 | 87901 |
ШПИЛЬКА (4-3/8") STUD (4-3/8") |
2 | discontinued |
