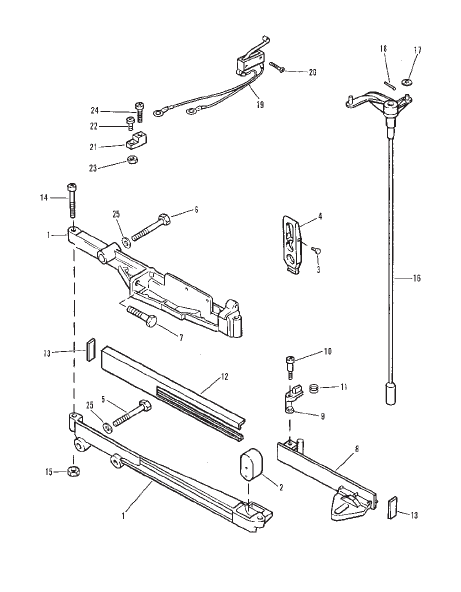

SHIFT CONTROL LINKAGE
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 87876A2 |
SHIFT ANCHOR BACKET (UPPER) SHIFT ANCHOR BACKET (UPPER) |
1 | discontinued |
| 10 | 39620 |
ВИНТ SCREW |
1 | discontinued |
| 11 | 27087 |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 75717 |
ПОЛЗУН SLIDE |
1 | discontinued |
| 13 | 39515 |
КОЛПАЧОК END CAP |
2 | discontinued |
| 14 | 20012 |
ВИНТ (0.250-28 x 1.62) SCREW (.250-28 x 1.62) |
2 | discontinued |
| 15 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | superseded |
| 16 | 75104A7 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ (SHORT SHAFT) SHIFT SHAFT ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| 16 | 75104A8 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ (LONG SHAFT) SHIFT SHAFT ASSEMBLY (LONG SHAFT) |
1 | discontinued |
| 17 | 37998 |
ШАЙБА (MANUAL) WASHER (MANUAL) |
1 | |
| 18 | 27769 |
ШПЛИНТ (MANUAL) COTTER PIN (MANUAL) |
1 | superseded |
| 19 | 88096A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ (ELECTRIC TILLER HANDLE) SWITCH ASSEMBLY (ELECTRIC TILLER HANDLE) |
1 | discontinued |
| 2 | 39519 |
КОЛПАЧОК CUP |
1 | |
| 20 | 30902 |
ВИНТ (№6-32 x 0.750) (ELECTRIC TILLER HANDLE) SCREW (#6-32 x .750) (ELECTRIC TILLER HANDLE) |
2 | discontinued |
| 21 | 45915 |
КЛЕММНАЯ КОЛОДКА (ELECTRIC TILLER HANDLE) TERMINAL BLOCK (ELECTRIC TILLER HANDLE) |
1 | |
| 22 | 25764 |
ВИНТ (0.190-32 x 0.50) (ELECTRIC TILLER HANDLE) SCREW (.190-32 x .50) (ELECTRIC TILLER HANDLE) |
1 | |
| 23 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) (ELECTRIC TILLER HANDLE) NUT AND LOCKWASHER (#10-32) (ELECTRIC TILLER HANDLE) |
1 | |
| 24 | 69079 |
ВИНТ (№10-16 x 0.440) (ELECTRIC TILLER HANDLE) SCREW (#10-16 x .440) (ELECTRIC TILLER HANDLE) |
1 | |
| 25 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь WASHER (.344 x .688 x .065) Stainless Steel |
3 | superseded |
| 3 | 42975 |
ХОДОВОЙ ВИНТ DRIVE SCREW |
2 | |
| 4 | 98889 |
ЗАЩЕЛКА LATCH |
1 | |
| 5 | 73657 |
ВИНТ (0.312-18 x 1.50) SCREW (.312-18 x 1.50) |
2 | |
| 6 | 67450 |
ВИНТ (0.312-18 x 2.250) SCREW (.312-18 x 2.250) |
1 | discontinued |
| 7 | 35385 |
ВИНТ (0.312-18 x 1-3/4) SCREW (.312-18 x 1-3/4) |
1 | discontinued |
| 8 | 87874 |
ПОЛЗУН SLIDE |
1 | discontinued |
| 9 | 56193 |
ЗАЩЕЛКА (SHIFT CABLE) LATCH (SHIFT CABLE) |
1 | discontinued |
