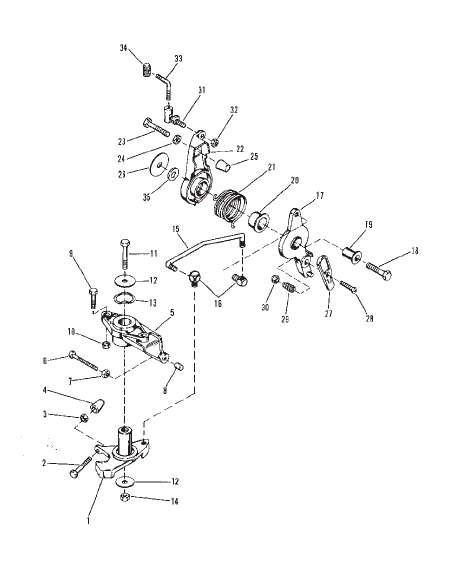

THROTTLE AND SPARK ADVANCE LINKAGE
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44405 |
КУЛАЧОК Дроссельная заслонка ACTUATOR CAM Throttle ACTUATOR |
1 | discontinued |
| 10 | 29250 |
ГАЙКА (0.312-24) THROTTLE CONTROL BRACKET SCREW NUT (.312-24) THROTTLE CONTROL BRACKET SCREW |
2 | |
| 11 | 34438 |
SCREW (.312-24 x 2.375) SCREW (.312-24 x 2.375) |
1 | discontinued |
| 12 | 25893 |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 62172 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 14 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 15 | 95044 |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | discontinued |
| 16 | 95045 |
ШАРНИР LINK ROD SWIVEL LINK ROD |
2 | discontinued |
| 17 | 95049 |
РЫЧАГ THROTTLE CONTROL LEVER THROTTLE CONTROL |
1 | discontinued |
| 18 | 55337 |
ВИНТ (0.375-16 x 1.75) SCREW (.375-16 x 1.75) |
1 | superseded |
| 19 | 55164 |
ВТУЛКА THROTTLE CONTROL LEVER SCREW BUSHING THROTTLE CONTROL LEVER SCREW |
1 | |
| 2 | 63102 |
ВИНТ (0.250-20 x 1.250) ADJUSITNG-THROTTLE CAM SCREW (.250-20 x 1.250) ADJUSITNG-THROTTLE CAM |
1 | discontinued |
| 20 | 55171 |
ВТУЛКА THROTTLE CONTROL LEVER SCREW BUSHING THROTTLE CONTROL LEVER SCREW |
1 | discontinued |
| 21 | 55162 |
ПРУЖИНА RETURN-SPARK ADVANCE LEVER SPRING RETURN-SPARK ADVANCE LEVER |
1 | |
| 22 | 95051 |
РЫЧАГ SPARK ADVANCE LEVER SPARK ADVANCE |
1 | discontinued |
| 23 | 32627 |
ВИНТ (0.190-32 x 1.50) ADJUSTING-ADVANCE LEVER SCREW (.190-32 x 1.50) ADJUSTING-ADVANCE LEVER |
1 | discontinued |
| 24 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь JAM-ADJUSTING SCREW NUT (#10-32) Stainless Steel JAM-ADJUSTING SCREW |
1 | |
| 25 | 48039 |
ПРОБКА NYLON-ADJUSTING SCREW CAP NYLON-ADJUSTING SCREW |
1 | |
| 26 | 68410 |
ШАЙБА THORTTLE CONTROL LEVER SCREW WASHER THORTTLE CONTROL LEVER SCREW |
1 | discontinued |
| 27 | 39483 |
ЗАЩЕЛКА LATCH |
1 | |
| 28 | 22486 |
ВИНТ (0.250-28 x 0.880) SCREW (.250-28 x .880) |
1 | superseded |
| 29 | 20099 |
ПРУЖИНА COMPRESSION-LATCH SCREW SPRING COMPRESSION-LATCH SCREW |
1 | |
| 3 | 64015 |
ГАЙКА (0.250-20) JAM-ADJUSTOING SCREW NUT (.250-20) JAM-ADJUSTOING SCREW |
1 | |
| 30 | 35045 |
ГАЙКА (0.250-28) LATCH-SCREW NUT (.250-28) LATCH-SCREW |
1 | superseded |
| 31 | 62459 |
ШАРОВОЕ СОЕДИНЕНИЕ В СБОРЕ SPARK ADVANCE LEVER BALL JOINT ASSEMBLY SPARK ADVANCE LEVER |
1 | superseded |
| 32 | 46438 |
ГАЙКА (№10-32) BALL JOINT TO SPARK ADVANCE LEVER NUT (#10-32) BALL JOINT TO SPARK ADVANCE LEVER |
1 | |
| 33 | 61940 |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | discontinued |
| 34 | 74897 |
ШАРНИР THREADED - TRIGGER PLATE TO LINK ROD PIVOT THREADED - TRIGGER PLATE TO LINK ROD |
1 | superseded |
| 35 | 8M0027716 |
ШАЙБА (0.390 x 0.600 x 0.032), нержавеющая сталь WASHER (.390 x .600 x .032) Stainless Steel |
1 | |
| 4 | 26852 |
ПРОБКА Нейлон NYLON-ADJUSTING SCREW CAP Nylon NYLON-ADJUSTING SCREW |
1 | |
| 5 | 39522T |
BRACKET THROTTLE CONTROL SHAFT BRACKET THROTTLE CONTROL SHAFT |
1 | discontinued |
| 6 | 64021 |
ВИНТ ADJUSTING (1-7/8") SCREW ADJUSTING (1-7/8") |
1 | discontinued |
| 7 | 64015 |
ГАЙКА (0.250-20) JAM-ADJUSTING SCREW NUT (.250-20) JAM-ADJUSTING SCREW |
1 | |
| 8 | 26852 |
ПРОБКА Нейлон ADJUSTING SCREW CAP Nylon ADJUSTING SCREW |
1 | |
| 9 | 20639 |
ВИНТ (0.312-24 x 1.12) SCREW (.312-24 x 1.12) |
2 | discontinued |
