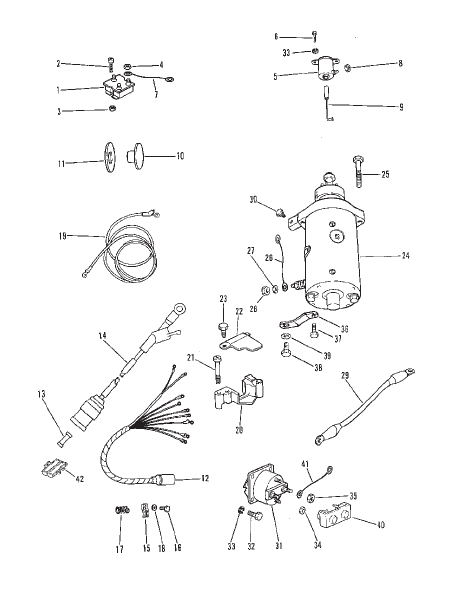

STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC)
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 816770 |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | superseded |
| 10 | 35827 |
ПРОБКА BOTTOM COWL PART OF BOTTOM COWL ASSEMBLY PLUG BOTTOM COWL PART OF BOTTOM COWL ASSEMBLY |
1 | discontinued |
| 11 | 30428 |
ФИКСАТОР PLUG PART OF BOTTOM COWL ASSEMBLY FASTENER PLUG PART OF BOTTOM COWL ASSEMBLY |
1 | discontinued |
| 12 | 96219A8 |
HARNESS ASSEMBLY HARNESS ASSEMBLY |
1 | discontinued |
| 13 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 14 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 15 | 88751 |
ЗАЖИМ WIRING HARNESS CLAMP WIRING HARNESS |
1 | discontinued |
| 16 | 23702 |
ВИНТ (0.190-32 x 1.12) WIRING AHNRESS CLAMP SCREW (.190-32 x 1.12) WIRING AHNRESS CLAMP |
1 | discontinued |
| 17 | 28357 |
ПРУЖИНА WIRING HARNESS CLAMP SCREW SPRING WIRING HARNESS CLAMP SCREW |
1 | discontinued |
| 18 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WIRING HARNESS CLAMP SCREW WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW |
1 | |
| 19 | 88439A3 |
КАБЕЛЬ В СБОРЕ Положительный полюс – аккумулятор CABLE ASSEMBLY Positive - Battery |
1 | |
| 19 | 88439A4 |
КАБЕЛЬ В СБОРЕ Аккумулятор – отрицательный полюс CABLE ASSEMBLY Battery - Negative |
1 | |
| 2 | 38055 |
ВИНТ (0.190-32 x 0.620) RECTIFIER TO FRONT SUPPORT BRACKET SCREW (.190-32 x .620) RECTIFIER TO FRONT SUPPORT BRACKET |
2 | discontinued |
| 20 | 886201 |
BRACKET HARNESS SUPPORT BRACKET HARNESS SUPPORT |
1 | discontinued |
| 21 | 73280 |
ВИНТ HARNESS SUPPORT BRACKET SCREW HARNESS SUPPORT BRACKET |
2 | discontinued |
| 22 | 88617 |
КРЫШКА HARNESS SUPPORT BRACKET COVER HARNESS SUPPORT BRACKET |
1 | discontinued |
| 23 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь HARNESS SUPPORT BRACKET COVER SCREW (.250-20 x .620) Stainless Steel HARNESS SUPPORT BRACKET COVER |
1 | |
| 24 | 41583 |
СТАРТЕР В СБОРЕ (10 PINION TEETH) STARTER MOTOR ASSEMBLY (10 PINION TEETH) |
1 | superseded |
| 25 | 35213 |
ВИНТ SCREW |
2 | discontinued |
| 26 | 88807A24 |
CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (BLACK) CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (BLACK) |
1 | discontinued |
| 27 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь CABLE TO STARTER MOTOR NUT LOCKWASHER (.250) Stainless Steel CABLE TO STARTER MOTOR NUT |
1 | |
| 28 | 64015 |
ГАЙКА (0.250-20) CABLE TO STARTER MOTOR NUT (.250-20) CABLE TO STARTER MOTOR |
1 | |
| 29 | 88809A9 |
CABLE ASSEMBLY STARTER TO SOLENOID (YELLOW) CABLE ASSEMBLY STARTER TO SOLENOID (YELLOW) |
1 | discontinued |
| 3 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) RECTIFIER FASTENING SCREW NUT AND LOCKWASHER (#10-32) RECTIFIER FASTENING SCREW |
2 | |
| 30 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel |
1 | |
| 31 | 96158 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
1 | superseded |
| 32 | 98253 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 32 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
2 | |
| 33 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь CHOKE/STARTER SOLENOID SCREW LOCKWASHER (.250) Stainless Steel CHOKE/STARTER SOLENOID SCREW |
4 | |
| 34 | 26419 |
ГАЙКА (№8-32), латунь NUT (#8-32) Brass |
2 | |
| 35 | 94330 |
ГАЙКА (0.250-20), латунь NUT (.250-20) Brass |
2 | |
| 36 | 42729A1 |
КРОНШТЕЙН STARTER MOTOR TO CRANKCASE BRACKET STARTER MOTOR TO CRANKCASE |
1 | discontinued |
| 37 | 32079 |
ВИНТ (0.250-20 x 0.560) SCREW (.250-20 x .560) |
1 | discontinued |
| 38 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь SCREW (#10-32 x .500) Stainless Steel |
1 | |
| 39 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) BRACKET SCREW WASHER (.203 x .406 x .040) BRACKET SCREW |
1 | |
| 4 | 45076 |
ГАЙКА (№10-32), латунь RECTIFIER TERMINAL NUT (#10-32) Brass RECTIFIER TERMINAL |
3 | |
| 40 | 97861 |
РАЗЪЕДИНИТЕЛЬ STARTER SOLENOID INSULATOR STARTER SOLENOID |
1 | |
| 41 | 88807A16 |
КАБЕЛЬ В СБОРЕ (4.00"), черный SOLENOID GROUND CABLE ASSEMBLY (4.00 Inches) Black SOLENOID GROUND |
1 | |
| 42 | 134731 |
ДЕРЖАТЕЛЬ Предохранитель HOLDER Fuse |
1 | discontinued |
| 5 | 54293A11 |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ Обогатитель SOLENOID ASSEMBLY Choke |
1 | superseded |
| 6 | 25299 |
ВИНТ (0.312-18 x 0.75) SCREW (.312-18 x .75) |
2 | discontinued |
| 7 | 88808A17 |
WIRE RECTIFIER TO SOLENOID (RED) WIRE RECTIFIER TO SOLENOID (RED) |
1 | discontinued |
| 8 | 45076 |
ГАЙКА (№10-32), латунь CHOKE SOLENOID TERMINAL NUT (#10-32) Brass CHOKE SOLENOID TERMINAL |
1 | |
| 9 | 89008A2 |
ПЛУНЖЕР В СБОРЕ CHOKE SOLENOID PLUNGER ASSEMBLY CHOKE SOLENOID |
1 | discontinued |
