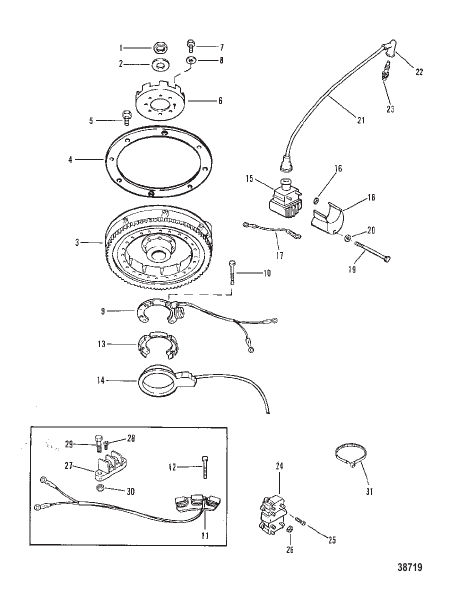

FLYWHEEL, IGNITION COIL AND SWITCH BOX
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 22339 |
ГАЙКА (.625-18) FLYWHEEL NUT (.625-18) FLYWHEEL |
1 | superseded |
| 10 | 77363 |
ВИНТ (№10-24 x 1.50) STATOR TO UPPER END CAP SCREW (#10-24 x 1.50) STATOR TO UPPER END CAP |
2 | discontinued |
| 10 | 76566 |
ВИНТ (№10-24 x 1.00) STATOR TO UPPER END CAP SCREW (#10-24 x 1.00) STATOR TO UPPER END CAP |
2 | superseded |
| 11 | 86704A2 |
СТАТОР В СБОРЕ CHARGING STATOR ASSEMBLY CHARGING |
1 | superseded |
| 12 | 93787 |
ВИНТ (№10-24 x 1.750) STATOR TO UPPER END CAP SCREW (#10-24 x 1.750) STATOR TO UPPER END CAP |
3 | |
| 13 | 95707 |
ОПОРА Статор SUPPORT Stator |
1 | discontinued |
| 14 | 92431A6 |
ПЛАСТИНКА СПУСКОВОГО МЕХАНИЗМА (BULLET CONNECTORS) TRIGGER PLATE (BULLET CONNECTORS) |
1 | discontinued |
| 15 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
2 | superseded |
| 16 | 45076 |
ГАЙКА (№10-32), латунь COIL TERMINAL NUT (#10-32) Brass COIL TERMINAL |
4 | |
| 17 | 60466A8 |
КАБЕЛЬ В СБОРЕ Черный COIL COVER SCREW CABLE ASSEMBLY Black COIL COVER SCREW |
2 | discontinued |
| 18 | 76254 |
КРЫШКА IGNITION COIL COVER IGNITION COIL |
2 | discontinued |
| 19 | 93460 |
ВИНТ (0.190-24 x 2.125) COVER TO COIL BRACKET SCREW (.190-24 x 2.125) COVER TO COIL BRACKET |
6 | discontinued |
| 2 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) FLYWHEEL NUT WASHER (.641 x 1.250 x .190) FLYWHEEL NUT |
1 | superseded |
| 20 | 38833 |
ШАЙБА COIL COVER SCREW WASHER COIL COVER SCREW |
8 | |
| 21 | 813715A4 |
LEAD ASSEMBLY High Tension LEAD ASSEMBLY High Tension |
2 | discontinued |
| 22 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ BOOT/TERMINAL KIT |
2 | |
| 23 | 97180 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 23 | 14103550 |
СВЕЧА ЗАЖИГАНИЯ (NGK-BUZHW) (Canada/Belgium SPARK PLUG (NGK-BUZHW) (Canada/Belgium |
2 | discontinued |
| 24 | 7452A11 |
SWITCHBOX ASSEMBLY (BULLET CONNECTORS) SWITCHBOX ASSEMBLY (BULLET CONNECTORS) |
1 | superseded |
| 25 | 23015 |
ВИНТ (0.190-32 x 1.00) SCREW (.190-32 x 1.00) |
3 | discontinued |
| 26 | 45076 |
ГАЙКА (№10-32), латунь SWITCH BOX TERMINAL NUT (#10-32) Brass SWITCH BOX TERMINAL |
6 | |
| 27 | 63813 |
КЛЕММНАЯ КОЛОДКА (MANUAL) TERMINAL BLOCK (MANUAL) |
1 | superseded |
| 28 | 62568 |
ВИНТ (№10-16 x 0.375) (MANUAL) SCREW (#10-16 x .375) (MANUAL) |
2 | |
| 29 | 38055 |
ВИНТ (0.190-32 x 0.620) (MANUAL) SCREW (.190-32 x .620) (MANUAL) |
2 | discontinued |
| 3 | 7912A14 |
МАХОВИК В СБОРЕ (MANUAL) FLYWHEEL ASSEMBLY (MANUAL) |
1 | discontinued |
| 3 | 7912A12 |
МАХОВИК В СБОРЕ (ELECTRIC - 77 TEETH) FLYWHEEL ASSEMBLY (ELECTRIC - 77 TEETH) |
1 | discontinued |
| 30 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) (MANUAL) NUT AND LOCKWASHER (#10-32) (MANUAL) |
2 | |
| 31 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
AR | superseded |
| 4 | 41409A1 |
ИНЕРЦИОННОЕ КОЛЬЦО В СБОРЕ INERTIA RING ASSEMBLY |
1 | discontinued |
| 5 | 32417 |
ВИНТ (0.250-28 x 0.625) FLYWHEEL SCREW (.250-28 x .625) FLYWHEEL |
8 | discontinued |
| 6 | 65213 |
ХРАПОВИК FLYWHEEL (MANUAL) RATCHET FLYWHEEL (MANUAL) |
1 | discontinued |
| 7 | 68997 |
ВИНТ (0.312-24 x 0.750) RATCHET TO FLYWHEEL (MANUAL) SCREW (.312-24 x .750) RATCHET TO FLYWHEEL (MANUAL) |
8 | |
| 8 | 20202 |
СТОПОРНАЯ ШАЙБА RATCHET SCREW (MANUAL) LOCKWASHER RATCHET SCREW (MANUAL) |
2 | discontinued |
| 9 | 86617A13 |
СТАТОР В СБОРЕ (BULLET CONNECTORS) STATOR ASSEMBLY (BULLET CONNECTORS) |
1 | superseded |
