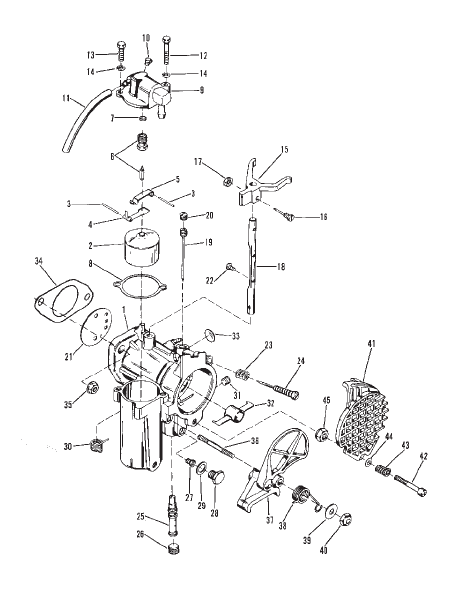

CARBURETOR ASSEMBLY
Parts (51)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9018 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЕТАЛЕЙ REPAIR PARTS KIT |
1 | superseded |
| - | 4808 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 85489A87 |
GASKET SET GASKET SET |
1 | discontinued |
| 1 | 7226A19 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | discontinued |
| 10 | 6249 |
ВОДОМЕТНЫЙ Главн. (0.096) JET Main (.096) |
1 | |
| 10 | 5733 |
ВОДОМЕТНЫЙ Главн. (0.092) (WMK-38) JET Main (.092) (WMK-38) |
1 | |
| 11 | 5734 |
РУКАВ ECONOMIZER HOSE ECONOMIZER |
1 | discontinued |
| 12 | 52195 |
ВИНТ FLOAT BOWL COVER SCREW FLOAT BOWL COVER |
1 | discontinued |
| 13 | 4804 |
ВИНТ FLOAT BOWL COVER SCREW FLOAT BOWL COVER |
1 | discontinued |
| 14 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь LOCKWASHER (#8) Stainless Steel |
2 | |
| 15 | 92880 |
РЫЧАГ THROTTLE LEVER THROTTLE |
1 | discontinued |
| 16 | 60293 |
ВИНТ (№5-40 x 0.500) THROTTLE LEVER SCREW (#5-40 x .500) THROTTLE LEVER |
1 | discontinued |
| 17 | 92500 |
ГАЙКА ТОЛКАТЕЛЯ THROTTLE LEVER SCREW PUSH NUT THROTTLE LEVER SCREW |
1 | discontinued |
| 18 | 8641 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | discontinued |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Idle Tube NOT SOLD SEPARATE Idle Tube |
1 | |
| 2 | 8983 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
1 | superseded |
| 20 | 4540 |
ВИНТ BODY (IDLE TUBE ) SCREW BODY (IDLE TUBE ) |
1 | discontinued |
| 21 | 9017 |
ЗАСЛОНКА Дроссельная заслонка SHUTTER Throttle |
1 | discontinued |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw and Lockwasher NOT SOLD SEPARATE Screw and Lockwasher |
2 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, idle adjustment screw NOT SOLD SEPARATE Spring, idle adjustment screw |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, idle adjustment NOT SOLD SEPARATE Screw, idle adjustment |
1 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Main Nozzle NOT SOLD SEPARATE Main Nozzle |
1 | |
| 26 | 4542 |
ВИНТ PLUG - MAIN NOZZLE SCREW PLUG - MAIN NOZZLE |
1 | discontinued |
| 27 | 6030 |
ВОДОМЕТНЫЙ (0.070) MAIN FUEL JET (.070) MAIN FUEL |
OPT | |
| 27 | 6207 |
ВОДОМЕТНЫЙ (0.072) MAIN FUEL JET (.072) MAIN FUEL |
1 | |
| 27 | 3794 |
ВОДОМЕТНЫЙ (0.074) MAIN FUEL JET (.074) MAIN FUEL |
OPT | |
| 28 | 4541 |
ВИНТ PLUG - MAIN FUEL JET CHANNEL SCREW PLUG - MAIN FUEL JET CHANNEL |
1 | |
| 29 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, jet channel plug screw NOT SOLD SEPARATE Gasket, jet channel plug screw |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin, float lever pinion NOT SOLD SEPARATE Pin, float lever pinion |
2 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, throttle shaft return NOT SOLD SEPARATE Spring, throttle shaft return |
1 | |
| 31 | 4543 |
ВИНТ BODY CHANNEL SCREW BODY CHANNEL |
1 | discontinued |
| 32 | 52106A1 |
ДИФФУЗОР Пластик VENTURI Plastic |
1 | |
| 33 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Welch Plug, body channel NOT SOLD SEPARATE Welch Plug, body channel |
1 | |
| 34 | 481641 |
ПРОКЛАДКА CARBURETOR FLANGE GASKET CARBURETOR FLANGE |
1 | |
| 35 | 64809 |
ГАЙКА CARBURETOR MOUNTING STUD NUT CARBURETOR MOUNTING STUD |
2 | discontinued |
| 36 | 69016 |
ШПИЛЬКА CHOKE SHUTTER PIVOT STUD CHOKE SHUTTER PIVOT |
1 | discontinued |
| 37 | 55179 |
ЗАСЛОНКА Обогатитель SHUTTER Choke |
1 | discontinued |
| 38 | 55163 |
ПРУЖИНА TENSION - CHOKE SHUTTER SPRING TENSION - CHOKE SHUTTER |
1 | discontinued |
| 39 | 47960 |
ШАЙБА WASHER |
1 | discontinued |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Lever, float (Lower) NOT SOLD SEPARATE Lever, float (Lower) |
1 | |
| 40 | 20110 |
ГАЙКА (№10-32) CHOKE SHUTTER NUT (#10-32) CHOKE SHUTTER |
1 | |
| 41 | 57819 |
ЭКРАН SCREEN |
1 | discontinued |
| 42 | 58185 |
ВИНТ (№10-32 x 1.00) SCREW (#10-32 x 1.00) |
1 | discontinued |
| 43 | 57818 |
ПРУЖИНА TENSION SPRING TENSION |
1 | discontinued |
| 44 | 46101 |
ШАЙБА WASHER |
1 | superseded |
| 45 | 20110 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Lever, float (Upper) NOT SOLD SEPARATE Lever, float (Upper) |
1 | |
| 6 | 8318 |
ИГЛА Впуск SEAT AND GASKET NEEDLE Inlet SEAT AND GASKET |
1 | superseded |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, inlet seat NOT SOLD SEPARATE Gasket, inlet seat |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, float bowl cover NOT SOLD SEPARATE Gasket, float bowl cover |
1 | |
| 9 | 9016 |
КРЫШКА FLOAT BOWL COVER FLOAT BOWL |
1 | discontinued |
