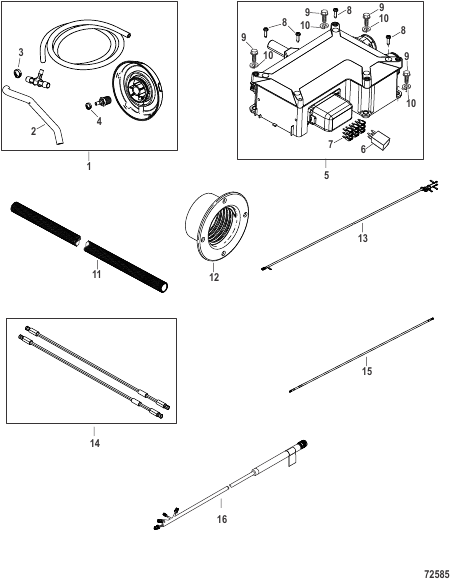

Accessories
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0221498 |
COVER-STORAGE 600HP COVER-STORAGE 600HP |
1 | |
| - | 8M0228539 |
COVER-STORAGE 600HP White COVER-STORAGE 600HP White |
1 | |
| - | 8M0228528 |
COVER-VENTED 600HP Black COVER-VENTED 600HP Black |
1 | |
| - | 8M0228529 |
COVER-VENTED 600HP White COVER-VENTED 600HP White |
1 | |
| - | 8M0144607 |
РАЗЪЕДИНИТЕЛЬ АККУМУЛЯТОРА 160 А BATTERY ISOLATOR 160 Ampere |
AR | discontinued |
| - | 8M0217507 |
BATTERY ISOLATOR 250 Ampere BATTERY ISOLATOR 250 Ampere |
1 | |
| - | 8M0175114 |
HARNESS ADAPTOR HARNESS ADAPTOR |
1 | |
| - | 8M0176937 |
HARNESS EXTENSION 5 FT HARNESS EXTENSION 5 FT |
1 | |
| - | 8M0176939 |
HARNESS EXTENSION 10 FT HARNESS EXTENSION 10 FT |
1 | |
| - | 8M0176940 |
HARNESS EXTENSION 15 FT HARNESS EXTENSION 15 FT |
1 | |
| - | 8M0176941 |
HARNESS EXTENSION 20 FT HARNESS EXTENSION 20 FT |
1 | |
| - | 8M0176942 |
HARNESS EXTENSION 25 FT HARNESS EXTENSION 25 FT |
1 | |
| 1 | 8M0177357 |
TELL TALE KIT TELL TALE KIT |
1 | |
| 10 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
4 | |
| 11 | 8M0180055 |
RIG TUBE White (5 Foot) RIG TUBE White (5 Foot) |
AR | |
| 11 | 8M0180056 |
RIG TUBE White (50 Foot) RIG TUBE White (50 Foot) |
AR | |
| 11 | 8M0180053 |
RIG TUBE Black (5 Foot) RIG TUBE Black (5 Foot) |
AR | |
| 11 | 8M0180054 |
RIG TUBE Black (50 Foot) RIG TUBE Black (50 Foot) |
AR | |
| 12 | 8M0180071 |
HOUSING Rig Hose HOUSING Rig Hose |
1 | |
| 13 | 8M0150521 |
POWER HARNESS 3 FT POWER HARNESS 3 FT |
1 | |
| 13 | 8M0150522 |
POWER HARNESS 6 FT POWER HARNESS 6 FT |
1 | |
| 13 | 899887T13 |
ЖГУТ ПРОВОДОВ В СБОРЕ Электропроводка, питание (10 фт.) HARNESS ASSEMBLY Wiring, Power (10 Feet) |
1 | |
| 13 | 8M0150523 |
POWER HARNESS 15 FT POWER HARNESS 15 FT |
1 | |
| 13 | 899887T14 |
ЖГУТ ПРОВОДОВ В СБОРЕ Электропроводка, питание (20 фт.) HARNESS ASSEMBLY Wiring, Power (20 Feet) |
1 | |
| 13 | 8M0150524 |
POWER HARNESS 25 FT POWER HARNESS 25 FT |
1 | |
| 14 | 8M0149414 |
CABLE KIT Battery CABLE KIT Battery |
1 | |
| 15 | 8M0171478 |
CABLE Battery Isolator CABLE Battery Isolator |
1 | |
| 16 | 8M0171475 |
HARNESS 21 Pin Umbilical (10 Foot) HARNESS 21 Pin Umbilical (10 Foot) |
AR | |
| 16 | 8M0171476 |
HARNESS 21 Pin Umbilical (15 Foot) HARNESS 21 Pin Umbilical (15 Foot) |
AR | |
| 16 | 8M0171477 |
HARNESS 21 Pin Umbilical (20 Foot) HARNESS 21 Pin Umbilical (20 Foot) |
AR | |
| 2 | 8M0177676 |
HOSE HOSE |
1 | |
| 3 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
4 | |
| 4 | 855697 |
ЗАЖИМ CLAMP |
2 | superseded |
| 5 | 8M0168337 |
RIG CENTER RIG CENTER |
1 | |
| 6 | 8M0231744 |
RELAY Micro ISO 12VDC 280 RELAY Micro ISO 12VDC 280 |
2 | |
| 7 | 8329692 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – серый – 2 A FUSE Mini - Gray - 2 Ampere |
1 | superseded |
| 7 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
1 | |
| 7 | 896755 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Зеленый – 30 ампер/32 вольт FUSE Green - 30 Ampere/32 Volts |
1 | |
| 8 | 88904 |
ВИНТ (№8-18 x 0.620) SCREW (#8-18 x .620) |
4 | |
| 9 | 4000327 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
4 |
