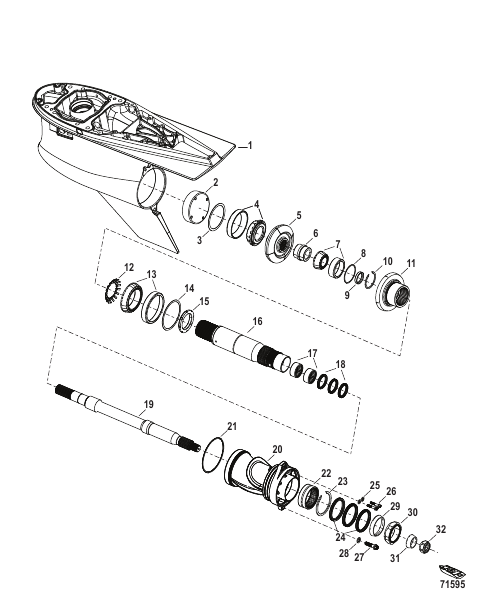

Gear Housing Propeller Shaft
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0174564 |
GEAR HOUSING ASSEMBLY Complete GEAR HOUSING ASSEMBLY Complete |
1 | |
| 1 | 8M0174565 |
GEAR HOUSING ASSEMBLY Basic GEAR HOUSING ASSEMBLY Basic |
1 | |
| 10 | 8M0177417 |
RING Retaining RING Retaining |
1 | |
| 11 | 8M0177412 |
GEAR SET GEAR SET |
1 | |
| 12 | 8M0177419 |
WASHER WASHER |
1 | superseded |
| 13 | 8M0177420 |
BEARING Taper BEARING Taper |
1 | |
| 14 | 8M0155682 |
SHIM SET SHIM SET |
1 | |
| 15 | 8M0177422 |
NUT NUT |
1 | |
| 16 | 8M0177423 |
PROPSHAFT Outer PROPSHAFT Outer |
1 | |
| 17 | 8M0177424 |
BEARING Needle BEARING Needle |
2 | |
| 18 | 8M0177425 |
SEAL SEAL |
3 | |
| 19 | 8M0177426 |
PROPSHAFT Inner PROPSHAFT Inner |
1 | |
| 2 | 8M0177409 |
PLUG Nose Cone PLUG Nose Cone |
1 | |
| 20 | 8M0177427 |
BEARING CARRIER ASSEMBLY BEARING CARRIER ASSEMBLY |
1 | |
| 21 | 8M0177428 |
O-RING O-RING |
1 | superseded |
| 22 | 8M0177429 |
BEARING Needle BEARING Needle |
1 | |
| 23 | 8M0185887 |
RING Retaining RING Retaining |
1 | |
| 24 | 8M0177430 |
SEAL SEAL |
3 | |
| 25 | 8M0177431 |
WASHER WASHER |
2 | |
| 26 | 8M0084475 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
2 | |
| 27 | 8M0177432 |
SCREW SCREW |
1 | |
| 28 | 8M0177433 |
WASHER WASHER |
1 | |
| 29 | 8M0176912 |
THRUST WASHER Front THRUST WASHER Front |
1 | |
| 3 | 8M0155681 |
SHIM SET SHIM SET |
1 | |
| 30 | 8M0176914 |
PROP NUT Front PROP NUT Front |
1 | |
| 31 | 8M0176913 |
THRUST WASHER Rear THRUST WASHER Rear |
1 | |
| 32 | 8M0176915 |
PROP NUT Rear PROP NUT Rear |
1 | |
| 4 | 8M0177411 |
BEARING Taper BEARING Taper |
1 | |
| 5 | 8M0177412 |
GEAR SET GEAR SET |
1 | |
| 6 | 8M0177413 |
SLEEVE SLEEVE |
1 | |
| 7 | 8M0177414 |
BEARING Taper BEARING Taper |
1 | |
| 8 | 8M0155671 |
SHIM SET SHIM SET |
1 | |
| 9 | 8M0177416 |
SPACER SPACER |
1 |
