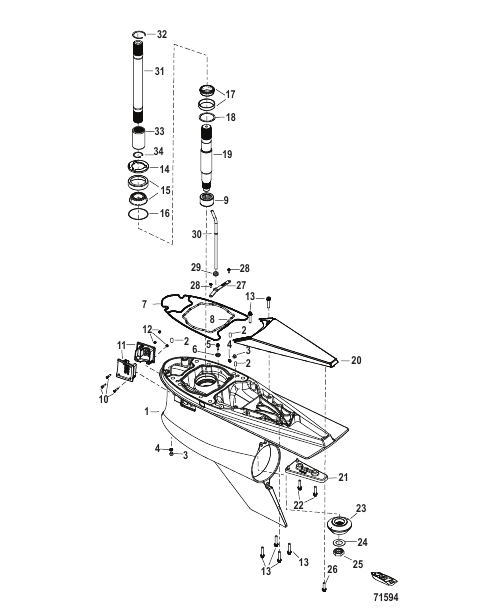

Gear Housing Driveshaft
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0174564 |
GEAR HOUSING ASSEMBLY Complete GEAR HOUSING ASSEMBLY Complete |
1 | |
| 1 | 8M0174565 |
GEAR HOUSING ASSEMBLY Basic GEAR HOUSING ASSEMBLY Basic |
1 | |
| 10 | 8M0177434 |
SCREW SCREW |
3 | |
| 11 | 8M0177435 |
WATER INLET (Fully Ventilated) WATER INLET (Fully Ventilated) |
1 | |
| 11 | 8M0207396 |
SCREENS Water Inlet (Drillable) SCREENS Water Inlet (Drillable) |
1 | |
| 12 | 401365 |
ГАЙКА (M5), нержавеющая сталь NUT (M5) Stainless Steel |
3 | |
| 13 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
6 | |
| 14 | 8M0177447 |
RETAINER RETAINER |
1 | |
| 15 | 8M0177448 |
BEARING Taper BEARING Taper |
1 | |
| 16 | 8M0163601 |
SHIM SET SHIM SET |
1 | |
| 17 | 8M0177450 |
BEARING Taper BEARING Taper |
1 | |
| 18 | 8M0063263 |
SHIM SET SHIM SET |
1 | |
| 19 | 8M0177451 |
DRIVESHAFT Lower DRIVESHAFT Lower |
1 | |
| 2 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
3 | |
| 20 | 8M0177452 |
COVER Anode COVER Anode |
1 | |
| 21 | 8M0177453 |
ANODE Aluminum ANODE Aluminum |
1 | |
| 21 | 8M0179229 |
ANODE Magnesium (Not Included In Complete Gear Housing) ANODE Magnesium (Not Included In Complete Gear Housing) |
1 | |
| 22 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
2 | |
| 23 | 8M0177412 |
GEAR SET GEAR SET |
1 | |
| 24 | 8M0177455 |
WASHER WASHER |
1 | |
| 25 | 8M0177456 |
NUT NUT |
1 | |
| 26 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
1 | |
| 27 | 8M0177439 |
PLATE Vent Tube PLATE Vent Tube |
1 | |
| 28 | 40011106 |
ВИНТ (M5 x 13), нержавеющая сталь SCREW (M5 x 13) Stainless Steel |
2 | |
| 29 | 828249 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 3 | 8M0177436 |
SCREW (.375 x16) SCREW (.375 x16) |
2 | |
| 30 | 8M0177440 |
TUBE Vent TUBE Vent |
1 | |
| 31 | 8M0177441 |
DRIVESHAFT Upper (L) DRIVESHAFT Upper (L) |
1 | |
| 31 | 8M0177442 |
DRIVESHAFT Upper (XL) DRIVESHAFT Upper (XL) |
1 | |
| 31 | 8M0177443 |
DRIVESHAFT Upper (XXL) DRIVESHAFT Upper (XXL) |
1 | |
| 31 | 8M0177444 |
DRIVESHAFT Upper (XXXL) DRIVESHAFT Upper (XXXL) |
1 | |
| 32 | 8M0204558 |
RETAINING RING RETAINING RING |
1 | |
| 33 | 8M0177445 |
COUPLER COUPLER |
1 | |
| 34 | 8M0177446 |
RETAINING RING RETAINING RING |
1 | |
| 4 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 5 | 892073002 |
ВИНТ С БУРТИКОМ (M6) SHOULDER SCREW (M6) |
1 | superseded |
| 6 | 8M0050602 |
МАГНИТ MAGNET |
1 | |
| 7 | 8M0177437 |
SEAL Gearcase Cover SEAL Gearcase Cover |
1 | |
| 8 | 8M0177438 |
SEAL Kingpin SEAL Kingpin |
1 | |
| 9 | 86754T |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 |
