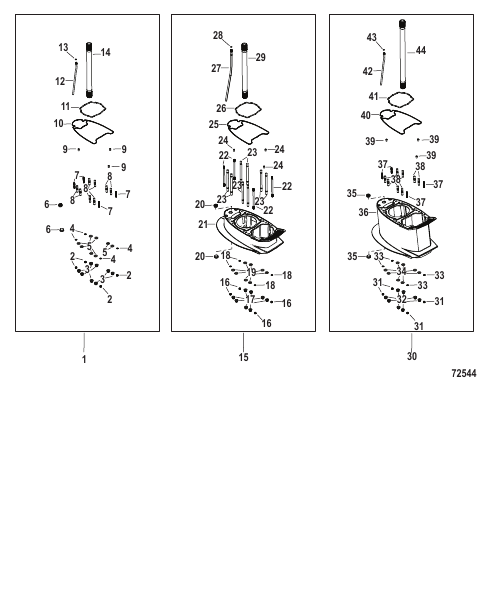

Driveshaft Extension Kits
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177989 |
CONVERSION KIT (XXL/XXXL To XL) CONVERSION KIT (XXL/XXXL To XL) |
1 | |
| 10 | 8M0177437 |
SEAL Gearcase Cover SEAL Gearcase Cover |
1 | |
| 11 | 8M0177438 |
SEAL Kingpin SEAL Kingpin |
1 | |
| 12 | 8M0177583 |
TUBE ASSEMBLY Lube Level TUBE ASSEMBLY Lube Level |
1 | |
| 13 | 8M0177582 |
O-RING O-RING |
1 | |
| 14 | 8M0177442 |
DRIVESHAFT Upper DRIVESHAFT Upper |
1 | |
| 15 | 8M0177855 |
SPACER KIT 5 Inch (XL/XXXL To XXL) SPACER KIT 5 Inch (XL/XXXL To XXL) |
1 | |
| 16 | 8M0179913 |
NUT (M8) NUT (M8) |
4 | |
| 17 | 8M0177570 |
NUT NUT |
8 | |
| 18 | 12038 |
ШАЙБА WASHER |
4 | superseded |
| 19 | 8M0177571 |
WASHER WASHER |
8 | |
| 2 | 8M0179913 |
NUT (M8) NUT (M8) |
4 | |
| 20 | 8M0087453 |
ПРОБКА (24 мм) PLUG (24 MM) |
2 | |
| 21 | 8M0177568 |
SPACER Gearcase SPACER Gearcase |
1 | |
| 22 | 8M0177573 |
STUD STUD |
4 | |
| 23 | 8M0177576 |
STUD STUD |
8 | |
| 24 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
3 | |
| 25 | 8M0177437 |
SEAL Gearcase Cover SEAL Gearcase Cover |
1 | |
| 26 | 8M0177438 |
SEAL Kingpin SEAL Kingpin |
1 | |
| 27 | 8M0177580 |
TUBE ASSEMBLY Lube Extraction TUBE ASSEMBLY Lube Extraction |
1 | |
| 28 | 8M0177582 |
O-RING O-RING |
1 | |
| 29 | 8M0177443 |
DRIVESHAFT Upper DRIVESHAFT Upper |
1 | |
| 3 | 8M0177570 |
NUT NUT |
8 | |
| 30 | 8M0177856 |
SPACER KIT 10 Inch (XL/XXL To XXXL) SPACER KIT 10 Inch (XL/XXL To XXXL) |
1 | |
| 31 | 8M0179913 |
NUT (M8) NUT (M8) |
4 | |
| 32 | 8M0177570 |
NUT NUT |
8 | |
| 33 | 12038 |
ШАЙБА WASHER |
4 | superseded |
| 34 | 8M0177571 |
WASHER WASHER |
8 | |
| 35 | 8M0087453 |
ПРОБКА (24 мм) PLUG (24 MM) |
2 | |
| 36 | 8M0177569 |
SPACER Gearcase SPACER Gearcase |
1 | |
| 37 | 8M0177574 |
STUD STUD |
1 | |
| 38 | 8M0177577 |
STUD STUD |
8 | |
| 39 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
3 | |
| 4 | 12038 |
ШАЙБА WASHER |
4 | superseded |
| 40 | 8M0177437 |
SEAL Gearcase Cover SEAL Gearcase Cover |
1 | |
| 41 | 8M0177438 |
SEAL Kingpin SEAL Kingpin |
1 | |
| 42 | 8M0177581 |
TUBE ASSEMBLY Lube Extraction TUBE ASSEMBLY Lube Extraction |
1 | |
| 43 | 8M0177582 |
O-RING O-RING |
1 | |
| 44 | 8M0177444 |
DRIVESHAFT Upper DRIVESHAFT Upper |
1 | |
| 5 | 8M0177571 |
WASHER WASHER |
8 | |
| 6 | 8M0087453 |
ПРОБКА (24 мм) PLUG (24 MM) |
2 | |
| 7 | 8M0177572 |
STUD STUD |
4 | |
| 8 | 8M0177575 |
STUD STUD |
8 | |
| 9 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
3 |
