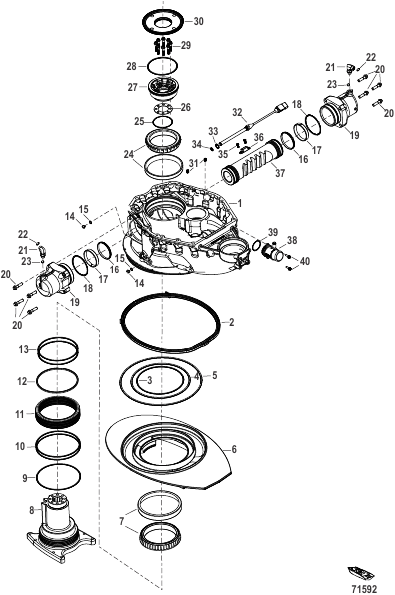

Power Steering Actuator Assembly
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0177511 |
SEAL KIT Power Steering Housing SEAL KIT Power Steering Housing |
1 | superseded |
| - | 8M0177510 |
SEAL KIT Power Steering Cylinder SEAL KIT Power Steering Cylinder |
1 | |
| 1 | 8M0177480 |
HOUSING ASSEMBLY Steering (L) HOUSING ASSEMBLY Steering (L) |
1 | superseded |
| 1 | 8M0177481 |
HOUSING ASSEMBLY Steering (XL/XXL/XXXL) HOUSING ASSEMBLY Steering (XL/XXL/XXXL) |
1 | superseded |
| 10 | 8M0177491 |
O-RING Outside O-RING Outside |
2 | |
| 11 | 8M0177490 |
CARRIER Seal CARRIER Seal |
1 | |
| 12 | 8M0177488 |
SEAL-POLYPAK Inside SEAL-POLYPAK Inside |
1 | |
| 13 | 8M0177489 |
O-RING Inside O-RING Inside |
2 | |
| 14 | 8M0177436 |
SCREW (.375 x16) SCREW (.375 x16) |
2 | |
| 15 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 16 | 8M0177493 |
SEAL Power Steering Cylinder SEAL Power Steering Cylinder |
2 | |
| 17 | 8M0177494 |
WEARBAND WEARBAND |
2 | |
| 18 | 861844 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | superseded |
| 19 | 8M0177495 |
END CAP END CAP |
2 | |
| 2 | 8M0177482 |
SEAL Lower Cowl (L) SEAL Lower Cowl (L) |
1 | |
| 2 | 8M0177483 |
SEAL Lower Cowl (XL/XXL/XXXL) SEAL Lower Cowl (XL/XXL/XXXL) |
1 | |
| 20 | 8M0177496 |
SCREW Power Steering SCREW Power Steering |
8 | |
| 21 | 8M0033227 |
ФИТИНГ 90 градусов (нержавеющая сталь) FITTING 90 Degree (Stainless Steel) |
2 | |
| 22 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) O-RING (.364. x .070) |
1 | |
| 23 | 8M0047401 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.468 x 0.078) O-RING (.468 X .078) |
1 | |
| 24 | 8M0177497 |
BEARING Taper BEARING Taper |
1 | |
| 25 | 62700 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.237 x 0.103) O-RING (3.237 x .103) |
1 | |
| 26 | 8M0177498 |
SHIM SET SHIM SET |
1 | |
| 27 | 8M0177499 |
RETAINER RETAINER |
1 | |
| 28 | 8M0177500 |
O-RING O-RING |
1 | |
| 29 | 8M0177501 |
SCREW SCREW |
8 | |
| 3 | 8M0177484 |
O-RING (7.984 X .139) O-RING (7.984 X .139) |
1 | superseded |
| 30 | 8M0177502 |
SEAL-STEERING HOUSING SEAL-STEERING HOUSING |
1 | |
| 31 | 8M0177503 |
SCREW SCREW |
2 | |
| 32 | 8M0177504 |
SENSOR Steering Postion SENSOR Steering Postion |
1 | superseded |
| 33 | 831985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.468 x 0.078) O-RING (.468 x .078) |
1 | |
| 34 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) O-RING (.364. x .070) |
1 | |
| 35 | 8M0177505 |
SCREW SCREW |
2 | |
| 36 | 8M0179318 |
SENSOR Steering, Magnet SENSOR Steering, Magnet |
1 | |
| 37 | 8M0181132 |
PISTON Steering Rack PISTON Steering Rack |
1 | |
| 38 | 8M0177507 |
FITTING FITTING |
1 | |
| 39 | 8M0177508 |
O-RING O-RING |
1 | |
| 4 | 8M0177485 |
O-RING (9.975 X .210) O-RING (9.975 X .210) |
1 | superseded |
| 40 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
2 | |
| 5 | 8M0177486 |
O-RING (13.975 X .210) O-RING (13.975 X .210) |
1 | superseded |
| 6 | 8M0177487 |
COVER Gearcase COVER Gearcase |
1 | |
| 7 | 8M0177492 |
BEARING Taper BEARING Taper |
1 | |
| 8 | 8M0177578 |
KINGPIN ASSEMBLY (L) KINGPIN ASSEMBLY (L) |
1 | |
| 8 | 8M0177579 |
KINGPIN ASSEMBLY (XL/XXL/XXXL) KINGPIN ASSEMBLY (XL/XXL/XXXL) |
1 | superseded |
| 9 | 8M0182817 |
O-RING Outside O-RING Outside |
1 |
