Parts Catalog

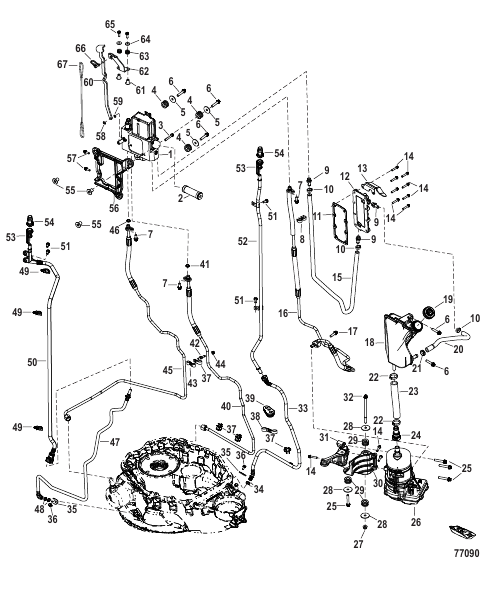

Power Steering Pump and Hoses

Parts (69)

#	Part Number	Description	Qty	Status
1	8M0177512	MANIFOLD-POWER STEERING ASSEMBLY MANIFOLD-POWER STEERING ASSEMBLY	1
10	877617	ЗАЖИМ CLAMP	3	superseded
11	8M0177516	GASKET Power Steering Cover GASKET Power Steering Cover	1
12	8M0177517	COVER Cooler COVER Cooler	1
13	8M0177518	BRACKET Cowl Deflector BRACKET Cowl Deflector	1
14	8M0103808	ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel	10
15	8M0177519	HOSE Return Manifold HOSE Return Manifold	1
16	8M0177520	HOSE ASSEMBY Pump to Manifold HOSE ASSEMBY Pump to Manifold	1
17	8M0103813	ВИНТ (M8 x 30) SCREW (M8 x 30)	1
18	8M0177521	RESERVOIR Power Steering RESERVOIR Power Steering	1
19	8M0177522	CAP Reservoir CAP Reservoir	1
2	8M0182675	  FILTER KIT FILTER KIT	1
20	8M0177523	HOSE Cooler to Reservoir Return HOSE Cooler to Reservoir Return	1
21	848764	ЗАЖИМ (21 мм) CLAMP (21 mm)	1
22	8M6001924	ЗАЖИМ CLAMP	2
23	8M0180026	HOSE Reservoir to Power Steering Pump HOSE Reservoir to Power Steering Pump	1
24	8M0179994	CONNECTOR Quick CONNECTOR Quick	1
25	8M0103816	SCREW M8 x 50 HEX FLG SCREW M8 x 50 HEX FLG	4
26	8M0177524	PUMP Power Steering PUMP Power Steering	1
27	8M0088686	ГАЙКА (M8 X 1.25) NUT (M8 X 1.25)	1
28	8M0177525	WASHER WASHER	3
29	8M0180455	ISOLATOR ISOLATOR	3
3	8M0103810	ВИНТ (M6 x 45 мм), нержавеющая сталь SCREW (M6 x 45 MM) Stainless Steel	1
30	8M0177526	BRACKET Power Steering Pump BRACKET Power Steering Pump	1
31	8M0177527	BRACKET BRACKET	1
32	8M0177528	SCREW SCREW	1
33	8M0177529	TUBE Lower Fill (L) TUBE Lower Fill (L)	1
33	8M0177530	TUBE Lower Fill (XL/XXL/XXXL) TUBE Lower Fill (XL/XXL/XXXL)	1
34	8M0142481	  УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103)	2
35	8M0177531	RETAINER RETAINER	2
36	8M0103804	ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel	2
37	8M0177532	CLIP CLIP	3
38	843023	ЗАЖИМ CLIP	3
39	8M0177533	GROMMET GROMMET	1
4	8M0177513	GROMMET GROMMET	3
40	8M0177534	HOSE ASSEMBLY Manifold to Cylinder (Starboard) HOSE ASSEMBLY Manifold to Cylinder (Starboard)	1
41	8M0221315	  O-RING O-RING	1
42	8M0099404	STUD STUD	1
43	8M0177535	P-CLIP P-CLIP	2
44	892233	ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel	1
45	8M0177536	HOSE ASSEMBLY Manifold to Cylinder (Port) HOSE ASSEMBLY Manifold to Cylinder (Port)	1
46	8M0221315	  O-RING O-RING	1
47	8M0177537	TUBE Vent (L) TUBE Vent (L)	1
47	8M0177538	TUBE Vent (XL/XXL/XXXL) TUBE Vent (XL/XXL/XXXL)	1
48	8M0142481	  УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103)	2
49	899145	ЗАЖИМ Ленточный хомут CLIP Tie Strap	3
5	8M0142674	ШАЙБА Плоск. WASHER Plain	3
50	8M0179257	TUBE Vent Gearcase Upper TUBE Vent Gearcase Upper	1
51	8M0177539	SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD	4
52	8M0177540	TUBE Remote Gearcase Fill TUBE Remote Gearcase Fill	1
53	8M0177541	TETHER TETHER	2
54	8M0177542	CAP CAP	2	superseded
55	8M0177543	BUSHING BUSHING	3
56	8M0177544	BRACKET Power Steering Manifold BRACKET Power Steering Manifold	1
57	8M0103806	ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel	2
58	8M0180029	RETAINING RING RETAINING RING	1
59	29720	ВОЛНИСТАЯ ШАЙБА WAVE WASHER	1
6	8M0103815	ВИНТ SCREW	5
60	8M0177545	B-ARM Bypass Valve B-ARM Bypass Valve	1
61	822003	ВТУЛКА BUSHING	2
62	8M0177546	BRACKET Bypass Valve BRACKET Bypass Valve	1
63	834985	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET	2	superseded
64	65567	ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel	2
65	8M0178188	SCREW (M6 x 28) SCREW (M6 x 28)	2
66	8M0177547	A-PIN A-PIN	1
67	8M0187622	LANYARD LANYARD	1
7	88552620	ВИНТ (M8 x 20) SCREW (M8 x 20)	3
8	8M0177514	CLIP CLIP	1
9	8M0177515	FITTING FITTING	3
