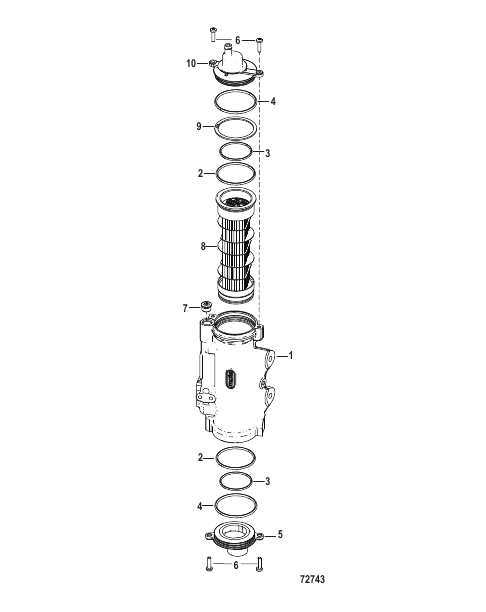

Transmission Oil Cooler Components
Parts (10)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177650 |
COOLER Transmission Oil COOLER Transmission Oil |
1 | |
| 10 | 8M0181548 |
COVER Inlet COVER Inlet |
1 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-ring NOT SOLD SEPARATE O-ring |
2 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-ring NOT SOLD SEPARATE O-ring |
2 | |
| 4 | 8M0181554 |
O-RING (74.61 x 3.53) O-RING (74.61 x 3.53) |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover NOT SOLD SEPARATE Cover |
1 | |
| 6 | 8M0181551 |
SCREW SCREW |
4 | |
| 7 | 8M0087451 |
ПРОБКА (18 ММ) PLUG (18MM) |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Tubestack NOT SOLD SEPARATE Tubestack |
1 | |
| 9 | 8M0181555 |
RETAINING RING RETAINING RING |
1 |
