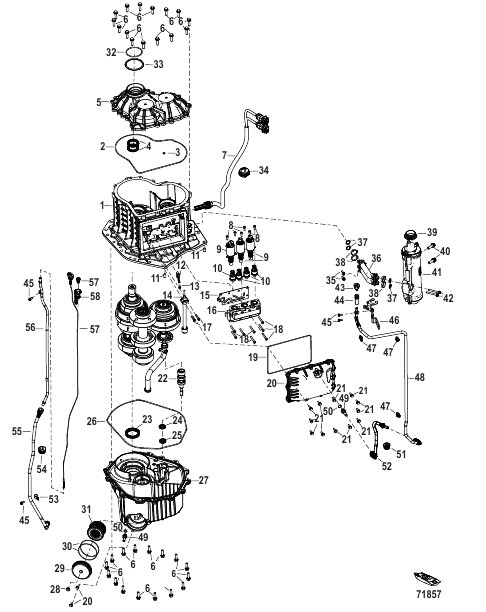

Transmission
Parts (59)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177586 |
TRANSMISSION TRANSMISSION |
1 | superseded |
| 10 | 8M0177634 |
SENSOR Pressure SENSOR Pressure |
4 | |
| 11 | 8M0190115 |
DOWEL PIN DOWEL PIN |
2 | |
| 12 | 8M0177636 |
SENSOR Speed SENSOR Speed |
1 | |
| 13 | 4010618 |
ВИНТ (M6 x 18), нержавеющая сталь SCREW (M6 x 18) Stainless Steel |
1 | |
| 14 | 8M0177637 |
SENSOR Fluid Level SENSOR Fluid Level |
1 | |
| 15 | 8M0177635 |
GASKET Hydraulic Control Unit GASKET Hydraulic Control Unit |
1 | |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Adapter Block NOT SOLD SEPARATE Adapter Block |
1 | |
| 17 | 8M0177638 |
SCREW SCREW |
2 | |
| 18 | 8M0177639 |
SCREW SCREW |
8 | |
| 19 | 8M0177640 |
O-RING Hydraulic Control Unit O-RING Hydraulic Control Unit |
1 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-Ring, Top Cover NOT SOLD SEPARATE O-Ring, Top Cover |
1 | |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover- Hydraulic Control Unit NOT SOLD SEPARATE Cover- Hydraulic Control Unit |
1 | |
| 21 | 8M0177641 |
SCREW SCREW |
14 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PTO Shaft NOT SOLD SEPARATE PTO Shaft |
1 | |
| 23 | 8M0177642 |
SEAL Output SEAL Output |
1 | |
| 24 | 8M0177643 |
SEAL PTO Upper SEAL PTO Upper |
1 | |
| 25 | 8M0199464 |
SEAL PTO Lower SEAL PTO Lower |
1 | |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-Ring NOT SOLD SEPARATE O-Ring |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover- Bottom Transmission NOT SOLD SEPARATE Cover- Bottom Transmission |
1 | |
| 28 | 8M0190116 |
PLUG PLUG |
1 | |
| 29 | 8M0177644 |
COVER Filter COVER Filter |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-Ring NOT SOLD SEPARATE O-Ring |
1 | |
| 30 | 8M0177645 |
O-RING Filter O-RING Filter |
2 | |
| 31 | 8M0177646 |
FILTER Transmission FILTER Transmission |
1 | |
| 32 | 8M0177478 |
O-RING ID 2.975 Inches O-RING ID 2.975 Inches |
1 | |
| 33 | 8M0177647 |
O-RING ID 3.35 Inches O-RING ID 3.35 Inches |
1 | |
| 34 | 8M0177648 |
GROMMET GROMMET |
1 | |
| 35 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 36 | 8M0180456 |
HOSE ASSEMBLY Transmission to Cooler HOSE ASSEMBLY Transmission to Cooler |
1 | |
| 37 | 45711 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.612 x 0.103) O-RING (.612 x .103) |
4 | |
| 38 | 8M0062089 |
ЗАЖИМ CLAMP |
4 | |
| 39 | 8M0177649 |
GROMMET GROMMET |
1 | |
| 4 | 8M0177630 |
SEAL Input Shaft SEAL Input Shaft |
2 | |
| 40 | 892086035 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
2 | |
| 41 | 8M0177650 |
COOLER Transmission Oil COOLER Transmission Oil |
1 | |
| 42 | 8M0142726 |
ВИНТ (M6) SCREW (M6) |
2 | |
| 43 | 8M0177651 |
VENT VENT |
1 | |
| 44 | 8M0177652 |
ADAPTER Breather ADAPTER Breather |
1 | |
| 45 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
4 | |
| 46 | 8M0177653 |
BRACKET BRACKET |
1 | |
| 47 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
3 | |
| 48 | 8M0177654 |
TUBE Vent TUBE Vent |
1 | |
| 49 | 8M0177655 |
FITTING FITTING |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover, Top Transmission NOT SOLD SEPARATE Cover, Top Transmission |
1 | |
| 50 | 831985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.468 x 0.078) O-RING (.468 x .078) |
2 | |
| 51 | 8M0177656 |
GROMMET GROMMET |
1 | |
| 52 | 8M0177657 |
TUBE Vent TUBE Vent |
1 | |
| 53 | 858424 |
ЗАЖИМ CLAMP |
1 | |
| 54 | 8M0177658 |
GROMMET GROMMET |
1 | |
| 55 | 8M0177659 |
TUBE Lower Dipstick, Transmission TUBE Lower Dipstick, Transmission |
1 | |
| 56 | 8M0177660 |
TUBE Upper Dipstick, Transmission TUBE Upper Dipstick, Transmission |
1 | |
| 57 | 8M0177661 |
DIPSTICK Transmission DIPSTICK Transmission |
1 | discontinued |
| 57 | 8M0191351 |
CAP Transmission CAP Transmission |
1 | |
| 58 | 8M0177541 |
TETHER Used with cap 8M0191351 TETHER Used with cap 8M0191351 |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw NOT SOLD SEPARATE Screw |
31 | |
| 7 | 8M0177631 |
HARNESS-TRANSMISSION HARNESS-TRANSMISSION |
1 | |
| 8 | 8M0177632 |
SCREW SCREW |
6 | |
| 9 | 8M0190117 |
SHIFT VALVE SHIFT VALVE |
3 |
