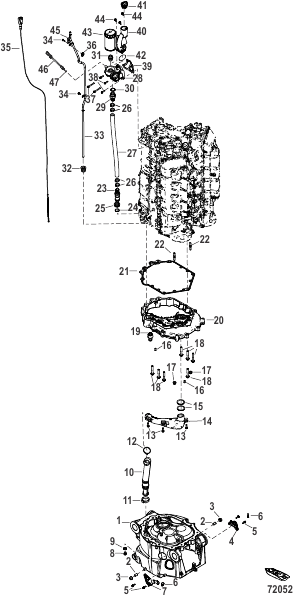

Oil System
Parts (51)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178231 |
LONG BLOCK [3B332191] & Below LONG BLOCK [3B332191] & Below |
1 | |
| - | 8M0227276 |
LONG BLOCK [3B332192] & Up LONG BLOCK [3B332192] & Up |
1 | |
| - | 8M0178234 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | superseded |
| 1 | 8M0177567 |
SUMP Oil Engine SUMP Oil Engine |
1 | |
| 10 | 8M0177600 |
HOSE ASSEMBLY Oil Pickup HOSE ASSEMBLY Oil Pickup |
1 | |
| 11 | 8M6001459 |
ЗАЖИМ (45.5) CLAMP (45.5) |
1 | |
| 12 | 8M0177602 |
CLAMP CLAMP |
1 | |
| 13 | 85593920 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
3 | |
| 14 | 8M0178625 |
TUBE ASSEMBLY Oil Pickup TUBE ASSEMBLY Oil Pickup |
1 | superseded |
| 15 | 8M0178641 |
O-RING O-RING |
2 | |
| 16 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 17 | 8M0177603 |
NUT NUT |
2 | |
| 18 | 8M0177604 |
SCREW SCREW |
7 | |
| 19 | 8M0177613 |
PRESSURE RELIEF VALVE PRESSURE RELIEF VALVE |
1 | |
| 2 | 8M0177596 |
BUMPER Stand Off BUMPER Stand Off |
2 | |
| 20 | 8M0177606 |
ADAPTER PLATE Oil Pump ADAPTER PLATE Oil Pump |
1 | superseded |
| 21 | 8M0177595 |
GASKET Adapter Plate GASKET Adapter Plate |
1 | |
| 22 | 8M0177605 |
STUD STUD |
2 | |
| 23 | 8M0177614 |
FITTING FITTING |
1 | |
| 24 | 8M0178623 |
O-RING O-RING |
1 | |
| 25 | 8M0178642 |
GROMMET GROMMET |
1 | |
| 26 | 850896 |
ЗАЖИМ (28.6) CLAMP (28.6) |
4 | |
| 27 | 8M0177615 |
HOSE HOSE |
1 | |
| 28 | 8M0177616 |
HOUSING ASSEMBLY Oil Filter HOUSING ASSEMBLY Oil Filter |
1 | |
| 29 | 8M0177617 |
FITTING FITTING |
1 | |
| 3 | 8M0142713 |
ПРОБКА Опора захвата CAP Chap Support |
2 | |
| 30 | 8M0179954 |
O-RING O-RING |
1 | |
| 31 | 8M0177619 |
FITTING Oil Filter FITTING Oil Filter |
1 | |
| 32 | 8M0178207 |
GROMMET Engine Oil Dipstick GROMMET Engine Oil Dipstick |
1 | |
| 33 | 8M0177620 |
TUBE Dipstick Engine Oil TUBE Dipstick Engine Oil |
1 | |
| 34 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
2 | |
| 35 | 8M0177628 |
DIPSTICK Engine Oil DIPSTICK Engine Oil |
1 | |
| 36 | 855941 |
ШАЙБА (0.323 x 0.590 x 0.112), нержавеющая сталь WASHER (.323 x .590 x .112) Stainless Steel |
1 | |
| 37 | 897657055 |
ВИНТ (M6 x 55) SCREW (M6 x 55) |
2 | |
| 38 | 897657025 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
3 | |
| 39 | 8M0177622 |
GASKET Adapter Oil Filter GASKET Adapter Oil Filter |
1 | |
| 4 | 8M0177597 |
SPRAYER Oil Sump SPRAYER Oil Sump |
1 | |
| 40 | 8M0177623 |
TUBE Oil Fill TUBE Oil Fill |
1 | |
| 41 | 8M0177624 |
CAP ASSEMBLY CAP ASSEMBLY |
1 | |
| 42 | 891935 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 43 | 8M0168366 |
FILTER Oil FILTER Oil |
1 | |
| 44 | 8M0177627 |
SCREW SCREW |
3 | |
| 45 | 8M0233522 |
ADAPTER CLIP KIT [3B331370] & Below ADAPTER CLIP KIT [3B331370] & Below |
1 | |
| 45 | 8M0180030 |
CLIP Connector [3B331371] & Up CLIP Connector [3B331371] & Up |
1 | |
| 46 | 8M0205787 |
SENSOR Temperature SENSOR Temperature |
1 | |
| 47 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 5 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
4 | |
| 6 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 7 | 8M0177599 |
SPRAYER Oil Sump SPRAYER Oil Sump |
1 | |
| 8 | 888592005 |
УЗЕЛ ПРОБКИ Слив масла PLUG ASSEMBLY Oil Drain |
1 | |
| 9 | 888593 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
