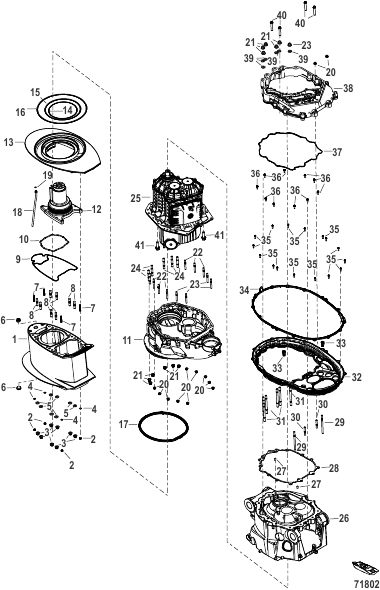

Midsection Fasteners and Seals
Parts (51)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177568 |
SPACER Gearcase (XXL) SPACER Gearcase (XXL) |
1 | |
| 1 | 8M0177569 |
SPACER Gearcase (XXXL) SPACER Gearcase (XXXL) |
1 | |
| 10 | 8M0177438 |
SEAL Kingpin (XXL/XXXL) SEAL Kingpin (XXL/XXXL) |
1 | |
| 11 | 8M0177480 |
HOUSING ASSEMBLY Steering (L) HOUSING ASSEMBLY Steering (L) |
1 | superseded |
| 11 | 8M0177481 |
HOUSING ASSEMBLY Steering (XL/XXL/XXXL) HOUSING ASSEMBLY Steering (XL/XXL/XXXL) |
1 | superseded |
| 12 | 8M0177578 |
KINGPIN ASSEMBLY (L) KINGPIN ASSEMBLY (L) |
1 | |
| 12 | 8M0177579 |
KINGPIN ASSEMBLY (XL/XXL/XXXL) KINGPIN ASSEMBLY (XL/XXL/XXXL) |
1 | superseded |
| 13 | 8M0177487 |
COVER Gearcase COVER Gearcase |
1 | |
| 14 | 8M0177484 |
O-RING (7.984 X .139) O-RING (7.984 X .139) |
1 | superseded |
| 15 | 8M0177485 |
O-RING (9.975 X .210) O-RING (9.975 X .210) |
1 | superseded |
| 16 | 8M0177486 |
O-RING (13.975 X .210) O-RING (13.975 X .210) |
1 | superseded |
| 17 | 8M0177482 |
SEAL Lower Cowl (L) SEAL Lower Cowl (L) |
1 | |
| 17 | 8M0177483 |
SEAL Lower Cowl (XL/XXL/XXXL) SEAL Lower Cowl (XL/XXL/XXXL) |
1 | |
| 18 | 8M0177583 |
TUBE ASSEMBLY Lube Level (L/XL) TUBE ASSEMBLY Lube Level (L/XL) |
1 | |
| 18 | 8M0177580 |
TUBE ASSEMBLY Lube Extraction (XXL) TUBE ASSEMBLY Lube Extraction (XXL) |
1 | |
| 18 | 8M0177581 |
TUBE ASSEMBLY Lube Extraction (XXXL) TUBE ASSEMBLY Lube Extraction (XXXL) |
1 | |
| 19 | 8M0177582 |
O-RING O-RING |
1 | |
| 2 | 8M0179913 |
NUT (M8) NUT (M8) |
4 | |
| 20 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
12 | |
| 21 | 8M0177570 |
NUT NUT |
12 | |
| 22 | 8M0158595 |
STUD (M10) STUD (M10) |
6 | |
| 23 | 8M0182276 |
STUD STUD |
4 | |
| 24 | 8M0177509 |
STUD STUD |
6 | |
| 25 | 8M0177586 |
TRANSMISSION TRANSMISSION |
1 | superseded |
| 26 | 8M0177567 |
SUMP Oil Engine SUMP Oil Engine |
1 | |
| 27 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 28 | 8M0177595 |
GASKET Adapter Plate GASKET Adapter Plate |
1 | |
| 29 | 8M0177594 |
STUD STUD |
2 | |
| 3 | 8M0177570 |
NUT NUT |
8 | |
| 30 | 8M0177593 |
STUD STUD |
2 | |
| 31 | 8M0177592 |
STUD STUD |
6 | |
| 32 | 8M0177591 |
PLATE Pass Through PLATE Pass Through |
1 | superseded |
| 33 | 8M0142710 |
СЛИВ Кожух DRAIN Cowl |
2 | |
| 34 | 8M0177587 |
PLATE Retaining PLATE Retaining |
1 | |
| 35 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
16 | |
| 36 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
10 | |
| 37 | 8M0177590 |
SEAL Pass ThroughPlate SEAL Pass ThroughPlate |
1 | |
| 38 | 8M0177606 |
ADAPTER PLATE Oil Pump ADAPTER PLATE Oil Pump |
1 | superseded |
| 39 | 8M0177571 |
WASHER WASHER |
6 | |
| 4 | 12038 |
ШАЙБА WASHER |
4 | superseded |
| 40 | 8M0177589 |
SCREW SCREW |
4 | |
| 41 | 892086035 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
2 | |
| 5 | 8M0177571 |
WASHER WASHER |
8 | |
| 6 | 8M0087453 |
ПРОБКА (24 мм) (XXL/XXXL) PLUG (24 MM) (XXL/XXXL) |
2 | |
| 7 | 8M0177572 |
STUD (L/XL) STUD (L/XL) |
4 | |
| 7 | 8M0177573 |
STUD (XXL) STUD (XXL) |
4 | |
| 7 | 8M0177574 |
STUD (XXXL) STUD (XXXL) |
4 | |
| 8 | 8M0177575 |
STUD (L/XL) STUD (L/XL) |
8 | |
| 8 | 8M0177576 |
STUD (XXL) STUD (XXL) |
8 | |
| 8 | 8M0177577 |
STUD (XXXL) STUD (XXXL) |
8 | |
| 9 | 8M0177437 |
SEAL Gearcase Cover (XXL/XXXL) SEAL Gearcase Cover (XXL/XXXL) |
1 |
