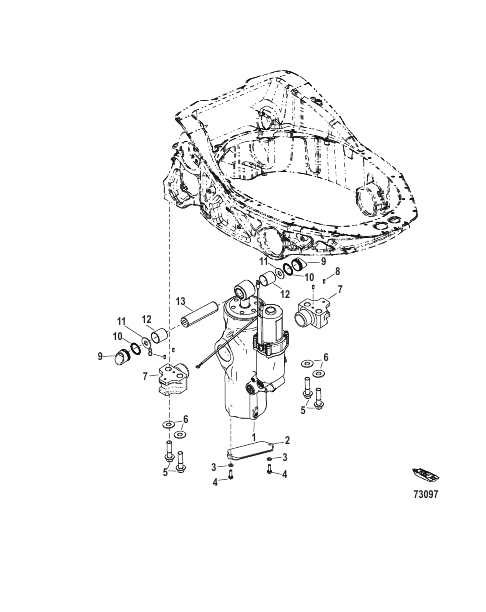

Power Trim Mounting Components
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0178608 |
POWER TRIM ASSEMBLY POWER TRIM ASSEMBLY |
1 | superseded |
| 10 | 8M0180034 |
RETAINING RING RETAINING RING |
2 | |
| 11 | 8M0179997 |
WASHER WASHER |
2 | |
| 12 | 8M0180025 |
BEARING BEARING |
2 | |
| 13 | 8M0178621 |
PIN Trim PIN Trim |
1 | |
| 2 | 8M0179780 |
ANODE Aluminum ANODE Aluminum |
1 | |
| 2 | 8M0179781 |
ANODE Magnesium ANODE Magnesium |
1 | |
| 3 | 8M0161430 |
WASHER Flat WASHER Flat |
2 | |
| 4 | 8M0206596 |
SCREW (M6 x 20) SCREW (M6 x 20) |
2 | |
| 5 | 8M0179996 |
SCREW (M16) SCREW (M16) |
4 | |
| 6 | 8M0179998 |
WASHER (31.7 mm x 17.38 mm x 1.6 mm) WASHER (31.7 mm x 17.38 mm x 1.6 mm) |
4 | |
| 7 | 8M0180021 |
PIN Power Trim PIN Power Trim |
2 | superseded |
| 8 | 8M0084726 |
ШТИФТ Штифт PIN Dowel |
4 | |
| 9 | 8M0179790 |
PLUG PLUG |
2 |
