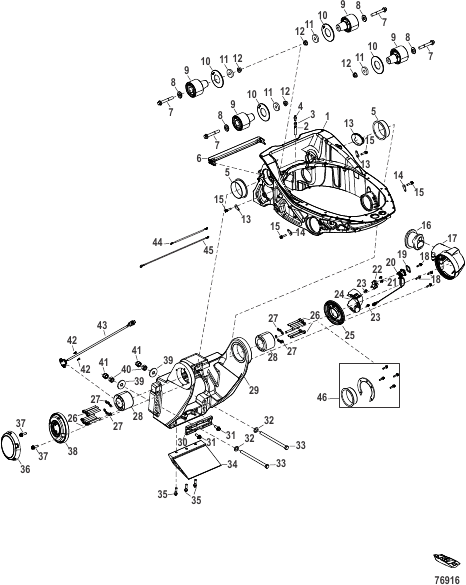

Transom
Parts (62)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0180471 |
RIGGING ELBOW RIGGING ELBOW |
1 | |
| 1 | 8M0177548 |
FRAME-CRADLE FRAME-CRADLE |
1 | |
| 10 | 8M0177553 |
SNUBBER MOUNT SNUBBER MOUNT |
4 | |
| 11 | 8M0177554 |
WASHER WASHER |
4 | |
| 12 | 8M0177555 |
NUT NUT |
4 | |
| 13 | 8M0180024 |
SLEEVE Wire SLEEVE Wire |
1 | |
| 14 | 8M0142816 |
ШАЙБА Крепление WASHER Mount |
4 | |
| 15 | 8M0103814 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
4 | |
| 16 | 8M0179992 |
GROMMET Trim Wire GROMMET Trim Wire |
1 | |
| 17 | 8M0180033 |
COVER Rigging Elbow COVER Rigging Elbow |
1 | superseded |
| 18 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
4 | |
| 19 | 8M0180498 |
SEAL Switch Body SEAL Switch Body |
1 | |
| 2 | 8M0177549 |
CHECK VALVE ASSEMBLY CHECK VALVE ASSEMBLY |
1 | |
| 20 | 8M0178611 |
SWITCH Trim SWITCH Trim |
1 | superseded |
| 21 | 87775510 |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
3 | |
| 22 | 8M0180497 |
PEDESTAL Trim Switch PEDESTAL Trim Switch |
1 | |
| 23 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
2 | |
| 24 | 8M0180499 |
SHEATH SHEATH |
1 | |
| 25 | 8M0180496 |
PLATE Rigging Elbow PLATE Rigging Elbow |
1 | |
| 26 | 8M0177556 |
SCREW SCREW |
14 | |
| 27 | 897937 |
ШАЙБА WASHER |
14 | |
| 28 | 8M0177557 |
TILT PIN TILT PIN |
2 | |
| 29 | 8M0177558 |
TRANSOM BRACKET (L) TRANSOM BRACKET (L) |
1 | |
| 29 | 8M0177559 |
TRANSOM BRACKET (XL/XXL/XXXL) TRANSOM BRACKET (XL/XXL/XXXL) |
1 | |
| 3 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 30 | 8M0177560 |
ANODE Aluminum ANODE Aluminum |
1 | |
| 30 | 8M0179705 |
ANODE Magnesium ANODE Magnesium |
1 | |
| 31 | 8M0187149 |
SCREW M12 SCREW M12 |
2 | |
| 32 | 8M0176905 |
WASHER WASHER |
AR | |
| 33 | 8M0171826 |
SCREW 5/8 X 5.5" SCREW 5/8 X 5.5" |
6 | |
| 33 | 8M0171827 |
SCREW 5/8 X 5.5" (Pack of 6) SCREW 5/8 X 5.5" (Pack of 6) |
6 | |
| 33 | 8M0171828 |
SCREW 5/8 X 6.5" SCREW 5/8 X 6.5" |
6 | |
| 33 | 8M0171829 |
SCREW 5/8 X 6.5" (Pack of 6) SCREW 5/8 X 6.5" (Pack of 6) |
6 | |
| 33 | 8M0171830 |
SCREW 5/8 X 7.5" SCREW 5/8 X 7.5" |
6 | |
| 33 | 8M0171831 |
SCREW 5/8 X 7.5" (Pack of 6) SCREW 5/8 X 7.5" (Pack of 6) |
6 | |
| 33 | 8M0171832 |
SCREW 5/8 X 8.5" SCREW 5/8 X 8.5" |
6 | |
| 33 | 8M0171833 |
SCREW 5/8 X 8.5" (Pack of 6) SCREW 5/8 X 8.5" (Pack of 6) |
6 | |
| 33 | 8M0171834 |
SCREW 5/8 X 9.5" SCREW 5/8 X 9.5" |
6 | |
| 33 | 8M0171835 |
SCREW 5/8 X 9.5" (Pack of 6) SCREW 5/8 X 9.5" (Pack of 6) |
6 | |
| 33 | 8M0171836 |
SCREW 5/8 X 10.5" SCREW 5/8 X 10.5" |
6 | |
| 33 | 8M0171837 |
SCREW 5/8 X 10.5" (Pack of 6) SCREW 5/8 X 10.5" (Pack of 6) |
6 | |
| 33 | 8M0176953 |
SCREW 5/8 X 12.0" SCREW 5/8 X 12.0" |
6 | |
| 33 | 8M0176954 |
SCREW 5/8 X 12.0" (Pack of 6) SCREW 5/8 X 12.0" (Pack of 6) |
6 | |
| 34 | 8M0177561 |
PLATE Splash PLATE Splash |
1 | |
| 35 | 8M0069689 |
ВИНТ (M10x1.5x40), шестигранный фланец SCREW (M10x1.5x40) Hex Flange |
3 | |
| 36 | 8M0177562 |
COVER Tell Tale Assembly COVER Tell Tale Assembly |
1 | |
| 37 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
2 | |
| 38 | 8M0177563 |
BRACKET Tell Tale BRACKET Tell Tale |
1 | |
| 39 | 8M0176906 |
WASHER WASHER |
AR | |
| 4 | 291112 |
ФИТИНГ FITTING |
1 | |
| 40 | 8M0176904 |
NUT NUT |
6 | |
| 41 | 8M0176903 |
NUT NUT |
6 | |
| 42 | 8M0179995 |
SCREW SCREW |
2 | |
| 43 | 8M0178609 |
SENSOR Trim Assembly SENSOR Trim Assembly |
1 | |
| 44 | 8M0177565 |
CABLE Ground Strap CABLE Ground Strap |
1 | |
| 45 | 8M0177566 |
CABLE Ground Strap CABLE Ground Strap |
1 | |
| 46 | 8M0189105 |
SPACER KIT Rigging Elbow SPACER KIT Rigging Elbow |
1 | |
| 5 | 8M0177550 |
BUSHING Pivot Cradle BUSHING Pivot Cradle |
2 | |
| 6 | 8M0177551 |
SEAL Transom Assembly SEAL Transom Assembly |
1 | |
| 7 | 8M0154651 |
SCREW (M14 x 2 x 100 HX FLG) SCREW (M14 x 2 x 100 HX FLG) |
4 | superseded |
| 8 | 8M0142711 |
ШАЙБА (28,4 ММ X 1,6 ММ) WASHER (28.4 MM x 1.6 MM) |
4 | superseded |
| 9 | 8M0177552 |
MOUNT MOUNT |
4 |
