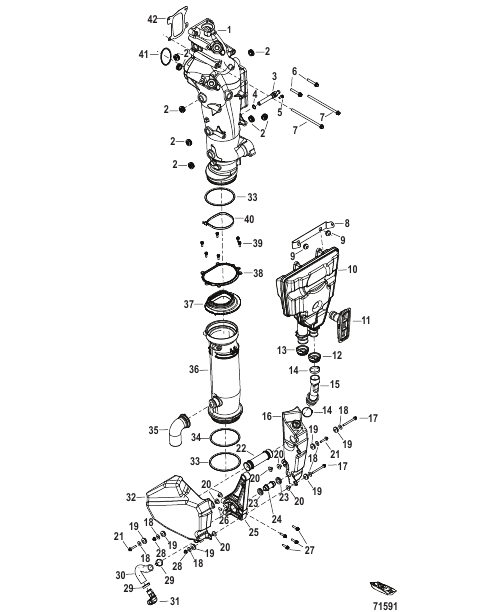

Exhaust
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178231 |
LONG BLOCK [3B322191] & Below LONG BLOCK [3B322191] & Below |
1 | |
| - | 8M0227276 |
LONG BLOCK [3B322192] & Up LONG BLOCK [3B322192] & Up |
1 | |
| - | 8M0178234 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | superseded |
| 1 | 8M0177457 |
EXHAUST MANIFOLD Upper EXHAUST MANIFOLD Upper |
1 | |
| 10 | 8M0177461 |
MUFFLER Upper MUFFLER Upper |
1 | |
| 11 | 8M0177462 |
OUTLET Idle Relief OUTLET Idle Relief |
1 | |
| 12 | 8M0177463 |
GROMMET Idle Relief (Starboard) GROMMET Idle Relief (Starboard) |
1 | |
| 13 | 8M0177464 |
GROMMET Idle Relief (Port) GROMMET Idle Relief (Port) |
1 | |
| 14 | 888988011 |
ЗАЖИМ (38,1 ММ) CLAMP (38.1 MM) |
2 | |
| 15 | 8M0177465 |
HOSE Idle Relief HOSE Idle Relief |
1 | |
| 16 | 8M0177466 |
MUFFLER (Starboard) MUFFLER (Starboard) |
1 | |
| 17 | 88552560 |
ВИНТ (M6 x60) SCREW (M6 x60) |
2 | |
| 18 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
6 | |
| 19 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
6 | superseded |
| 2 | 8M0177458 |
PLUG PLUG |
8 | |
| 20 | 822003 |
ВТУЛКА BUSHING |
6 | |
| 21 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | |
| 22 | 8M0177467 |
HOSE Crossover HOSE Crossover |
1 | |
| 23 | 8M0190556 |
GROMMET GROMMET |
2 | |
| 24 | 8M0177468 |
TUBE Muffler Cross Drain TUBE Muffler Cross Drain |
1 | |
| 25 | 8M0177469 |
BRACKET Chaps BRACKET Chaps |
1 | superseded |
| 26 | 892228 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 27 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
4 | |
| 28 | 892233 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 29 | 855228 |
ЗАЖИМ CLAMP |
2 | |
| 3 | 8M0178414 |
FITTING FITTING |
1 | |
| 30 | 8M0180027 |
HOSE Muffler Drain HOSE Muffler Drain |
1 | |
| 31 | 8M0180023 |
FITTING FITTING |
1 | |
| 32 | 8M0177470 |
MUFFLER (Port) MUFFLER (Port) |
1 | superseded |
| 33 | 8M0177471 |
SEAL Exhaust SEAL Exhaust |
2 | |
| 34 | 8M0177472 |
O-RING O-RING |
1 | |
| 35 | 8M0177473 |
GROMMET Idle Relief Exhaust GROMMET Idle Relief Exhaust |
1 | |
| 36 | 8M0177474 |
EXHAUST MANIFOLD Lower EXHAUST MANIFOLD Lower |
1 | |
| 37 | 8M0177475 |
SEAL Exhaust Lower SEAL Exhaust Lower |
1 | |
| 38 | 8M0177476 |
PLATE Exhaust Lower PLATE Exhaust Lower |
1 | |
| 39 | 897445501 |
ВИНТ (M6 x 20 мм) SCREW (M6 x 20 MM) |
6 | |
| 4 | 892446 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (14 X 1.78 мм) O-RING (14 X 1.78 MM) |
1 | |
| 40 | 8M0177477 |
CLIP CLIP |
1 | |
| 41 | 8M0177478 |
O-RING ID 2.975 Inches O-RING ID 2.975 Inches |
1 | |
| 42 | 8M0177479 |
GASKET Exhaust Manifold GASKET Exhaust Manifold |
1 | |
| 5 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 6 | 8M0103816 |
SCREW M8 x 50 HEX FLG SCREW M8 x 50 HEX FLG |
2 | |
| 7 | 8M0177459 |
SCREW SCREW |
2 | |
| 8 | 8M0177460 |
BRACKET Muffler BRACKET Muffler |
1 | |
| 9 | 818967 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 |
