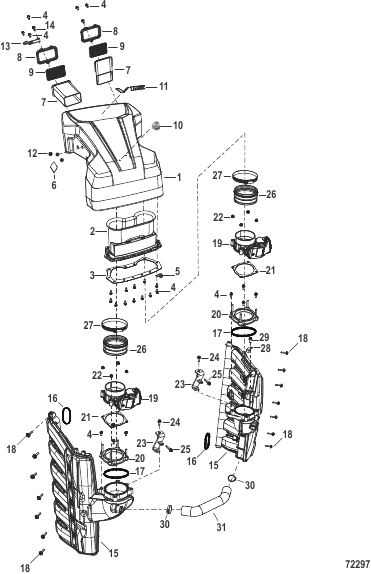

Intake System
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0179361 |
INTAKE ASSEMBLY Cold Air [3B331370] & Below INTAKE ASSEMBLY Cold Air [3B331370] & Below |
1 | |
| - | 8M0217922 |
INTAKE ASSEMBLY Cold Air [3B331371] & Up INTAKE ASSEMBLY Cold Air [3B331371] & Up |
1 | |
| 1 | 8M0179362 |
PLENUM Upper Intake [3B331370] & Below PLENUM Upper Intake [3B331370] & Below |
1 | |
| 1 | 8M0227561 |
PLENUM Upper Intake [3B331371] & Up PLENUM Upper Intake [3B331371] & Up |
1 | |
| 10 | 8M0179371 |
M-ICON 39 MM Small M-ICON 39 MM Small |
1 | |
| 11 | 8M0178229 |
DECAL V12 DECAL V12 |
1 | |
| 12 | 8M0179370 |
GROMMET GROMMET |
3 | |
| 13 | 8M0179369 |
BRACKET Airbox (Starboard) BRACKET Airbox (Starboard) |
1 | |
| 14 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
1 | |
| 15 | 8M0179375 |
INTAKE MANIFOLD (Starboard) INTAKE MANIFOLD (Starboard) |
1 | |
| 15 | 8M0179376 |
INTAKE MANIFOLD (Port) INTAKE MANIFOLD (Port) |
1 | |
| 16 | 8M0245318 |
SEAL Head Set contains 6 seals SEAL Head Set contains 6 seals |
1 | |
| 17 | 8M0245317 |
SEAL ETC SEAL ETC |
1 | |
| 18 | 8M0142554 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
14 | |
| 19 | 8M0158067 |
THROTTLE BODY ASSEMBLY 80 MM THROTTLE BODY ASSEMBLY 80 MM |
2 | superseded |
| 2 | 8M0179363 |
STACK ATTENUATOR STACK ATTENUATOR |
1 | discontinued |
| 20 | 8M0179373 |
ISOLATER ISOLATER |
2 | superseded |
| 21 | 8M0109442 |
ПРОКЛАДКА GASKET Throttle Body |
2 | |
| 22 | 8M0147750 |
ГАЙКА (M6) NUT (M6) |
8 | superseded |
| 23 | 8M0179378 |
BRACKET Plenum BRACKET Plenum |
2 | |
| 24 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 25 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
2 | |
| 26 | 8M0179372 |
COUPLER ASSEMBLY Throttle Body COUPLER ASSEMBLY Throttle Body |
2 | |
| 27 | 815504256 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 28 | 8M0179374 |
BRACKET Map Sensor BRACKET Map Sensor |
1 | |
| 29 | 895054 |
ВИНТ (M4 x 16 мм) SCREW (M4 x 16 MM) |
1 | |
| 3 | 8M0179364 |
GASKET Intake GASKET Intake |
1 | |
| 30 | 8M0204719 |
CLAMP 36.1 MM CLAMP 36.1 MM |
2 | |
| 31 | 8M0179377 |
HOSE Balance Assembly HOSE Balance Assembly |
1 | |
| 4 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
19 | |
| 5 | 642351 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 6 | 8M0179365 |
DECAL Steering Bypass DECAL Steering Bypass |
1 | |
| 7 | 8M0179366 |
TUBE INLET TUBE INLET |
2 | |
| 8 | 8M0179367 |
COVER Intake Screen COVER Intake Screen |
2 | |
| 9 | 8M0179368 |
SCREEN SCREEN |
2 |
