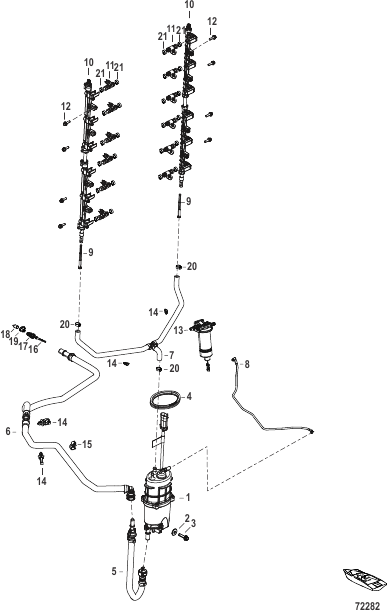

Fuel System
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178231 |
LONG BLOCK [3B332191] & Below LONG BLOCK [3B332191] & Below |
1 | |
| - | 8M0227276 |
LONG BLOCK [3B332192] & Up LONG BLOCK [3B332192] & Up |
1 | |
| 1 | 8M0178250 |
FUEL SUPPLY MODULE FUEL SUPPLY MODULE |
1 | superseded |
| 10 | 8M0179350 |
FUEL RAIL ASSEMBLY (Starboard) FUEL RAIL ASSEMBLY (Starboard) |
1 | superseded |
| 10 | 8M0179349 |
FUEL RAIL ASSEMBLY (Port) FUEL RAIL ASSEMBLY (Port) |
1 | superseded |
| 11 | 8M0178252 |
FUEL INJECTOR FUEL INJECTOR |
12 | |
| 12 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
8 | |
| 13 | 8M0166540 |
FUEL FILTER KIT MPP FUEL FILTER KIT MPP |
1 | |
| 14 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
5 | |
| 15 | 8M0179352 |
CLIP Double Hose CLIP Double Hose |
1 | |
| 16 | 8M0179353 |
SCREEN Fuel Filter SCREEN Fuel Filter |
1 | |
| 17 | 8M0179354 |
QUICK CONNECT QUICK CONNECT |
1 | |
| 18 | 8M0180022 |
CAP CAP |
1 | |
| 19 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 2 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
1 | |
| 20 | 855697 |
ЗАЖИМ CLAMP |
3 | superseded |
| 21 | 8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings ORING KIT Contains 6 Upper and Lower Orings |
2 | |
| 3 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
1 | |
| 4 | 8M0037209 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Фиксатор FSM GROMMET FSM Retainer |
1 | |
| 5 | 8M0179345 |
HOSE ASSEMBLY Fuel In HOSE ASSEMBLY Fuel In |
1 | |
| 6 | 8M0179346 |
HOSE ASSEMBLY Fuel Inlet HOSE ASSEMBLY Fuel Inlet |
1 | |
| 7 | 8M0179347 |
HOSE ASSEMBLY Fuel Out HOSE ASSEMBLY Fuel Out |
1 | |
| 8 | 8M0179348 |
HOSE ASSEMBLY Manifold Ref HOSE ASSEMBLY Manifold Ref |
1 | superseded |
| 9 | 8M0090809 |
ФИЛЬТР Fuel Rail SCREEN Fuel Rail Fuel Rail |
2 |
