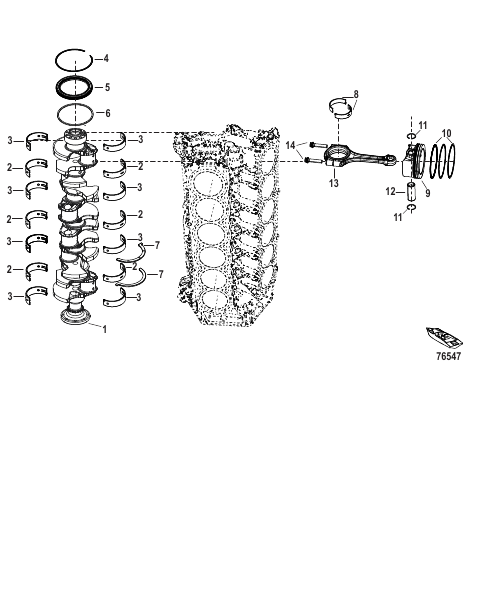

Crankshaft, Pistons and Connecting Rods
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0211865 |
PLUG KIT Crankshaft PLUG KIT Crankshaft |
1 | |
| - | 8M0178231 |
LONG BLOCK [3B332191] & Below LONG BLOCK [3B332191] & Below |
1 | |
| - | 8M0227276 |
LONG BLOCK [3B332192] & Up LONG BLOCK [3B332192] & Up |
1 | |
| - | 8M0178234 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | superseded |
| 1 | 8M0179287 |
CRANKSHAFT ASSEMBLY CRANKSHAFT ASSEMBLY |
1 | |
| 10 | 8M0179297 |
PISTON RING ASSEMBLY PISTON RING ASSEMBLY |
12 | |
| 11 | 8M0179298 |
CIRCLIP CIRCLIP |
24 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Wrist Pin NOT SOLD SEPARATE Wrist Pin |
12 | |
| 13 | 8M0179262 |
CONNECTING ROD ASSEMBLY CONNECTING ROD ASSEMBLY |
12 | |
| 14 | 8M0179300 |
BOLT Rod BOLT Rod |
16 | |
| 2 | 8M0218081 |
BEARING MAIN Green Main Journal 2, 4, 6 BEARING MAIN Green Main Journal 2, 4, 6 |
AR | |
| 2 | 8M0218080 |
BEARING MAIN Blue Main Journal 2, 4, 6 BEARING MAIN Blue Main Journal 2, 4, 6 |
AR | |
| 2 | 8M0218079 |
BEARING MAIN White Main Journal 2, 4, 6 BEARING MAIN White Main Journal 2, 4, 6 |
AR | |
| 2 | 8M0218078 |
BEARING MAIN Orange Main Journal 2, 4, 6 BEARING MAIN Orange Main Journal 2, 4, 6 |
AR | |
| 3 | 8M0179288 |
BEARING MAIN Green Main Journal 1, 3, 5, 7 BEARING MAIN Green Main Journal 1, 3, 5, 7 |
AR | |
| 3 | 8M0179289 |
BEARING MAIN Blue Main Journal 1, 3, 5, 7 BEARING MAIN Blue Main Journal 1, 3, 5, 7 |
AR | |
| 3 | 8M0179290 |
BEARING MAIN White Main Journal 1, 3, 5, 7 BEARING MAIN White Main Journal 1, 3, 5, 7 |
AR | |
| 3 | 8M0179291 |
BEARING MAIN Orange Main Journal 1, 3, 5, 7 BEARING MAIN Orange Main Journal 1, 3, 5, 7 |
AR | |
| 4 | 8M0142386 |
СТОПОРНОЕ КОЛЬЦО RING RETAINING |
1 | |
| 5 | 8M0168880 |
SEAL Main Bearing SEAL Main Bearing |
1 | |
| 6 | 8M0142385 |
ПРОСТАВКА SPACER |
1 | |
| 7 | 8M0179292 |
WASHER Thrust WASHER Thrust |
1 | |
| 8 | 8M0179293 |
BEARING CONNECTING ROD Green BEARING CONNECTING ROD Green |
AR | |
| 8 | 8M0179294 |
BEARING CONNECTING ROD Blue BEARING CONNECTING ROD Blue |
AR | |
| 8 | 8M0179295 |
BEARING CONNECTING ROD White BEARING CONNECTING ROD White |
AR | |
| 9 | 8M0179296 |
PISTON ASSEMBLY Anodized PISTON ASSEMBLY Anodized |
12 |
