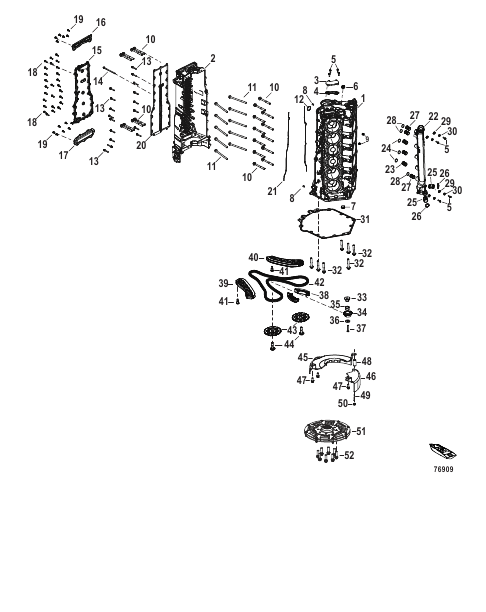

Cylinder Block Serial 3B332192 and Up
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0227276 |
LONG BLOCK LONG BLOCK |
1 | |
| - | 8M0178234 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | superseded |
| 1 | 8M0179274 |
CYLINDER BLOCK CYLINDER BLOCK |
1 | |
| 10 | 8M0142346 |
ВИНТ (M11 x 107 мм) 12-ТОЧЕЧН. ШЕСТИГР. ГОЛОВКА 12 are included in Cylinder Block SCREW (M11 x 107 MM) 12 POINT HEX HEAD 12 are included in Cylinder Block |
18 | |
| 11 | 8M0178218 |
SCREW M10 x 150 SCREW M10 x 150 |
10 | |
| 12 | 889828 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.924 x 0.103) O-RING (.924 x .103) |
1 | |
| 13 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
18 | |
| 14 | 8M0179283 |
SCREW M6 x 120 SCREW M6 x 120 |
1 | |
| 15 | 8M0179284 |
COVER Oil Cooler COVER Oil Cooler |
1 | |
| 16 | 8M0180224 |
COVER Bedplate COVER Bedplate |
1 | |
| 17 | 8M0180225 |
COVER BEDPLATE COVER BEDPLATE |
1 | |
| 18 | 8M0179592 |
SCREW M6 x 20 SCREW M6 x 20 |
26 | |
| 19 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
13 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bedplate Cover NOT SOLD SEPARATE Bedplate Cover |
1 | |
| 20 | 8M0179286 |
COVER Gasket Cooler COVER Gasket Cooler |
1 | |
| 21 | 8M0179285 |
SEAL SEAL |
1 | superseded |
| 22 | 8M0219854 |
VALLEY PIPE ASSEMBLY VALLEY PIPE ASSEMBLY |
1 | |
| 23 | 8M0181166 |
CONNECTOR CONNECTOR |
3 | |
| 24 | 8M0180223 |
O-RING O-RING |
3 | |
| 25 | 8M0181167 |
CONNECTOR CONNECTOR |
2 | |
| 26 | 38780 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 27 | 8M0181168 |
CONNECTOR CONNECTOR |
3 | |
| 28 | 55801 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
3 | |
| 29 | 8M0180222 |
GROMMET GROMMET |
4 | |
| 3 | 8M0179275 |
COVER PLATE COVER PLATE |
1 | superseded |
| 30 | 8M0180221 |
COLLAR COLLAR |
4 | |
| 31 | 8M0179251 |
GASKET Adapter Plate GASKET Adapter Plate |
1 | |
| 32 | 8M0179252 |
SCREW M10 x 65 SCREW M10 x 65 |
7 | superseded |
| 33 | 8M0179281 |
JOURNAL Idler JOURNAL Idler |
1 | |
| 34 | 8M0179260 |
SPROCKET Oil Pump Drive Assembly SPROCKET Oil Pump Drive Assembly |
1 | |
| 35 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bushing NOT SOLD SEPARATE Bushing |
1 | |
| 36 | 8M0179279 |
WASHER Shoulder WASHER Shoulder |
1 | |
| 37 | 8M0179280 |
SCREW M8 x 45 SCREW M8 x 45 |
1 | |
| 38 | 8M0179278 |
GUIDE Short Span GUIDE Short Span |
2 | |
| 39 | 8M0142393 |
НАПРАВЛЯЮЩАЯ Привод кулачка GUIDE Cam Drive |
1 | |
| 4 | 8M0179276 |
GASKET Cover Plate GASKET Cover Plate |
1 | |
| 40 | 8M0142392 |
НАПРАВЛЯЮЩАЯ Подвижная GUIDE Moveable |
1 | |
| 41 | 8M0086569 |
ВИНТ Излом (M8 x 1.25) SCREW Shoulder (M8 x 1.25) |
2 | |
| 42 | 8M0179277 |
CHAIN Cam Drive CHAIN Cam Drive |
1 | |
| 43 | 8M0142390 |
ЗВЕЗДОЧКА Распределительный вал SPROCKET Camshaft |
2 | |
| 44 | 8M0142395 |
БОЛТ КУЛАЧКА M12 специальный левосторонний CAM BOLT M12 Special Left Hand |
2 | |
| 45 | 8M0179253 |
OIL SHIELD OIL SHIELD |
1 | |
| 46 | 8M0179254 |
QUARTER SHIELD QUARTER SHIELD |
1 | |
| 47 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
3 | |
| 48 | 8M0179256 |
SPACER SPACER |
1 | |
| 49 | 8M0179255 |
STUD M6 x 1 STUD M6 x 1 |
1 | |
| 5 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
8 | |
| 50 | 401386 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 51 | 8M0179258 |
ENGINE COUPLER ENGINE COUPLER |
1 | |
| 52 | 8M0179259 |
SCREW M8 x 28 SCREW M8 x 28 |
1 | |
| 6 | 8M0087453 |
ПРОБКА (24 мм) PLUG (24 MM) |
1 | |
| 7 | 8M0087451 |
ПРОБКА (18 ММ) PLUG (18MM) |
1 | |
| 8 | 893540 |
ШТИФТ Штифт, длина 8x12 PIN Dowel, 8x12 long |
6 | |
| 9 | 8M0087447 |
ПРОБКА (10 ММ) PLUG (10MM) |
2 |
