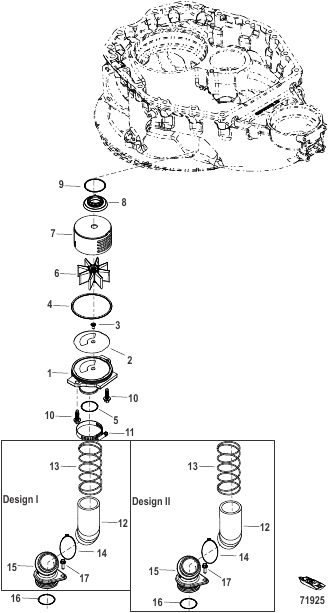

Cooling Water Pump
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0235099 |
WATER PUMP REPAIR KIT Long (L) WATER PUMP REPAIR KIT Long (L) |
1 | superseded |
| - | 8M0235100 |
WATER PUMP REPAIR KIT XLong (XL/XXL/XXXL) WATER PUMP REPAIR KIT XLong (XL/XXL/XXXL) |
1 | superseded |
| - | 8M0177997 |
WATER PUMP KIT Complete WATER PUMP KIT Complete |
1 | discontinued |
| 1 | 8M0178586 |
TUBE Water Inlet (L) TUBE Water Inlet (L) |
1 | superseded |
| 1 | 8M0178587 |
TUBE Water Inlet (XL/XXL/XXXL) TUBE Water Inlet (XL/XXL/XXXL) |
1 | superseded |
| 10 | 8M0177709 |
SCREW SCREW |
2 | |
| 11 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
1 | |
| 12 | 8M0177712 |
HOSE ASSEMBLY (XL/XXL/XXXL) - Design I HOSE ASSEMBLY (XL/XXL/XXXL) - Design I |
1 | superseded |
| 12 | 8M0221285 |
HOSE ASSEMBLY Strainer Housing to Water Pump (XL/XXL/XXXL) - Design II HOSE ASSEMBLY Strainer Housing to Water Pump (XL/XXL/XXXL) - Design II |
1 | |
| 13 | 8M0182439 |
SPRING Design I and II SPRING Design I and II |
1 | |
| 14 | 8M0177711 |
CLAMP (XL/XXL/XXXL) - Design I and II CLAMP (XL/XXL/XXXL) - Design I and II |
1 | |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Fitting-Water inlet (XL/XXL/XXXL) - Design I and II NOT SOLD SEPARATE Fitting-Water inlet (XL/XXL/XXXL) - Design I and II |
1 | |
| 16 | 8M0177710 |
O-RING Design II O-RING Design II |
1 | discontinued |
| 17 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
1 | |
| 2 | 8M0178588 |
PLATE Water Inlet PLATE Water Inlet |
1 | discontinued |
| 3 | 8M0178589 |
SCREW M6 x 12 SCREW M6 x 12 |
1 | |
| 4 | 8M0177705 |
O-RING O-RING |
1 | discontinued |
| 5 | 8M0177710 |
O-RING (L) Model Only O-RING (L) Model Only |
1 | discontinued |
| 6 | 8M0177706 |
IMPELLER Water Pump IMPELLER Water Pump |
1 | discontinued |
| 7 | 8M0177707 |
PUMP HOUSING PUMP HOUSING |
1 | discontinued |
| 8 | 8M0177708 |
SEAL Carrier SEAL Carrier |
1 | discontinued |
| 9 | 65936 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 |
