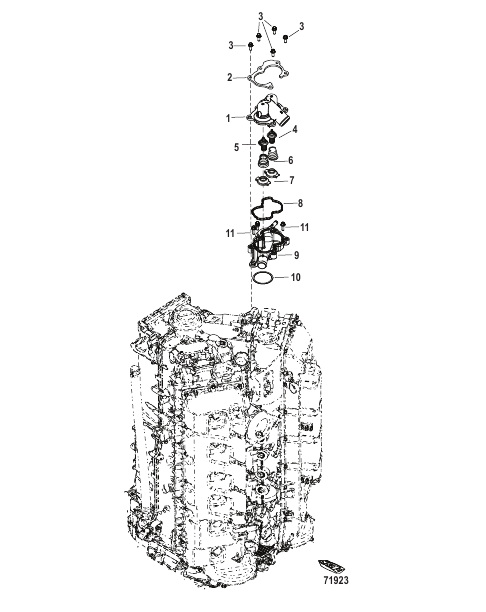

Cooling Thermostat, Serial 3B332191 and Below
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177662 |
THERMOSTAT ASSEMBLY THERMOSTAT ASSEMBLY |
1 | |
| 10 | 33145 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.984 x 0.139) O-RING (1.984 x .139) |
1 | superseded |
| 11 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
3 | |
| 2 | 8M0180926 |
PLATE PLATE |
1 | |
| 3 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
5 | |
| 4 | 8M0177700 |
THERMOSTAT 71.1 Degree Celsius THERMOSTAT 71.1 Degree Celsius |
1 | |
| 5 | 8M0177701 |
THERMOSTAT 60 Degree Celsius THERMOSTAT 60 Degree Celsius |
1 | |
| 6 | 8M0177702 |
SPRING Thermostat SPRING Thermostat |
2 | |
| 7 | 8M0177703 |
RETAINER Thermostat RETAINER Thermostat |
2 | |
| 8 | 8M0177704 |
GASKET Thermostat GASKET Thermostat |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Housing-Bottom NOT SOLD SEPARATE Housing-Bottom |
1 |
