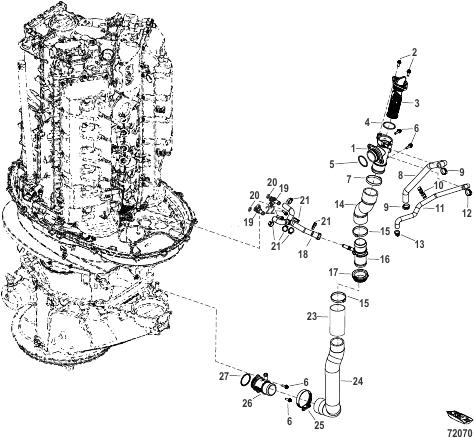

Cooling Strainer
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0177672 |
STRAINER ASSEMBLY STRAINER ASSEMBLY |
1 | |
| 10 | 8M0177514 |
CLIP CLIP |
1 | |
| 11 | 8M0177677 |
HOSE Strainer to Fuel Supply Module HOSE Strainer to Fuel Supply Module |
1 | |
| 12 | 855697 |
ЗАЖИМ CLAMP |
1 | superseded |
| 13 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 14 | 8M0177674 |
HOSE Exhaust Inlet HOSE Exhaust Inlet |
1 | |
| 15 | 8M0177675 |
CLAMP CLAMP |
2 | |
| 16 | 8M0177678 |
FITTING FITTING |
1 | |
| 17 | 8M0177649 |
GROMMET Tranmission Oil Cooler GROMMET Tranmission Oil Cooler |
1 | |
| 18 | 8M0177679 |
HOSE ASSEMBLY Head Drain HOSE ASSEMBLY Head Drain |
1 | superseded |
| 18 | 8M0190967 |
HOSE ASSEMBLY Head Drain HOSE ASSEMBLY Head Drain |
1 | |
| 19 | 8M0244885 |
FITTING Assembly FITTING Assembly |
2 | |
| 2 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 20 | 62704 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.362 x 0.103) O-RING (.362 x .103) |
1 | |
| 21 | 8M0157397 |
ЗАЖИМ Oetiker, 17,5 CLAMP Oetiker, 17.5 |
6 | |
| 22 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
2 | |
| 23 | 8M0182397 |
SLEEVE Protective SLEEVE Protective |
1 | |
| 24 | 8M0177689 |
HOSE Water Outlet HOSE Water Outlet |
1 | |
| 25 | 8M0177711 |
CLAMP CLAMP |
1 | |
| 26 | 8M0177507 |
FITTING FITTING |
1 | |
| 27 | 8M0177508 |
O-RING O-RING |
1 | |
| 3 | 8M0177673 |
SCREEN ASSEMBLY SCREEN ASSEMBLY |
1 | |
| 4 | 36324 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.549 x 0.103) O-RING (1.549 x .103) |
1 | |
| 5 | 11165 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 6 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
4 | |
| 7 | 8M0177665 |
CLAMP CLAMP |
1 | |
| 8 | 8M0177676 |
HOSE Strainer to Cooler HOSE Strainer to Cooler |
1 | |
| 9 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
2 |
