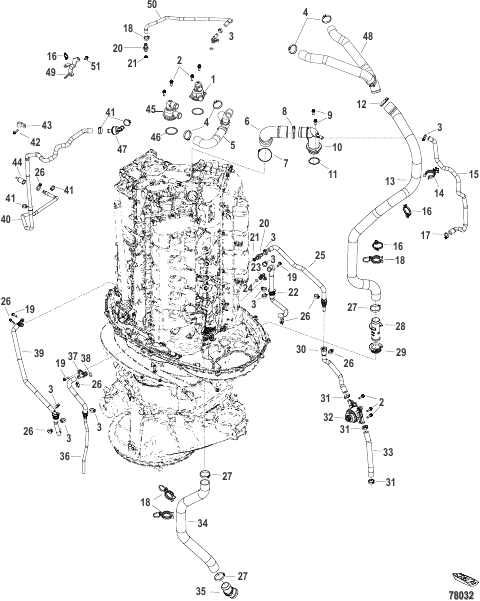

Cooling, Hoses and Thermostats Serial 3B332192 and Up
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0227276 |
LONG BLOCK LONG BLOCK |
1 | |
| 1 | 8M0219846 |
THERMOSTAT ASSEMBLY 140F / 60C Starboard, with O-ring THERMOSTAT ASSEMBLY 140F / 60C Starboard, with O-ring |
1 | |
| 10 | 8M0219844 |
HOSE ASSEMBLY HOSE ASSEMBLY |
1 | |
| 11 | 11165 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 12 | 888988007 |
ЗАЖИМ (42.5 мм) CLAMP (42.5 mm) |
1 | |
| 13 | 8M0219848 |
HOSE HOSE |
1 | |
| 14 | 8M0177669 |
CLIP CLIP |
1 | |
| 15 | 8M0177670 |
HOSE Sprayer HOSE Sprayer |
1 | |
| 16 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
3 | |
| 17 | 848763 |
ЗАЖИМ (19.8 мм) CLAMP (19.8 mm) |
1 | |
| 18 | 8M0177671 |
CLIP CLIP |
3 | |
| 19 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
3 | |
| 2 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
8 | |
| 20 | 8M0177680 |
FITTING ASSEMBLY FITTING ASSEMBLY |
2 | |
| 21 | 8M0177681 |
O-RING O-RING |
2 | |
| 22 | 8M0203761 |
HOSE ASSEMBLY Starboard, Block Drain Block Drain HOSE ASSEMBLY Starboard, Block Drain Block Drain |
1 | |
| 23 | 8M0244885 |
FITTING Assembly FITTING Assembly |
1 | |
| 24 | 62704 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.362 x 0.103) O-RING (.362 x .103) |
1 | |
| 25 | 8M0177683 |
HOSE ASSEMBLY Crankcase Cooler In HOSE ASSEMBLY Crankcase Cooler In |
1 | |
| 26 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
7 | |
| 27 | 8M6000385 |
ЗАЖИМ (39.6 мм) CLAMP (39.6 MM) |
3 | superseded |
| 28 | 8M0177684 |
FITTING FITTING |
1 | |
| 29 | 8M0177685 |
GROMMET GROMMET |
1 | |
| 3 | 8M0157397 |
ЗАЖИМ Oetiker, 17,5 CLAMP Oetiker, 17.5 |
10 | |
| 30 | 8M0177686 |
HOSE ASSEMBLY Pass Thru Plate to Pressure Valve HOSE ASSEMBLY Pass Thru Plate to Pressure Valve |
1 | |
| 31 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
3 | |
| 32 | 8M0177687 |
POPPET ASSEMBLY POPPET ASSEMBLY |
1 | |
| 33 | 8M0177688 |
HOSE Inlet Fitting to Pressure Relief Valve HOSE Inlet Fitting to Pressure Relief Valve |
1 | |
| 34 | 8M0177690 |
HOSE Water Dump (L) HOSE Water Dump (L) |
1 | |
| 34 | 8M0177691 |
HOSE Water Dump (XL/XXL/XXXL) HOSE Water Dump (XL/XXL/XXXL) |
1 | |
| 35 | 8M0177692 |
FITTING FITTING |
1 | |
| 36 | 8M0177694 |
HOSE ASSEMBLY Block Drain HOSE ASSEMBLY Block Drain |
1 | superseded |
| 36 | 8M0203760 |
HOSE ASSEMBLY Port Block Drain HOSE ASSEMBLY Port Block Drain |
1 | |
| 37 | 8M0244885 |
FITTING Assembly FITTING Assembly |
1 | |
| 38 | 62704 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.362 x 0.103) O-RING (.362 x .103) |
1 | |
| 39 | 8M0177695 |
HOSE ASSEMBLY Crankcase Cooler Out HOSE ASSEMBLY Crankcase Cooler Out |
1 | superseded |
| 4 | 8M0143696 |
CLAMP CLAMP |
4 | |
| 40 | 8M0220950 |
HOSE ASSEMBLY HOSE ASSEMBLY |
1 | |
| 41 | 8M0235708 |
CLAMP Oetiker, (24.1 x 7 x.6 mm) CLAMP Oetiker, (24.1 x 7 x.6 mm) |
4 | |
| 42 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 43 | 97224 |
J-ЗАЖИМ J CLIP |
1 | |
| 44 | 8M0180022 |
CAP CAP |
1 | |
| 45 | 8M0219845 |
THERMOSTAT ASSEMBLY 160F / 71.1C Port, with O-ring THERMOSTAT ASSEMBLY 160F / 71.1C Port, with O-ring |
1 | |
| 46 | 33145 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.984 x 0.139) Component of Thermostat Assemblies O-RING (1.984 x .139) Component of Thermostat Assemblies |
2 | superseded |
| 47 | 8M0191578 |
VALVE Flush VALVE Flush |
1 | |
| 48 | 8M0219849 |
HOSE ASSEMBLY Thermostat to Dump Hose HOSE ASSEMBLY Thermostat to Dump Hose |
1 | |
| 49 | 8M0179993 |
BRACKET BRACKET |
1 | |
| 5 | 8M0219847 |
HOSE ASSEMBLY Thermostat to Flush Valve HOSE ASSEMBLY Thermostat to Flush Valve |
1 | |
| 50 | 8M0219850 |
HOSE ASSEMBLY HOSE ASSEMBLY |
1 | |
| 51 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 6 | 8M0219853 |
HOSE HOSE |
1 | |
| 7 | 8M0177665 |
CLAMP CLAMP |
1 | |
| 8 | 8M0177675 |
CLAMP CLAMP |
1 | |
| 9 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 |
