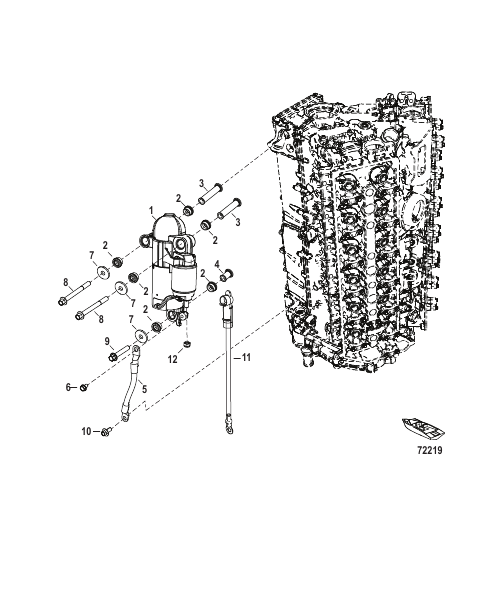

Starter Motor
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0178244 |
STARTER STARTER |
1 | |
| 10 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
1 | |
| 11 | 8M0179325 |
CABLE Hot Stud to Starter CABLE Hot Stud to Starter |
1 | |
| 12 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 2 | 8M0154659 |
MOUNT TUBULAR 8 MM MOUNT TUBULAR 8 MM |
6 | |
| 3 | 8M0179322 |
SPACER (8.3 I.D. x 11.8 O.D.) SPACER (8.3 I.D. x 11.8 O.D.) |
2 | |
| 4 | 8M0070368 |
ПРОСТАВКА (В.Д. 8.3 X Н.Д. 11.8) SPACER (8.3 I.D. X 11.8 O.D.) |
1 | |
| 5 | 8M0179323 |
GROUND Starter GROUND Starter |
1 | |
| 6 | 40011146 |
ВИНТ (M8 x 13), нержавеющая сталь SCREW (M8 x 13) Stainless Steel |
1 | |
| 7 | 43430 |
ШАЙБА WASHER |
3 | |
| 8 | 8M0179324 |
SCREW (M8 x 60) SCREW (M8 x 60) |
2 | |
| 9 | 88552645 |
ВИНТ (M8X45) SCREW (M8X45) |
1 |
