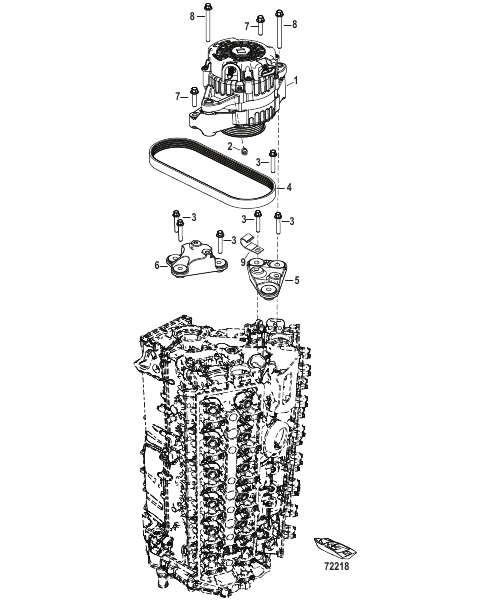

Alternator Mounting/Belt 48 Volt
Parts (9)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0205630 |
ALTERNATOR 100 Amp (48 Volt) ALTERNATOR 100 Amp (48 Volt) |
1 | superseded |
| 2 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 3 | 8M0145100 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
6 | |
| 4 | 8M0207416 |
BELT ACCESSORY 6 Rib 48 Volt Alternator BELT ACCESSORY 6 Rib 48 Volt Alternator |
1 | |
| 5 | 8M0207414 |
BRACKET Alternator 48 Volt Alternator (Starboard) BRACKET Alternator 48 Volt Alternator (Starboard) |
1 | |
| 6 | 8M0207415 |
BRACKET Alternator 48 Volt Alternator (Port) BRACKET Alternator 48 Volt Alternator (Port) |
1 | |
| 7 | 8M0142460 |
ВИНТ (M8 x 45) ШЕСТИГР. ФЛАНЕЦ SCREW (M8 x 45) Hex Flg |
2 | |
| 8 | 8M0142677 |
ВИНТ (M8 x 85) SCREW (M8 x 85) |
2 | |
| 9 | 47483 |
J-ЗАЖИМ J CLIP |
1 |
