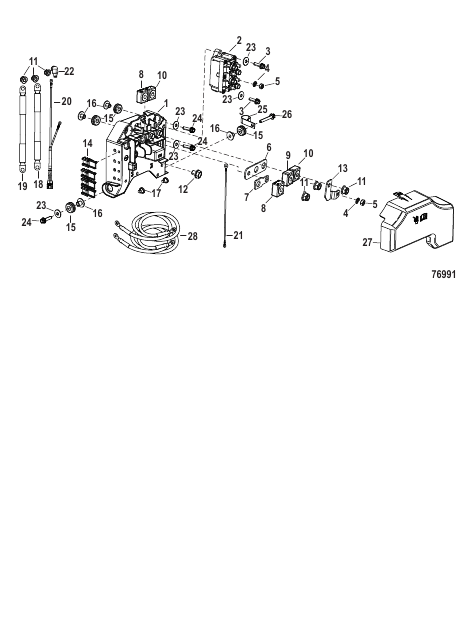

Electrical Plate Assembly
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 1 | 8M0179326 |
PLATE RIGGING PLATE RIGGING |
1 | superseded |
| 10 | 8M0179331 |
FUSE BLOCK 125 AMP FUSE BLOCK 125 AMP |
2 | |
| 11 | 826365 |
ГАЙКА (M8) NUT (M8) |
6 | |
| 12 | 40011145 |
ВИНТ (M8 x 10), нержавеющая сталь SCREW (M8 x 10) Stainless Steel |
1 | |
| 13 | 8M0179332 |
BUSS BAR Trim BUSS BAR Trim |
1 | |
| 14 | 8M0179333 |
CLIP CONNECTOR CLIP CONNECTOR |
4 | |
| 15 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 16 | 822003 |
ВТУЛКА BUSHING |
4 | |
| 17 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
2 | |
| 18 | 8M0179334 |
CABLE CHARGE Hot Stud to Alternator CABLE CHARGE Hot Stud to Alternator |
1 | |
| 19 | 8M0179335 |
HARNESS GROUND 25 inch HARNESS GROUND 25 inch |
1 | |
| 2 | 8M0178610 |
RELAY Trim RELAY Trim |
1 | |
| 20 | 8M0179336 |
HARNESS Pump Power HARNESS Pump Power |
1 | |
| 21 | 8M0179337 |
HARNESS GROUND Trim Relay HARNESS GROUND Trim Relay |
1 | |
| 22 | 8M0179338 |
BOOT Alternator BOOT Alternator |
1 | |
| 23 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
5 | |
| 24 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
3 | |
| 25 | 65292 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 26 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
1 | |
| 27 | 8M0179307 |
COVER Electrical Plate COVER Electrical Plate |
1 | |
| 28 | 8M0149414 |
CABLE KIT Battery CABLE KIT Battery |
1 | |
| 3 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
2 | |
| 4 | 400256 |
СТОПОРНАЯ ШАЙБА (M6) LOCKWASHER (M6) |
2 | |
| 5 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 6 | 8M0179328 |
BAR Buss BAR Buss |
1 | |
| 7 | 8M0179329 |
LINK FUSE LINK FUSE |
2 | |
| 8 | 8M0174088 |
FUSE BLOCK 175 AMP FUSE BLOCK 175 AMP |
2 | |
| 9 | 8M0129535 |
FUSE BLOCK 80 Amp - Lime FUSE BLOCK 80 Amp - Lime |
1 |
