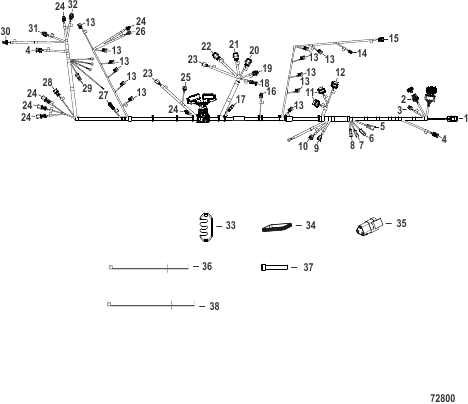

Electrical Engine Harness
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178245 |
ENGINE HARNESS ASSEMBLY [3B331370] & Below ENGINE HARNESS ASSEMBLY [3B331370] & Below |
1 | |
| - | 8M0222357 |
ENGINE HARNESS ASSEMBLY [3B331371] & Up ENGINE HARNESS ASSEMBLY [3B331371] & Up |
1 | |
| - | 8M0217495 |
HARNESS Adapter, Alternator (12 Volt) [3B331371] & Up HARNESS Adapter, Alternator (12 Volt) [3B331371] & Up |
1 | |
| - | 8M0207417 |
HARNESS Adapter, Alternator (48 Volt) HARNESS Adapter, Alternator (48 Volt) |
1 | |
| - | 8M0227209 |
HARNESS Adapter 2 Pin male to 3Pin female Converts 2 pin hood latch harness 8m0178245 to 3 Pin HARNESS Adapter 2 Pin male to 3Pin female Converts 2 pin hood latch harness 8m0178245 to 3 Pin |
1 | |
| - | 893388A01 |
ПРОБКА Резистор 2 вывода, 120 Ом (CAN 1, 2 и 3) CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) |
3 | |
| 1 | 879346A31 |
HARNESS REPAIR Resister: CAN 1, P HARNESS REPAIR Resister: CAN 1, P |
1 | |
| 10 | 879346A51 |
РЕМОНТНЫЙ КОМПЛЕКТ ЖГУТА ПРОВОДОВ Oil Level HARNESS REPAIR KIT Oil Level |
1 | |
| 11 | 8M0179605 |
HARNESS REPAIR KIT Fuel Pump, Main Power Relay HARNESS REPAIR KIT Fuel Pump, Main Power Relay |
1 | |
| 12 | 8M0179604 |
HARNESS REPAIR KIT Starter Relay HARNESS REPAIR KIT Starter Relay |
1 | |
| 13 | 8M0062019 |
HARNESS REPAIR KIT INJECTOR 9, 6, 10, 8, 11, 4, 3, 12, 2, 7, 5 HARNESS REPAIR KIT INJECTOR 9, 6, 10, 8, 11, 4, 3, 12, 2, 7, 5 |
1 | |
| 14 | 879346A39 |
HARNESS REPAIR KIT Block PSI HARNESS REPAIR KIT Block PSI |
1 | |
| 15 | 8M0179603 |
HARNESS REPAIR Alternator HARNESS REPAIR Alternator |
1 | |
| 16 | 879346A41 |
РЕМОНТНЫЙ КОМПЛЕКТ ЖГУТА ПРОВОДОВ Camshaft HARNESS REPAIR KIT Camshaft |
1 | |
| 17 | 8M0179610 |
HARNESS REPAIR MP Alert HARNESS REPAIR MP Alert |
1 | |
| 18 | 8M0179600 |
HARNESS REPAIR Steering Position A, B HARNESS REPAIR Steering Position A, B |
1 | |
| 19 | 8M0179608 |
HARNESS REPAIR Fuel Pump HARNESS REPAIR Fuel Pump |
1 | |
| 2 | 8M0062016 |
HARNESS REPAIR Fuse Holder 2 HARNESS REPAIR Fuse Holder 2 |
1 | |
| 20 | 8M0179599 |
HARNESS REPAIR Transmission #1 HARNESS REPAIR Transmission #1 |
1 | |
| 21 | 8M0179598 |
HARNESS REPAIR Transmission #2 HARNESS REPAIR Transmission #2 |
1 | |
| 22 | 8M0179597 |
HARNESS REPAIR Coils HARNESS REPAIR Coils |
1 | |
| 23 | 879346A44 |
HARNESS REPAIR KIT Port/Starboard Pre CAT 02 HARNESS REPAIR KIT Port/Starboard Pre CAT 02 |
1 | |
| 24 | 879346A32 |
HARNESS REPAIR KIT Resistors: CAN 2, 3, 4, E, S, Exhaust Temperature, Engine Coolant Temperature, Oil Temperature HARNESS REPAIR KIT Resistors: CAN 2, 3, 4, E, S, Exhaust Temperature, Engine Coolant Temperature, Oil Temperature |
1 | |
| 25 | 8M0179601 |
HARNESS REPAIR Power Steering Pump HARNESS REPAIR Power Steering Pump |
1 | |
| 26 | 879346A52 |
HARNESS REPAIR KIT Crank Position HARNESS REPAIR KIT Crank Position |
1 | |
| 27 | 8M0179606 |
HARNESS REPAIR Trim Sender HARNESS REPAIR Trim Sender |
1 | |
| 28 | 8M0179596 |
HARNESS REPAIR Trim Control HARNESS REPAIR Trim Control |
1 | |
| 29 | 8M0050324 |
HARNESS REPAIR KIT Air Temp HARNESS REPAIR KIT Air Temp |
1 | |
| 3 | 879346A42 |
HARNESS REPAIR Steering, CAN 4 HARNESS REPAIR Steering, CAN 4 |
1 | |
| 30 | 879346A33 |
HARNESS REPAIR KIT Hood Latch HARNESS REPAIR KIT Hood Latch |
1 | |
| 31 | 879346A35 |
HARNESS REPAIR KIT MAP HARNESS REPAIR KIT MAP |
1 | |
| 32 | 8M0179607 |
HARNESS REPAIR Oil Pressure HARNESS REPAIR Oil Pressure |
1 | |
| 33 | 831957 |
ФИКСАТОР RETAINER |
1 | |
| 34 | 8M0147903 |
УПЛОТНЕНИЕ Блок предохранителей SEAL Fuse Box |
1 | |
| 35 | 8M0060394 |
СОЕДИНИТЕЛЬ И ЗАМОК 3-ходовой CONNECTOR AND LOCK 3-Way |
1 | |
| 36 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
2 | superseded |
| 37 | 889826 |
ПОЛОСТНАЯ ПРОБКА CAVITY PLUG |
3 | |
| 38 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
13 | |
| 39 | 8M0175113 |
Jumper Trim Jumper Trim |
1 | |
| 4 | 8M0179595 |
HARNESS REPAIR KIT ETC 1, ETC 2 HARNESS REPAIR KIT ETC 1, ETC 2 |
1 | |
| 5 | 8M0179609 |
HARNESS REPAIR Engine Power HARNESS REPAIR Engine Power |
1 | |
| 6 | 8M0179602 |
HARNESS REPAIR KIT Engine Primary HARNESS REPAIR KIT Engine Primary |
1 | |
| 7 | 8M0179593 |
HARNESS REPAIR KIT Engine Feature HARNESS REPAIR KIT Engine Feature |
1 | |
| 8 | 8M0179594 |
HARNESS REPAIR KIT Engine Auxiliary HARNESS REPAIR KIT Engine Auxiliary |
1 | |
| 9 | 879346A47 |
HARNESS REPAIR KIT Trim Switch HARNESS REPAIR KIT Trim Switch |
1 |
