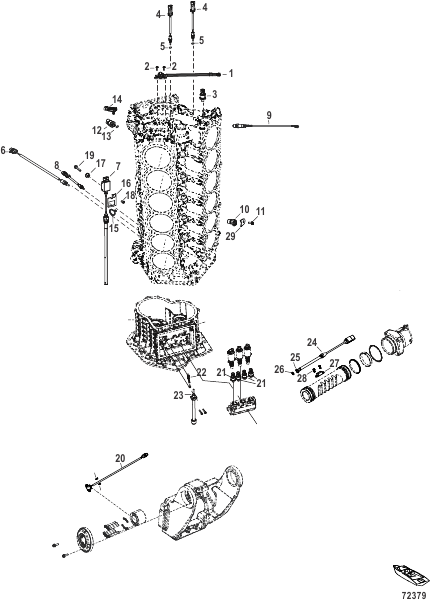

Electrical Sensors
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178234 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | superseded |
| 1 | 8M0179302 |
SENSOR Crankshaft Position SENSOR Crankshaft Position |
1 | |
| 10 | 8M0011987 |
ДАТЧИК Cam Position SENSOR Cam Position |
1 | superseded |
| 11 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
1 | |
| 12 | 8M0178265 |
SENSOR Oil Pressure SENSOR Oil Pressure |
1 | |
| 13 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 14 | 8M0178264 |
SENSOR MAP SENSOR MAP |
1 | |
| 15 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 16 | 8M0179319 |
BRACKET Oil Sensor [3B331370] & Below BRACKET Oil Sensor [3B331370] & Below |
1 | |
| 17 | 818967 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 18 | 818968 |
ВТУЛКА [3B331370] & Below BUSHING [3B331370] & Below |
1 | superseded |
| 19 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь [3B331370] & Below SCREW (M6 x 25 mm) Stainless Steel [3B331370] & Below |
1 | |
| 2 | 40011106 |
ВИНТ (M5 x 13), нержавеющая сталь SCREW (M5 x 13) Stainless Steel |
2 | |
| 20 | 8M0178609 |
SENSOR Trim Assembly Transmission SENSOR Trim Assembly Transmission |
1 | |
| 21 | 8M0177634 |
SENSOR Pressure Transmission SENSOR Pressure Transmission |
1 | |
| 22 | 8M0177636 |
SENSOR Speed Transmission SENSOR Speed Transmission |
1 | |
| 23 | 8M0177637 |
SENSOR Fluid Level Tansmission SENSOR Fluid Level Tansmission |
1 | |
| 24 | 8M0177504 |
SENSOR Steering Postion Power Steering SENSOR Steering Postion Power Steering |
1 | superseded |
| 25 | 831985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.468 x 0.078) O-RING (.468 x .078) |
1 | |
| 26 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) O-RING (.364. x .070) |
1 | |
| 27 | 8M0179318 |
SENSOR Steering, Magnet Power Steering SENSOR Steering, Magnet Power Steering |
1 | |
| 28 | 8M0177505 |
SCREW Power Steering SCREW Power Steering |
1 | |
| 29 | 8M0203891 |
BRACKET Cam Sensor BRACKET Cam Sensor |
1 | |
| 3 | 8M0142696 |
ДАТЧИК Давление Block Pressure SENSOR Pressure Block Pressure |
1 | |
| 4 | 8M0142542 |
ДАТЧИК Температура Block Water Temperature/Oil Temperature SENSOR Temperature Block Water Temperature/Oil Temperature |
2 | superseded |
| 5 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
2 | |
| 6 | 8M0178263 |
SENSOR Temperature, Intake Air SENSOR Temperature, Intake Air |
1 | |
| 7 | 8M0178267 |
SENSOR Oil Level [3B331370] & Below SENSOR Oil Level [3B331370] & Below |
1 | discontinued |
| 7 | 8M0217920 |
SENSOR Oil Level [3B331371] & Up SENSOR Oil Level [3B331371] & Up |
1 | |
| 8 | 8M0161580 |
SENSOR Temperature Exhaust Gas Temperature (EGT) SENSOR Temperature Exhaust Gas Temperature (EGT) |
1 | |
| 9 | 8M0142695 |
ДАТЧИК Кислород SENSOR Oxygen |
2 |
