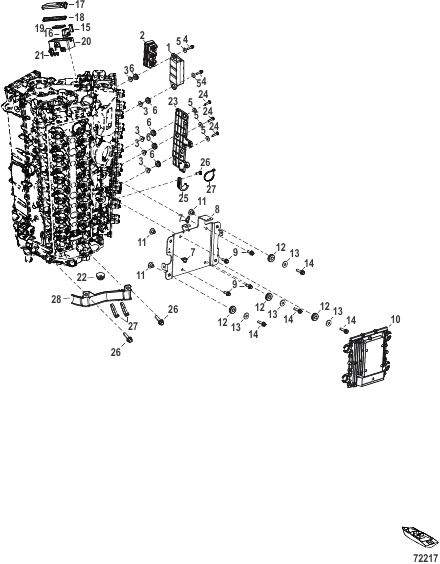

Electrical
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178245 |
ENGINE HARNESS ASSEMBLY [3B331370] & Below ENGINE HARNESS ASSEMBLY [3B331370] & Below |
1 | |
| - | 8M0222357 |
ENGINE HARNESS ASSEMBLY [3B331371] & Up ENGINE HARNESS ASSEMBLY [3B331371] & Up |
1 | |
| 1 | 8M0179303 |
HOUSING RELAY HOUSING RELAY |
1 | |
| 10 | 8M0179308 |
PCM 600 V12 4S [3B060046] & Below PCM 600 V12 4S [3B060046] & Below |
1 | superseded |
| 10 | 8M0228691 |
PCM 600 V12 4S [3B060047] & Up PCM 600 V12 4S [3B060047] & Up |
1 | |
| 10 | 8M0179309 |
PCM 500 V12 4S SeaPro [3B060046] & Below PCM 500 V12 4S SeaPro [3B060046] & Below |
1 | superseded |
| 10 | 8M0228690 |
PCM 500 V12 4S SeaPro [3B060047] & Up PCM 500 V12 4S SeaPro [3B060047] & Up |
1 | |
| 11 | 8502341 |
ВТУЛКА BUSHING |
4 | |
| 12 | 833155 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 13 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
4 | |
| 14 | 8M0103813 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
4 | |
| 15 | 895099 |
ИЗВЛЕКАТЕЛЬ Предохранитель EXTRACTOR Fuse |
1 | |
| 16 | 858754 |
КРЫШКА Предохранитель COVER Fuse |
1 | |
| 17 | 8M0179311 |
COVER Fuse Center Decaled [3B331370] & Below COVER Fuse Center Decaled [3B331370] & Below |
1 | superseded |
| 17 | 8M0217736 |
COVER Fuse Center Decaled [3B331371] & Up COVER Fuse Center Decaled [3B331371] & Up |
1 | |
| 18 | 8M0179321 |
SEAL Fuse Center SEAL Fuse Center |
1 | |
| 19 | 8M0147903 |
УПЛОТНЕНИЕ Блок предохранителей SEAL Fuse Box |
1 | |
| 2 | 8M0057697 |
КУБИЧЕСКОЕ РЕЛЕ CUBE RELAY |
3 | superseded |
| 20 | 8M0179312 |
FUSE CENTER [3B331370] & Below FUSE CENTER [3B331370] & Below |
1 | |
| 20 | 8M0246396 |
FUSE CENTER [3B331371] & Up FUSE CENTER [3B331371] & Up |
1 | |
| 21 | 8329692 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – серый – 2 A FUSE Mini - Gray - 2 Ampere |
1 | superseded |
| 21 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
1 | |
| 21 | 8M0182827 |
FUSE Mini - Brown - 7.5 Ampere FUSE Mini - Brown - 7.5 Ampere |
1 | |
| 21 | 83296910 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – красный – 10 A FUSE Mini - Red - 10 Ampere |
1 | |
| 21 | 832969T15 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – синий – 15 A FUSE Mini - Blue - 15 Ampere |
1 | |
| 21 | 832969T20 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
1 | |
| 22 | 8M0179320 |
GROMMET Steering Wire GROMMET Steering Wire |
1 | |
| 23 | 8M0179317 |
BRACKET CONNECTOR BRACKET CONNECTOR |
1 | |
| 24 | 8M0142686 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 25 | 8M0179316 |
BRACKET HARNESS Starboard BRACKET HARNESS Starboard |
1 | |
| 26 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
3 | |
| 27 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
3 | |
| 28 | 8M0179315 |
BRACKET HARNESS Port BRACKET HARNESS Port |
1 | |
| 3 | 822003 |
ВТУЛКА BUSHING |
5 | |
| 4 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
2 | |
| 5 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
5 | |
| 6 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
5 | superseded |
| 7 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
3 | |
| 8 | 8M0179310 |
BRACKET PCM BRACKET PCM |
1 | |
| 9 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
4 |
