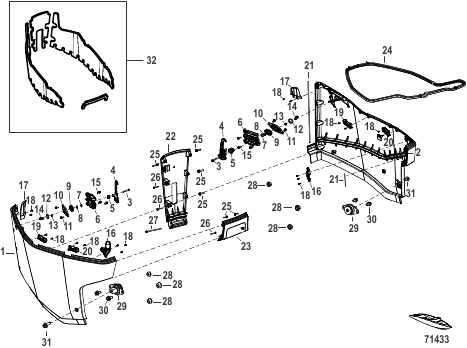

Middle Cowl
Parts (52)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178176 |
LATCH ASSEMBLY Rear (Starboard) LATCH ASSEMBLY Rear (Starboard) |
1 | |
| - | 8M0178158 |
LATCH ASSEMBLY Rear (Port) LATCH ASSEMBLY Rear (Port) |
1 | |
| 1 | 8M0178150 |
MIDDLE COWL ASSEMBLY Black (Starboard) MIDDLE COWL ASSEMBLY Black (Starboard) |
1 | |
| 1 | 8M0178151 |
MIDDLE COWL ASSEMBLY Warm Fusion (Starboard) MIDDLE COWL ASSEMBLY Warm Fusion (Starboard) |
1 | |
| 1 | 8M0178152 |
MIDDLE COWL ASSEMBLY Cold Fusion (Starboard) MIDDLE COWL ASSEMBLY Cold Fusion (Starboard) |
1 | |
| 1 | 8M0178153 |
MIDDLE COWL ASSEMBLY Pearl Fusion (Starboard) MIDDLE COWL ASSEMBLY Pearl Fusion (Starboard) |
1 | |
| 10 | 8M0178165 |
PLATE Pivot PLATE Pivot |
1 | |
| 11 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 12 | 8M0178166 |
SEAL Latch Assembly SEAL Latch Assembly |
1 | |
| 13 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) O-RING (.364. x .070) |
1 | |
| 14 | 8M0178167 |
PIN Drive PIN Drive |
1 | |
| 15 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
1 | |
| 16 | 8M0178182 |
LATCH BODY Front (Starboard) LATCH BODY Front (Starboard) |
1 | |
| 16 | 8M0178168 |
LATCH BODY Front (Port) LATCH BODY Front (Port) |
1 | |
| 17 | 8M0178179 |
GUIDE Cowl Rear (Starboard) GUIDE Cowl Rear (Starboard) |
1 | |
| 17 | 8M0178169 |
GUIDE Cowl Rear (Port) GUIDE Cowl Rear (Port) |
1 | |
| 18 | 8M0142918 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
10 | |
| 19 | 8M0178180 |
RECEIVER STABILIZER Rear (Starboard) RECEIVER STABILIZER Rear (Starboard) |
1 | |
| 19 | 8M0178170 |
RECEIVER STABILIZER Rear (Port) RECEIVER STABILIZER Rear (Port) |
1 | |
| 2 | 8M0178154 |
MIDDLE COWL ASSEMBLY Black (Port) MIDDLE COWL ASSEMBLY Black (Port) |
1 | |
| 2 | 8M0178155 |
MIDDLE COWL ASSEMBLY Warm Fusion (Port) MIDDLE COWL ASSEMBLY Warm Fusion (Port) |
1 | |
| 2 | 8M0178156 |
MIDDLE COWL ASSEMBLY Cold Fusion (Port) MIDDLE COWL ASSEMBLY Cold Fusion (Port) |
1 | |
| 2 | 8M0178157 |
MIDDLE COWL ASSEMBLY Pearl Fusion (Port) MIDDLE COWL ASSEMBLY Pearl Fusion (Port) |
1 | |
| 20 | 8M0178181 |
RECEIVER STABILIZER Front (Starboard) RECEIVER STABILIZER Front (Starboard) |
1 | |
| 20 | 8M0178171 |
RECEIVER STABILIZER Front (Port) RECEIVER STABILIZER Front (Port) |
1 | |
| 21 | 8M0179791 |
SEAL Front SEAL Front |
2 | |
| 22 | 8M0178172 |
MIDDLE COWL ASSEMBLY Black Rear MIDDLE COWL ASSEMBLY Black Rear |
1 | |
| 22 | 8M0178173 |
MIDDLE COWL ASSEMBLY Warm Fusion Rear MIDDLE COWL ASSEMBLY Warm Fusion Rear |
1 | |
| 22 | 8M0178174 |
MIDDLE COWL ASSEMBLY Cold Fusion Rear MIDDLE COWL ASSEMBLY Cold Fusion Rear |
1 | |
| 22 | 8M0178175 |
MIDDLE COWL ASSEMBLY Pearl Fusion Rear MIDDLE COWL ASSEMBLY Pearl Fusion Rear |
1 | |
| 23 | 8M0178183 |
MIDDLE COWL ASSEMBLY Black Front MIDDLE COWL ASSEMBLY Black Front |
1 | |
| 23 | 8M0178184 |
MIDDLE COWL ASSEMBLY Warm Fusion Front MIDDLE COWL ASSEMBLY Warm Fusion Front |
1 | |
| 23 | 8M0178185 |
MIDDLE COWL ASSEMBLY Cold Fusion Front MIDDLE COWL ASSEMBLY Cold Fusion Front |
1 | |
| 23 | 8M0178186 |
MIDDLE COWL ASSEMBLY Pearl Fusion Front MIDDLE COWL ASSEMBLY Pearl Fusion Front |
1 | |
| 24 | 8M0178187 |
SEAL Cradle SEAL Cradle |
1 | |
| 25 | 8M0022324 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
6 | superseded |
| 26 | 8M0075736 |
ВИНТ (M6 X 50) шестигр. фланец SCREW (M6 X 50) Hex Flg |
2 | superseded |
| 27 | 8M0178189 |
SCREW (M6 X 175) Hex Flg SCREW (M6 X 175) Hex Flg |
1 | superseded |
| 28 | 8M0142713 |
ПРОБКА Опора захвата CAP Chap Support |
6 | |
| 29 | 8M0179582 |
MOUNT Cowl MOUNT Cowl |
2 | |
| 3 | 8M0178159 |
SCREW (M6 x 45) SCREW (M6 x 45) |
1 | |
| 30 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
4 | |
| 31 | 8M0178217 |
SCREW (M6 X 16) Hex Flg SCREW (M6 X 16) Hex Flg |
2 | superseded |
| 32 | 8M0179584 |
FOAM Middle Cowl FOAM Middle Cowl |
1 | |
| 4 | 8M0178177 |
HOOK ASSEMBLY LATCH Rear (Starboard) HOOK ASSEMBLY LATCH Rear (Starboard) |
1 | |
| 4 | 8M0178160 |
HOOK ASSEMBLY LATCH Rear (Port) HOOK ASSEMBLY LATCH Rear (Port) |
1 | |
| 5 | 8M0178161 |
BUSHING BUSHING |
1 | |
| 6 | 8M0178178 |
LATCH BODY Rear (Starboard) LATCH BODY Rear (Starboard) |
1 | |
| 6 | 8M0178162 |
LATCH BODY Rear (Port) LATCH BODY Rear (Port) |
1 | |
| 7 | 49339 |
ШАЙБА (0.8125) WASHER (.8125) |
1 | |
| 8 | 8M0178163 |
WASHER Overlap WASHER Overlap |
1 | |
| 9 | 8M0178164 |
DETENT DETENT |
1 |
