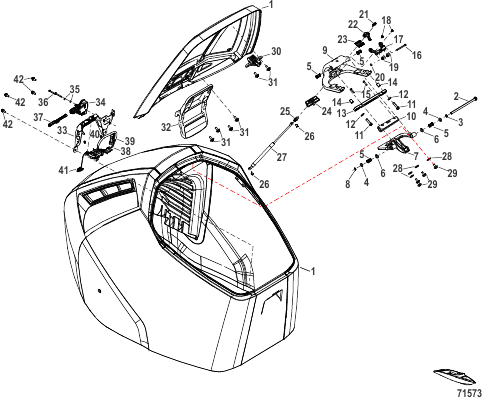

Top Cowl Latching
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0178094 |
HINGE ASSEMBLY Hood HINGE ASSEMBLY Hood |
1 | |
| - | 8M0178142 |
LATCH ASSEMBLY Hood LATCH ASSEMBLY Hood |
1 | superseded |
| 1 | 8M0178084 |
TOP COWL ASSEMBLY Black, Decaled TOP COWL ASSEMBLY Black, Decaled |
1 | superseded |
| 1 | 8M0178085 |
TOP COWL ASSEMBLY Cold Fusion, Decaled TOP COWL ASSEMBLY Cold Fusion, Decaled |
1 | superseded |
| 1 | 8M0178086 |
TOP COWL ASSEMBLY Warm Fusion, Decaled TOP COWL ASSEMBLY Warm Fusion, Decaled |
1 | superseded |
| 1 | 8M0178087 |
TOP COWL ASSEMBLY Pearl Fusion, Decaled TOP COWL ASSEMBLY Pearl Fusion, Decaled |
1 | |
| 1 | 8M0178088 |
TOP COWL ASSEMBLY Black, SeaPro, Decaled TOP COWL ASSEMBLY Black, SeaPro, Decaled |
1 | |
| 1 | 8M0178089 |
TOP COWL ASSEMBLY Cold Fusion, Non-Decaled TOP COWL ASSEMBLY Cold Fusion, Non-Decaled |
1 | superseded |
| 10 | 8M0178134 |
HANDLE GRIP HANDLE GRIP |
1 | |
| 11 | 8M0178135 |
SCREW M8X30 SCREW M8X30 |
2 | |
| 12 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) WASHER (8.90 X 17.0 X 1.9SS) |
2 | |
| 13 | 8M0178136 |
BRACKET Hood Guide BRACKET Hood Guide |
1 | |
| 14 | 8M0178137 |
PIN DOWEL PIN DOWEL |
2 | |
| 15 | 8M0178138 |
SCREW M4 X 20 SCREW M4 X 20 |
2 | |
| 16 | 8M0178133 |
PIN Roller PIN Roller |
1 | |
| 17 | 8M0178127 |
BRACKET Hinge Roller BRACKET Hinge Roller |
1 | |
| 18 | 8M0178128 |
SCREW M5 X 10 SCREW M5 X 10 |
2 | |
| 19 | 8M0179263 |
ROLLER ROLLER |
2 | |
| 2 | 8M0178123 |
PIN PIN |
1 | |
| 20 | 8M0179264 |
RETAINING RING RETAINING RING |
1 | |
| 21 | 8M0178129 |
SCREW M4 X 12 Truss Head Torx SCREW M4 X 12 Truss Head Torx |
2 | |
| 22 | 8M0178130 |
LOCK SLIDE LOCK SLIDE |
1 | |
| 23 | 8M0178131 |
SLIDER DETENT SLIDER DETENT |
1 | |
| 24 | 8M0178132 |
BUTTON Unlock BUTTON Unlock |
1 | |
| 25 | 8M0179265 |
BALL STUD Gas Spring BALL STUD Gas Spring |
1 | |
| 26 | 8M0178101 |
CLIP Ball Safety CLIP Ball Safety |
2 | |
| 27 | 8M0178100 |
GAS SPRING ASSEMBLY GAS SPRING ASSEMBLY |
1 | |
| 28 | 8M0142914 |
ПРОКЛАДКА ЗАЩЕЛКИ SHIM SET Latch |
4 | |
| 29 | 8M0178095 |
SCREW M6X16 SEMS SCREW M6X16 SEMS |
4 | |
| 3 | 8M0178121 |
WASHER Overlap Spring WASHER Overlap Spring |
1 | |
| 30 | 8M0178148 |
STRIKER ASSEMBLY STRIKER ASSEMBLY |
1 | |
| 31 | 8M0178095 |
SCREW M6X16 SEMS SCREW M6X16 SEMS |
6 | |
| 32 | 8M0178096 |
BRACKET BRACKET |
1 | |
| 33 | 8M0178143 |
LATCH ASSEMBLY Bare LATCH ASSEMBLY Bare |
1 | |
| 34 | 8M0178144 |
ACTUATOR Latch Assembly ACTUATOR Latch Assembly |
1 | |
| 35 | 8M0178147 |
WASHER PLAIN SS WASHER PLAIN SS |
2 | |
| 36 | 8M0178146 |
SCREW M4x35 SCREW M4x35 |
2 | |
| 37 | 8M0178145 |
ROD LINK Actuator ROD LINK Actuator |
1 | |
| 38 | 8M0178139 |
SWITCH ASSEMBLY Hood Latch SWITCH ASSEMBLY Hood Latch |
1 | |
| 39 | 8M0233522 |
ADAPTER CLIP KIT [3B331370] & Below ADAPTER CLIP KIT [3B331370] & Below |
1 | |
| 4 | 8M0178120 |
WASHER WASHER |
2 | |
| 40 | 8M0178140 |
SCREW M4X8 SCREW M4X8 |
2 | |
| 41 | 8M0178141 |
PLUG ASSEMBLY Hood Latch PLUG ASSEMBLY Hood Latch |
1 | |
| 42 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
4 | |
| 5 | 8M0142927 |
ВТУЛКА BUSHING |
4 | |
| 6 | 8M0178125 |
WASHER 8.5 X 16.5 X.787 WASHER 8.5 X 16.5 X.787 |
2 | |
| 7 | 8M0178124 |
HINGE Mounting Plate Assembly HINGE Mounting Plate Assembly |
1 | |
| 8 | 8M0178122 |
RETAINING RING RETAINING RING |
1 | |
| 9 | 8M0178126 |
HINGE HANDLE ASSEMBLY HINGE HANDLE ASSEMBLY |
1 |
