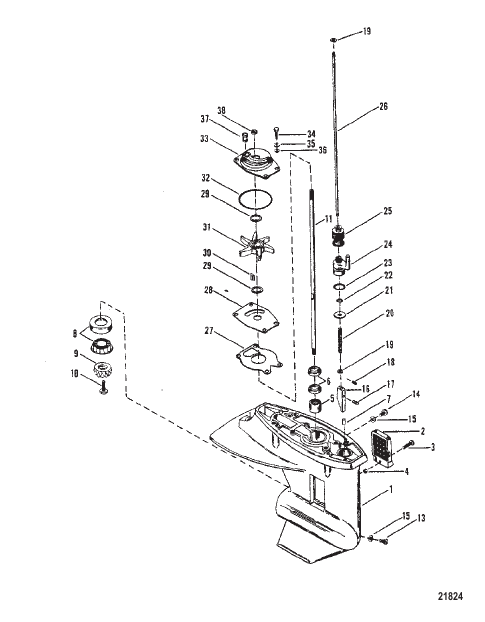

Gear Housing (Driveshaft)
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8669A13 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT) (BLACK) GEAR HOUSING ASSEMBLY (SHORT) (BLACK) |
1 | superseded |
| - | 8669A14 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) (BLACK) GEAR HOUSING ASSEMBLY (LONG) (BLACK) |
1 | superseded |
| - | 8669A15 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT) (GRAY) GEAR HOUSING ASSEMBLY (SHORT) (GRAY) |
1 | superseded |
| - | 8669A16 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) (GRAY) GEAR HOUSING ASSEMBLY (LONG) (GRAY) |
1 | superseded |
| - | 8669A23 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT) (TRACKER) GEAR HOUSING ASSEMBLY (SHORT) (TRACKER) |
1 | discontinued |
| - | 8669A24 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) (TRACKER) GEAR HOUSING ASSEMBLY (LONG) (TRACKER) |
1 | discontinued |
| - | 99157A2 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | superseded |
| - | 85090A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 41499A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 8669A21 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – черный (BLACK) GEAR HOUSING ASSEMBLY Basic-Black (BLACK) |
1 | superseded |
| 1 | 8669A22 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – серый (GRAY) GEAR HOUSING ASSEMBLY Basic-Gray (GRAY) |
1 | discontinued |
| 1 | 8669A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ (TRACKER) GEAR HOUSING ASSEMBLY (TRACKER) |
1 | superseded |
| 10 | 49908 |
ВИНТ (0.250-28 x 0.750) PINION GEAR SCREW (.250-28 x .750) PINION GEAR |
1 | discontinued |
| 11 | 99199 |
ВЕДУЩИЙ ВАЛ (SHORT SHAFT) DRIVESHAFT (SHORT SHAFT) |
1 | |
| 11 | 99198 |
ВЕДУЩИЙ ВАЛ (LONG SHAFT) DRIVESHAFT (LONG SHAFT) |
1 | discontinued |
| 13 | 14834A1 |
ВИНТ DRAIN - MAGNETIC SCREW DRAIN - MAGNETIC |
1 | superseded |
| 14 | 28634A1 |
КОМПЛЕКТ ВИНТОВ GREASE FILLER SCREW KIT GREASE FILLER |
1 | superseded |
| 15 | 805726 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Резина DRAIN AND FILLER SCREW O-RING Rubber DRAIN AND FILLER SCREW |
2 | superseded |
| 16 | 85562A1 |
КУЛАЧОК В СБОРЕ (NO STAMPING) CAM ASSEMBLY (NO STAMPING) |
1 | discontinued |
| 16 | 85562A2 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (STAMPED 85662--1) SHIFT CAM (STAMPED 85662--1) |
1 | |
| 17 | 85096 |
ШТИФТ Привод PIN Drive |
1 | |
| 18 | 85593 |
ШТИФТ (0.078 x 0.437) PIN (.078 x .437) |
1 | |
| 19 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 2 | 41134 |
ЭКРАН WATER INLET-STARBOARD SCREEN WATER INLET-STARBOARD |
1 | |
| 2 | 41133 |
ЭКРАН Впуск воды по левому борту SCREEN Water Inlet Port |
1 | |
| 20 | 93007 |
ПРУЖИНА SPRING |
1 | |
| 21 | 85091 |
ШАЙБА WASHER |
1 | |
| 22 | 85594 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.174) O-RING (.239 x .174) |
1 | |
| 23 | 35276 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.734 x 0.139) O-RING (.734 x .139) |
1 | |
| 24 | 93878 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 25 | 85552 |
ЧЕХОЛ SHIFT SHAFT BOOT SHIFT SHAFT |
1 | superseded |
| 26 | 85126 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ (SHORT SHAFT) SHIFT SHAFT (SHORT SHAFT) |
1 | discontinued |
| 26 | 86293 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ (LONG SHAFT) SHIFT SHAFT (LONG SHAFT) |
1 | discontinued |
| 27 | 993261 |
ПРОКЛАДКА WATER PUMP GASKET WATER PUMP |
1 | |
| 28 | 85083 |
ЦИФЕРБЛАТ FACE PLATE |
1 | |
| 29 | 86645 |
ШАЙБА IMPELLER WASHER IMPELLER |
2 | superseded |
| 3 | 40031112 |
ВИНТ (M5 x 40) SCREW (M5 x 40) |
1 | |
| 30 | 85119 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 31 | 850893 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 32 | 69202 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER PUMP O-RING WATER PUMP |
1 | |
| 33 | 99157A1 |
НАСОС В СБОРЕ Вода PUMP ASSEMBLY Water |
1 | superseded |
| 34 | 90883 |
ВИНТ (M5 x 16) (16MM)- Use with Reference #36 SCREW (M5 x 16) (16MM)- Use with Reference #36 |
4 | |
| 34 | 4000328 |
ВИНТ (M6 x 16) Use without Reference #36 SCREW (M6 x 16) Use without Reference #36 |
4 | superseded |
| 35 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) Use with Reference #36 WASHER (.203 x .406 x .040) Use with Reference #36 |
4 | |
| 35 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь Use without Reference #36 WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36 |
4 | superseded |
| 36 | 85095 |
ВТУЛКА Use with Reference #36 BUSHING Use with Reference #36 |
4 | superseded |
| 37 | 85090 |
УПЛОТНЕНИЕ WATER TUBE SEAL WATER TUBE |
1 | superseded |
| 38 | 86203 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО DRIVE SHAFT - RUBBER O-RING DRIVE SHAFT - RUBBER |
1 | |
| 4 | 400263 |
ГАЙКА (M5) SCREEN SCREW NUT (M5) SCREEN SCREW |
1 | discontinued |
| 5 | 41326 |
ПОДШИПНИК Ролик UPPER BEARING Roller UPPER |
1 | |
| 6 | 99325 |
УПЛОТНЕНИЕ GEAR HOUSING SEAL GEAR HOUSING |
2 | |
| 7 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) GEAR HOUSING PIN Dowel (.187 x .530) GEAR HOUSING |
2 | superseded |
| 8 | 98294A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | |
| 9 | 98302 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 |
