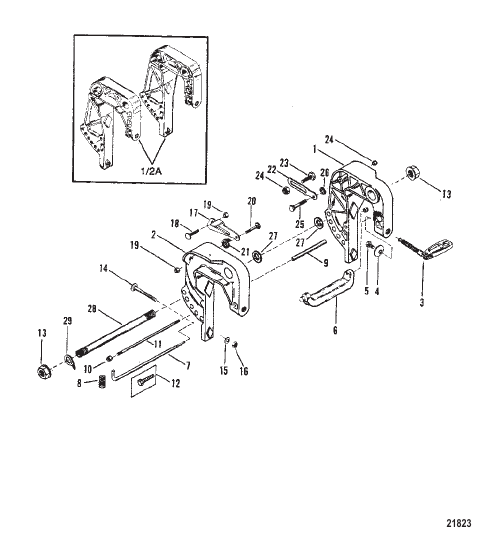

Clamp Bracket Assembly
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8794A7 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (BLACK) (5 Hole Stud Attaching) BRACKET ASSEMBLY Transom (PORT) (BLACK) (5 Hole Stud Attaching) |
1 | discontinued |
| 1 | 8794A8 |
КРОНШТЕЙН В СБОРЕ Транец (PORT)(GRAY) (5 Hole Stud Attaching) BRACKET ASSEMBLY Transom (PORT)(GRAY) (5 Hole Stud Attaching) |
1 | superseded |
| 1 | 8794A9 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (BLACK) (5 Hole Screw Attaching) BRACKET ASSEMBLY Transom (PORT) (BLACK) (5 Hole Screw Attaching) |
1 | |
| 1 | 8794A10 |
КРОНШТЕЙН В СБОРЕ Транец (PORT)(GRAY) (5 Hole Screw Attaching) BRACKET ASSEMBLY Transom (PORT)(GRAY) (5 Hole Screw Attaching) |
1 | discontinued |
| 1 | 8794A11 |
КРОНШТЕЙН В СБОРЕ Транец (PORT) (TRACKER) BRACKET ASSEMBLY Transom (PORT) (TRACKER) |
1 | discontinued |
| 1/2A | 8794A5 |
КРОНШТЕЙН В СБОРЕ Транец (PORT/STBD.) (BLACK) 6 HOLE BRACKET ASSEMBLY Transom (PORT/STBD.) (BLACK) 6 HOLE |
1 | discontinued |
| 1/2A | 8794A6 |
КРОНШТЕЙН В СБОРЕ Транец (PORT/STBD.) (GRAY) 6 HOLE BRACKET ASSEMBLY Transom (PORT/STBD.) (GRAY) 6 HOLE |
1 | discontinued |
| 10 | 400213 |
ГАЙКА (M8), нержавеющая сталь STUD ATTACHING NUT (M8) Stainless Steel STUD ATTACHING |
2 | |
| 11 | 99928 |
ШПИЛЬКА STUD ATTACHING STUD STUD ATTACHING |
1 | discontinued |
| 12 | 4000333 |
ВИНТ (M6 x 40) SCREW ATTACHING SCREW (M6 x 40) SCREW ATTACHING |
2 | |
| 13 | 93164 |
ГАЙКА (0.875) TILT TUBE NUT (.875) TILT TUBE |
2 | |
| 14 | 814945 |
ВИНТ (0.312-18 x 3.500), нержавеющая сталь CLAMP BRACKET TO TRANSOM SCREW (.312-18 x 3.500) Stainless Steel CLAMP BRACKET TO TRANSOM |
2 | |
| 15 | 67981 |
ШАЙБА CLAMP BRACKET BOLT WASHER CLAMP BRACKET BOLT |
2 | |
| 16 | 815848 |
ГАЙКА (0.312) CLAMP BRACKET BOLT NUT (.312) CLAMP BRACKET BOLT |
2 | |
| 17 | 96965 |
РЫЧАГ TILT STOP - STARBOARD STAR LEVER TILT STOP - STARBOARD STAR |
1 | |
| 18 | 41523 |
ВИНТ (0.250-28 x 1.00) LEVER TO SWIVEL BRACKET SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET |
1 | |
| 19 | 35045 |
ГАЙКА (0.250-28) TILT STOP LEVER SCREW NUT (.250-28) TILT STOP LEVER SCREW |
2 | superseded |
| 2 | 8796A5 |
КРОНШТЕЙН В СБОРЕ Транец (STBD.) (BLACK) (5 Hole Stud Attaching) BRACKET ASSEMBLY Transom (STBD.) (BLACK) (5 Hole Stud Attaching) |
1 | discontinued |
| 2 | 8796A6 |
КРОНШТЕЙН В СБОРЕ Транец (STBD.)(GRAY) (5 Hole Stud Attaching) BRACKET ASSEMBLY Transom (STBD.)(GRAY) (5 Hole Stud Attaching) |
1 | discontinued |
| 2 | 8796A7 |
КРОНШТЕЙН В СБОРЕ Транец (STBD.) (BLACK) (5 Hole Screw Attaching) BRACKET ASSEMBLY Transom (STBD.) (BLACK) (5 Hole Screw Attaching) |
1 | discontinued |
| 2 | 8796A8 |
КРОНШТЕЙН В СБОРЕ Транец (STBD.)(GRAY) (5 Hole Screw Attaching) BRACKET ASSEMBLY Transom (STBD.)(GRAY) (5 Hole Screw Attaching) |
1 | discontinued |
| 2 | 8796A9 |
КРОНШТЕЙН В СБОРЕ Транец (STBD.) (TRACKER) BRACKET ASSEMBLY Transom (STBD.) (TRACKER) |
1 | discontinued |
| 20 | 41524 |
ВИНТ (0.250-28 x 1.75) LEVER TO CLAMP BRACKET SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET |
1 | |
| 21 | 44581 |
ПРУЖИНА TILT STOP LEVER SCREW SPRING TILT STOP LEVER SCREW |
1 | |
| 22 | 90901 |
СКОБА TILT STOP - PORT SIDE STRAP TILT STOP - PORT SIDE |
1 | |
| 23 | 41523 |
ВИНТ (0.250-28 x 1.00) STRAP TO SWIVEL BRACKET SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET |
1 | |
| 24 | 35045 |
ГАЙКА (0.250-28) TILT STOP STRAP SCREW NUT (.250-28) TILT STOP STRAP SCREW |
2 | superseded |
| 25 | 41524 |
ВИНТ (0.250-28 x 1.75) STRAP TO CLAMP BRACKET SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET |
1 | |
| 26 | 31030 |
ВОЛНИСТАЯ ШАЙБА TILT STOP STRAP SCREW WAVE WASHER TILT STOP STRAP SCREW |
1 | |
| 27 | 71421 |
ШАЙБА Нейлон TILT TUBE (NYLON) WASHER Nylon TILT TUBE (NYLON) |
2 | |
| 28 | 41171 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 29 | 30954 |
ЗАЖИМ SAFETY CLIP SAFETY |
1 | superseded |
| 3 | 92767A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (14 мм) THUMB SCREW ASSEMBLY (14 mm) |
2 | |
| 3 | 92767A3 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (16 мм) THUMB SCREW ASSEMBLY (16 mm) |
2 | |
| 4 | 73719 |
ШАЙБА THUMB SCREW WASHER THUMB SCREW |
2 | discontinued |
| 5 | 768041 |
ВИНТ WASHER ATTACHING SCREW WASHER ATTACHING |
2 | superseded |
| 6 | 41042 |
РУКОЯТКА CARRYING HANDLE CARRYING |
1 | |
| 7 | 99929A1 |
ПАЛЕЦ В СБОРЕ Наклон USE WITH 6 HOLE BRACKET PIN ASSEMBLY Tilt USE WITH 6 HOLE BRACKET |
1 | discontinued |
| 7 | 56373A2 |
ПАЛЕЦ В СБОРЕ Наклон USE WITH 5 HOLE BRACKET PIN ASSEMBLY Tilt USE WITH 5 HOLE BRACKET |
1 | |
| 8 | 92995 |
ПРУЖИНА USE WITH 5 HOLE BRACKET SPRING USE WITH 5 HOLE BRACKET |
1 | |
| 9 | 41041 |
ПРОСТАВКА STUD ATTACHING SPACER STUD ATTACHING |
1 | discontinued |
| 9 | 818538 |
ПРОСТАВКА SCREW ATTACHING SPACER SCREW ATTACHING |
1 |
