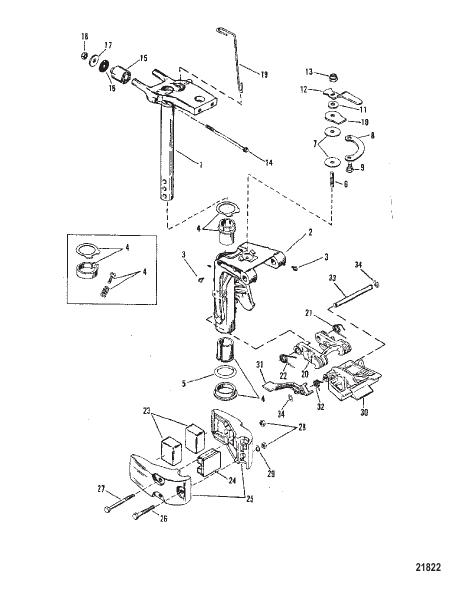

Swivel Bracket Assembly
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 41499A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
2 | superseded |
| 1 | 822238A2 |
ПОВОРОТНАЯ ГОЛОВКА (BLACK) DESIGN I - CO-PILOT SWIVEL HEAD (BLACK) DESIGN I - CO-PILOT |
1 | superseded |
| 1 | 822238A3 |
ПОВОРОТНАЯ ГОЛОВКА (GRAY) DESIGN I - CO-PILOT SWIVEL HEAD (GRAY) DESIGN I - CO-PILOT |
1 | superseded |
| 1 | 822238A5 |
ПОВОРОТНАЯ ГОЛОВКА (BLACK) DESIGN II - CO-PILOT SWIVEL HEAD (BLACK) DESIGN II - CO-PILOT |
1 | superseded |
| 1 | 822238A6 |
ПОВОРОТНАЯ ГОЛОВКА (GRAY) DESIGN II - CO-PILOT SWIVEL HEAD (GRAY) DESIGN II - CO-PILOT |
1 | superseded |
| 1 | 822238A7 |
ПОВОРОТНАЯ ГОЛОВКА (TRACKER) DESIGN II - CO-PILOT SWIVEL HEAD (TRACKER) DESIGN II - CO-PILOT |
1 | superseded |
| 10 | 821957 |
ТОРМОЗНАЯ ПЛАСТИНА DESIGN II - CO-PILOT BRAKE PLATE DESIGN II - CO-PILOT |
1 | |
| 11 | 29330 |
ШАЙБА DESIGN II - CO-PILOT WASHER DESIGN II - CO-PILOT |
1 | |
| 12 | 821959 |
РУКОЯТКА DESIGN II - CO-PILOT HANDLE DESIGN II - CO-PILOT |
1 | |
| 13 | 34863 |
ГАЙКА (.375-24) DESIGN II - CO-PILOT NUT (.375-24) DESIGN II - CO-PILOT |
1 | superseded |
| 14 | 12516 |
ВИНТ (M8 x 133.35) UPPER MOUNT SCREW (M8 x 133.35) UPPER MOUNT |
2 | superseded |
| 15 | 14894 |
КРЕПЛЕНИЕ UPPER MOUNT UPPER |
2 | discontinued |
| 16 | 85172 |
ШАЙБА RUBBER - UPPER MOUNT SCREW WASHER RUBBER - UPPER MOUNT SCREW |
2 | |
| 17 | 43430 |
ШАЙБА UPPER MOUNT SCREW WASHER UPPER MOUNT SCREW |
2 | |
| 18 | 400213 |
ГАЙКА (M8), нержавеющая сталь UPPER MOUNT SCREW NUT (M8) Stainless Steel UPPER MOUNT SCREW |
2 | |
| 19 | 16554 |
ШТОК REVERSE HOOK ROD REVERSE HOOK |
1 | discontinued |
| 2 | 8692A13 |
ПОВОРОТНЫЙ КРОНШТЕЙН (BLACK) DESIGN I - CO-PILOT SWIVEL BRACKET (BLACK) DESIGN I - CO-PILOT |
1 | superseded |
| 2 | 8692A14 |
ПОВОРОТНЫЙ КРОНШТЕЙН (GRAY) DESIGN I - CO-PILOT SWIVEL BRACKET (GRAY) DESIGN I - CO-PILOT |
1 | superseded |
| 2 | 822237A3 |
ПОВОРОТНЫЙ КРОНШТЕЙН (BLACK) DESIGN II - CO-PILOT SWIVEL BRACKET (BLACK) DESIGN II - CO-PILOT |
1 | |
| 2 | 822237A4 |
ПОВОРОТНЫЙ КРОНШТЕЙН (GRAY) DESIGN II - CO-PILOT SWIVEL BRACKET (GRAY) DESIGN II - CO-PILOT |
1 | discontinued |
| 2 | 822237A5 |
ПОВОРОТНЫЙ КРОНШТЕЙН (TRACKER) DESIGN II - CO-PILOT SWIVEL BRACKET (TRACKER) DESIGN II - CO-PILOT |
1 | superseded |
| 20 | 98830A2 |
КРЮК В СБОРЕ REVERSE LOCK HOOK ASSEMBLY REVERSE LOCK |
1 | discontinued |
| 21 | 96018 |
ПРУЖИНА REVERSE HOOK - PORT SPRING REVERSE HOOK - PORT |
1 | |
| 22 | 97427 |
ПРУЖИНА (STARBOARD - ELECTRIC) SPRING (STARBOARD - ELECTRIC) |
1 | |
| 22 | 12755 |
ПРУЖИНА (STBD - MANUAL/ELECTRIC HANDLE) SPRING (STBD - MANUAL/ELECTRIC HANDLE) |
1 | superseded |
| 23 | 85122 |
КРЕПЛЕНИЕ LOWER MOUNT LOWER |
2 | superseded |
| 24 | 85123 |
УПОР Передний BUMPER Front |
1 | superseded |
| 25 | 17232A1 |
КРЫШКА LOWER MOUNT (BLACK) COVER LOWER MOUNT (BLACK) |
1 | |
| 25 | 17232A2 |
КРЫШКА LOWER MOUNT (GRAY) COVER LOWER MOUNT (GRAY) |
1 | discontinued |
| 25 | 17232A3 |
КРЫШКА LOWER MOUNT (TRACKER) COVER LOWER MOUNT (TRACKER) |
1 | discontinued |
| 26 | 4009259 |
ВИНТ (60 MM) SCREW (60 MM) |
1 | superseded |
| 27 | 4009263 |
ВИНТ (100 MM) SCREW (100 MM) |
2 | superseded |
| 28 | 400213 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
3 | |
| 29 | 36001 |
ШАЙБА WASHER |
3 | |
| 3 | 74036 |
ФИТИНГ Смазка DESIGN I - CO-PILOT FITTING Grease DESIGN I - CO-PILOT |
3 | superseded |
| 3 | 74036 |
ФИТИНГ Смазка DESIGN II - CO-PILOT FITTING Grease DESIGN II - CO-PILOT |
3 | superseded |
| 30 | 12756 |
КРОНШТЕЙН BRACKET |
1 | |
| 31 | 12758 |
РЫЧАГ CONTROL LEVER CONTROL |
1 | |
| 32 | 12754 |
ПРУЖИНА SPRING |
1 | |
| 33 | 13195 |
ШТИФТ PIN |
1 | |
| 34 | 13194 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 4 | 11139A2 |
ФИКСАТОР В СБОРЕ DESIGN I - CO-PILOT CLAMP ASSEMBLY DESIGN I - CO-PILOT |
1 | |
| 4 | 85154A1 |
КОМПЛЕКТ ВТУЛОК DESIGN II - CO-PILOT BUSHING KIT DESIGN II - CO-PILOT |
1 | |
| 5 | 86993 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SWIVEL TUBE DESIGN I - CO-PILOT O-RING SWIVEL TUBE DESIGN I - CO-PILOT |
1 | |
| 5 | 86993 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО DESIGN II - CO-PILOT O-RING DESIGN II - CO-PILOT |
1 | |
| 6 | 821961 |
ШТОК DESIGN II - CO-PILOT ROD DESIGN II - CO-PILOT |
1 | |
| 7 | 8165621 |
ДИСК DESIGN II - CO-PILOT DISC DESIGN II - CO-PILOT |
2 | |
| 8 | 821958 |
ПЛАСТИНА Поворотная головка DESIGN II - CO-PILOT PLATE Swivel Head DESIGN II - CO-PILOT |
1 | superseded |
| 9 | 768041 |
ВИНТ DESIGN II - CO-PILOT SCREW DESIGN II - CO-PILOT |
2 | superseded |
