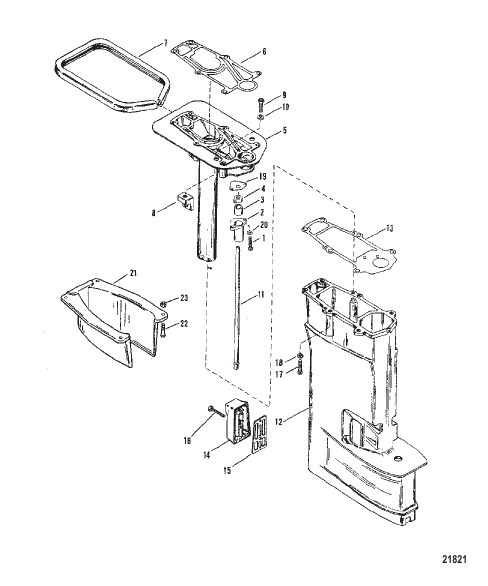

Driveshaft Housing Assembly
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 41499A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 400035 |
ВИНТ (M5 x 16) (Use W/Reference #20) SCREW (M5 x 16) (Use W/Reference #20) |
2 | discontinued |
| 1 | 40011107 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 10 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь (USE WHERE APPLICABLE) WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) |
2 | superseded |
| 11 | 85116 |
ТРУБА Вода (SHORT SHAFT) TUBE Water (SHORT SHAFT) |
1 | discontinued |
| 11 | 86292 |
ТРУБА Вода (LONG SHAFT) TUBE Water (LONG SHAFT) |
1 | discontinued |
| 12 | 9097A2 |
КОРПУС В СБОРЕ Карданный вал (SHORT SHAFT) (BLACK) HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) |
1 | superseded |
| 12 | 9098A2 |
КОРПУС В СБОРЕ Карданный вал (LONG SHAFT) (BLACK) HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) |
1 | superseded |
| 12 | 9097A3 |
КОРПУС В СБОРЕ Карданный вал (SHORT SHAFT) (GRAY) HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) |
1 | superseded |
| 12 | 9098A3 |
КОРПУС В СБОРЕ Карданный вал (LONG SHAFT) (GRAY) HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) |
1 | superseded |
| 12 | 9097A4 |
КОРПУС В СБОРЕ Карданный вал (SHORT) (TRACKER) HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) |
1 | discontinued |
| 12 | 9098A4 |
КОРПУС В СБОРЕ Карданный вал (LONG) (TRACKER) HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) |
1 | superseded |
| 13 | 433373 |
ПРОКЛАДКА DRIVE SHAFT HOUSING GASKET DRIVE SHAFT HOUSING |
1 | superseded |
| 14 | 14534 |
КРЫШКА IDLE RELIEF COVER IDLE RELIEF |
1 | |
| 15 | 14621 |
ПРОКЛАДКА COVER GASKET COVER |
1 | |
| 16 | 14742 |
ВИНТ (0.250-20 x 1.25) COVER SCREW (.250-20 x 1.25) COVER |
1 | |
| 17 | 4000360 |
ВИНТ DRIVE SHAFT HOUSING TO BLOCK (60 MM) SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) |
6 | superseded |
| 18 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) DRIVE SHAFT HOUSING SCREW WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW |
6 | |
| 19 | 19583 |
ПРОКЛАДКА (USE WHERE APPLICABLE) GASKET (USE WHERE APPLICABLE) |
1 | discontinued |
| 2 | 96248A1 |
КОРПУС В СБОРЕ WATER TUBE HOUSING ASSEMBLY WATER TUBE |
1 | discontinued |
| 20 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь HOUSING SCREW WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW |
2 | |
| 21 | 17258T |
КРЫШКА ДИФФЕРЕНТА (BLACK) TRIM COVER (BLACK) |
1 | discontinued |
| 21 | 17258T6 |
КРЫШКА ДИФФЕРЕНТА (GRAY) TRIM COVER (GRAY) |
1 | discontinued |
| 21 | 17258F4 |
КРЫШКА ДИФФЕРЕНТА (TRACKER) TRIM COVER (TRACKER) |
1 | discontinued |
| 22 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь TRIM COVER SCREW (M6 x 20) Stainless Steel TRIM COVER |
4 | superseded |
| 23 | 401196 |
ГАЙКА (M6) TRIM COVER SCREW NUT (M6) TRIM COVER SCREW |
4 | |
| 3 | 25329 |
УПЛОТНЕНИЕ WATER TUBE SEAL WATER TUBE |
1 | |
| 4 | 96247 |
ПРОСТАВКА WATER TUBE SPACER WATER TUBE |
1 | superseded |
| 5 | 99702A6 |
ПЛАСТИНА ПЕРЕХОДНИКА В СБОРЕ ADAPTER PLATE ASSEMBLY |
1 | superseded |
| 6 | 416704 |
ПРОКЛАДКА ADAPTOR PLATE GASKET ADAPTOR PLATE |
1 | superseded |
| 7 | 158662 |
УПЛОТНЕНИЕ ADAPTOR PLATE SEAL ADAPTOR PLATE |
1 | discontinued |
| 8 | 41211 |
КРОНШТЕЙН UPPER MOUNT BRACKET UPPER MOUNT |
2 | |
| 9 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь (Use Without Reference #10) SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) |
2 | superseded |
| 9 | 40007128 |
ВИНТ (M6 x 20) (Use With Reference #10) SCREW (M6 x 20) (Use With Reference #10) |
2 | discontinued |
