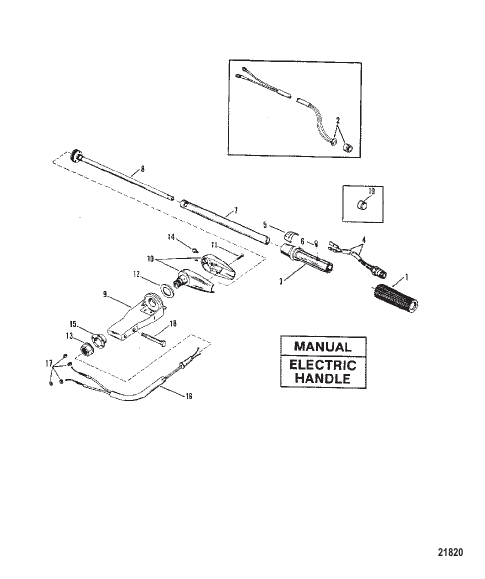

Steering Handle Assembly (Manual/Electric Handle)
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 99589 |
РУКОЯТКА GRIP |
1 | superseded |
| 10 | NLA |
Не поставляется Bracket (BLACK) (Order 43447A3) (Reference 13 is 1 Inch -14) No Longer Available Bracket (BLACK) (Order 43447A3) (Reference 13 is 1 Inch -14) |
1 | |
| 10 | NLA |
Не поставляется Bracket (GRAY) (Order 43447A4) (Reference 13 is 1 Inch -14) No Longer Available Bracket (GRAY) (Order 43447A4) (Reference 13 is 1 Inch -14) |
1 | |
| 10 | 44397A15 |
КРОНШТЕЙН В СБОРЕ (BLACK) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY (BLACK) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 10 | 44397A16 |
КРОНШТЕЙН В СБОРЕ (GRAY) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY (GRAY) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 10 | 44397A22 |
КРОНШТЕЙН В СБОРЕ (TRACKER) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY (TRACKER) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 11 | 4005688 |
ВИНТ (M4 x 20) (Reference 13 is 1 Inch -14) SCREW (M4 x 20) (Reference 13 is 1 Inch -14) |
AR | discontinued |
| 11 | 40019109 |
ВИНТ (M5 x 25) (Reference 13 is 1 Inch -14) SCREW (M5 x 25) (Reference 13 is 1 Inch -14) |
AR | discontinued |
| 11 | 40011110 |
ВИНТ (M5 x 30), нержавеющая сталь (Reference 13 is 1.125 Inch -12) SCREW (M5 x 30) Stainless Steel (Reference 13 is 1.125 Inch -12) |
3 | |
| 12 | 177821 |
ШАЙБА 14 WASHER 14 |
1 | discontinued |
| 12 | 177821 |
ШАЙБА (Reference 13 is 1.125 Inch -12) WASHER (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 13 | 90068F2 |
ГАЙКА (Black) (Reference 13 is 1 Inch -14) NUT (Black) (Reference 13 is 1 Inch -14) |
1 | superseded |
| 13 | 90068F3 |
ГАЙКА (1.00-14) (Gray) (Reference 13 is 1 Inch -14) NUT (1.00-14) (Gray) (Reference 13 is 1 Inch -14) |
1 | superseded |
| 13 | 816880 |
ГАЙКА (Reference 13 is 1.125 Inch -12) NUT (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 14 | 74036 |
ФИТИНГ Смазка (Reference 13 is 1 Inch -14) FITTING Grease (Reference 13 is 1 Inch -14) |
1 | superseded |
| 14 | 74036 |
ФИТИНГ Смазка (Reference 13 is 1.125 Inch -12) FITTING Grease (Reference 13 is 1.125 Inch -12) |
1 | superseded |
| 15 | 85973 |
ВТУЛКА BUSHING |
1 | discontinued |
| 15 | 817026 |
ВТУЛКА (Reference 13 is 1.125 Inch -12) BUSHING (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 16 | 432421 |
КАБЕЛЬ Дроссельная заслонка (TILLER HANDLE SHIFT) CABLE Throttle (TILLER HANDLE SHIFT) |
1 | |
| 16 | 432422 |
КАБЕЛЬ В СБОРЕ Дроссельная заслонка (SIDE SHIFT) CABLE ASSEMBLY Throttle (SIDE SHIFT) |
1 | |
| 17 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
4 | |
| 18 | 4000384 |
ВИНТ (M10 x 80) SCREW (M10 x 80) |
2 | |
| 19 | 817634 |
ПРОБКА (SEA PRO/MARATHON 25/SUPER 15) PLUG (SEA PRO/MARATHON 25/SUPER 15) |
1 | discontinued |
| 2 | NLA |
Не поставляется Stop Switch (Design I - Order Kit 87-823609A10 - Reference 3) No Longer Available Stop Switch (Design I - Order Kit 87-823609A10 - Reference 3) |
1 | |
| 3 | 823609A10 |
КОМПЛЕКТ ПЕРЕКЛЮЧАТЕЛЯ Стопорный – рукоятка газа SWITCH KIT Stop - Throttle Handle |
1 | |
| 4 | 823609A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп (DESIGN II -W/METAL LOCK RING) SWITCH ASSEMBLY Stop (DESIGN II -W/METAL LOCK RING) |
1 | superseded |
| 5 | 140121 |
НАКЛЕЙКА (APPLY ON TUBE) DECAL (APPLY ON TUBE) |
1 | |
| 5 | 140122 |
НАКЛЕЙКА (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY) DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY) |
1 | |
| 5 | 140123 |
НАКЛЕЙКА (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY) DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY) |
1 | |
| 5 | 140124 |
НАКЛЕЙКА (INTERNATIONAL SYMBOLS) DECAL (INTERNATIONAL SYMBOLS) |
1 | |
| 6 | 37342 |
ВИНТ (№12-14 x 0.375) SCREW (#12-14 x .375) |
1 | discontinued |
| 7 | 99333A2 |
ТРУБА В СБОРЕ TUBE ASSEMBLY |
1 | discontinued |
| 8 | 975501 |
ТРУБА В СБОРЕ TUBE ASSEMBLY |
1 | discontinued |
| 9 | 43447A1 |
КРОНШТЕЙН В СБОРЕ (BLACK) (Reference 13 is 1 Inch -14) BRACKET ASSEMBLY (BLACK) (Reference 13 is 1 Inch -14) |
1 | superseded |
| 9 | 43447A2 |
КРОНШТЕЙН В СБОРЕ (GRAY) (Reference 13 is 1 Inch -14) BRACKET ASSEMBLY (GRAY) (Reference 13 is 1 Inch -14) |
1 | superseded |
| 9 | 43447A3 |
КРОНШТЕЙН В СБОРЕ Рулевой механизм (Black) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY Steering (Black) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 9 | 43447A4 |
КРОНШТЕЙН В СБОРЕ Рулевой механизм (Gray) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY Steering (Gray) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
| 9 | 43447A5 |
КРОНШТЕЙН В СБОРЕ Рулевой механизм (Tracker) (Reference 13 is 1.125 Inch -12) BRACKET ASSEMBLY Steering (Tracker) (Reference 13 is 1.125 Inch -12) |
1 | discontinued |
