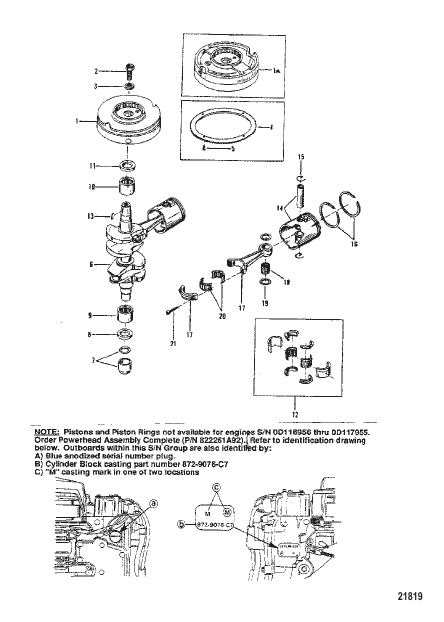

Crankshaft, Pistons and Flywheel
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90885A88 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ COMPLETE POWERHEAD ASSEMBLY COMPLETE |
1 | superseded |
| - | 822261A92 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0D116956] THRU [0D117955] POWERHEAD ASSEMBLY [0D116956] THRU [0D117955] |
1 | superseded |
| - | 41499A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 818354A2 |
МАХОВИК (DESIGN II) FLYWHEEL (DESIGN II) |
1 | superseded |
| 10 | 85114 |
ПОДШИПНИК Ролик – верхний UPPER BEARING Roller - Upper UPPER |
1 | superseded |
| 11 | 859741 |
УПЛОТНЕНИЕ Масло CRANKSHAFT-UPPER SEAL Oil CRANKSHAFT-UPPER |
1 | |
| 12 | 86992A3 |
БЛОК ПОДШИПНИКА CENTER MAIN BEARING ASSEMBLY CENTER MAIN |
1 | superseded |
| 13 | 20094 |
КЛЮЧ Сегментная шпонка FLYWHEEL DRIVE KEY Woodruff FLYWHEEL DRIVE |
1 | |
| 14 | 9104A17 |
ПОРШЕНЬ В СБОРЕ (See Note) PISTON ASSEMBLY (See Note) |
2 | superseded |
| 15 | 47276 |
СТОПОРНОЕ КОЛЬЦО PISTON PIN (See Note) LOCK RING PISTON PIN (See Note) |
4 | superseded |
| 16 | 17286A12 |
НАБОР КОЛЕЦ Поршень (See Note) RING SET Piston (See Note) |
1 | superseded |
| 17 | 8835A2 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
2 | superseded |
| 18 | 98295 |
ПОДШИПНИК Игла PISTON END BEARING Needle PISTON END |
54 | |
| 19 | 42025 |
ПОДШИПНИК LOCATING - NEEDLE BEARING BEARING LOCATING - NEEDLE BEARING |
4 | superseded |
| 1A | 8274A6 |
МАХОВИК В СБОРЕ (DESIGN I) FLYWHEEL ASSEMBLY (DESIGN I) |
1 | superseded |
| 2 | 97359A1 |
ВИНТ В СБОРЕ FLYWHEEL TO CRANKSHAFT SCREW ASSEMBLY FLYWHEEL TO CRANKSHAFT |
1 | discontinued |
| 20 | 41620A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
2 | superseded |
| 21 | 4008225 |
ВИНТ (M6 x 25) (METRIC THREAD) SCREW (M6 x 25) (METRIC THREAD) |
4 | discontinued |
| 21 | F1012 |
ВИНТ (STANDARD THREAD) SCREW (STANDARD THREAD) |
4 | discontinued |
| 3 | 86496 |
ШАЙБА FLYWHEEL SCREW WASHER FLYWHEEL SCREW |
1 | |
| 4 | 99301 |
ВЕНЦОВАЯ ШЕСТЕРНЯ FLYWHEEL -ELECTRIC RING GEAR FLYWHEEL -ELECTRIC |
1 | |
| 5 | 40039106 |
ВИНТ (M5 x 13) RING GEAR TO FLYWHEEL -ELECTRIC SCREW (M5 x 13) RING GEAR TO FLYWHEEL -ELECTRIC |
4 | superseded |
| 6 | 8978A2 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | superseded |
| 7 | 822445A1 |
ИЗНОСОСТОЙКАЯ ЛЕГКОСМЕННАЯ ГИЛЬЗА WEAR SLEEVE |
1 | |
| 8 | 85107 |
УПЛОТНЕНИЕ Масло CRANKSHAFT - LOWER SEAL Oil CRANKSHAFT - LOWER |
1 | |
| 9 | 85113 |
ПОДШИПНИК Ролик LOWER BEARING Roller LOWER |
1 | superseded |
